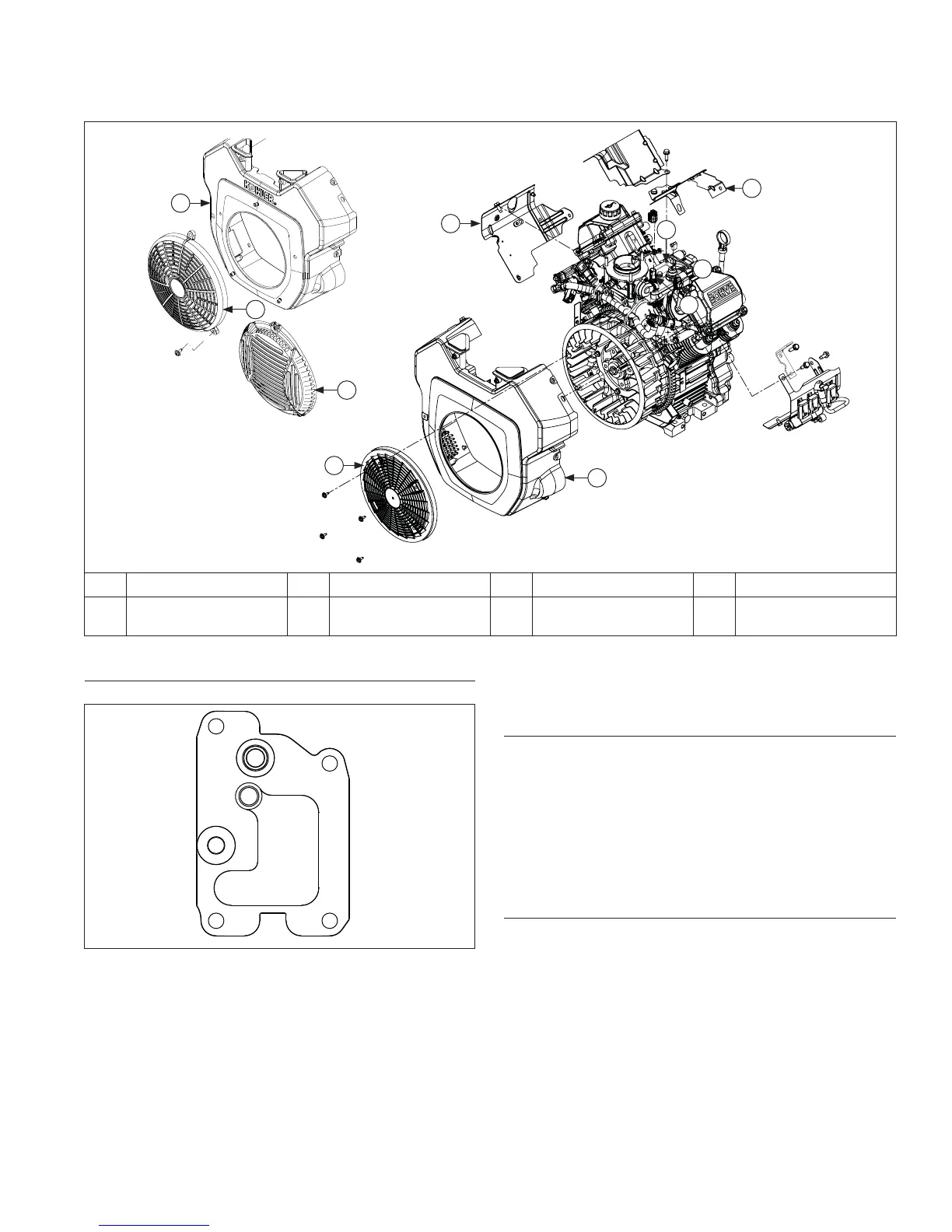

External Engine Components
A
C
D
G
B
E
F
B
H
H
A Debris Screen B Blower Housing C Outer Baffl e D Breather Cover
E Oil Sentry
TM
F
Oil Temperature
Sensor
G Inner Baffl e H Debris Screen Guard
Install Breather Cover and Inner Baffl es
Torque Sequence
1&5
2
3
4
1. Be sure sealing surfaces of crankcase and breather
cover are clean of old gasket material. Do not scrape
surfaces as this could result in leakage. Use a new
gasket when installing breather cover.
2. Check to make sure there are no nicks or burrs on
sealing surfaces.
3. Position breather gasket and cover on crankcase.
Install screws in locations 3 and 4. Finger tighten at
this time.
4. Install inner baffl es using remaining screws and
fi nger tighten. Do not torque screws at this time; they
will be tightened after blower housing
Install Oil Temperature Sensor (ECH EFI)
NOTE: Ensure part is clean, undamaged and free of
debris and make sure electrical connector has
seal in place.
1. Lightly lubricate oil temperature sensor O-ring and
install oil temperature sensor into breather cover.
2. Torque sensor to 7.3 N·m (65 in. lb.).
3. Push electrical connector on oil temperature sensor
making sure a good connection is made.
Install Oil Sentry™ (If So Equipped)
1. Apply pipe sealant with Tefl on® (Loctite® 592™
PST
®
Thread Sealant or equivalent) to threads of Oil
Sentry
™
switch and install it into breather cover.
Torque to 4.5 N·m (40 in. lb.).
2. Connect wire lead (green) to Oil Sentry
™
terminal.
Reassembly
13124 690 01 Rev. K KohlerEngines.com
