METHOD FOR MEASURING TRACK ROLLER DIAMETER
1.

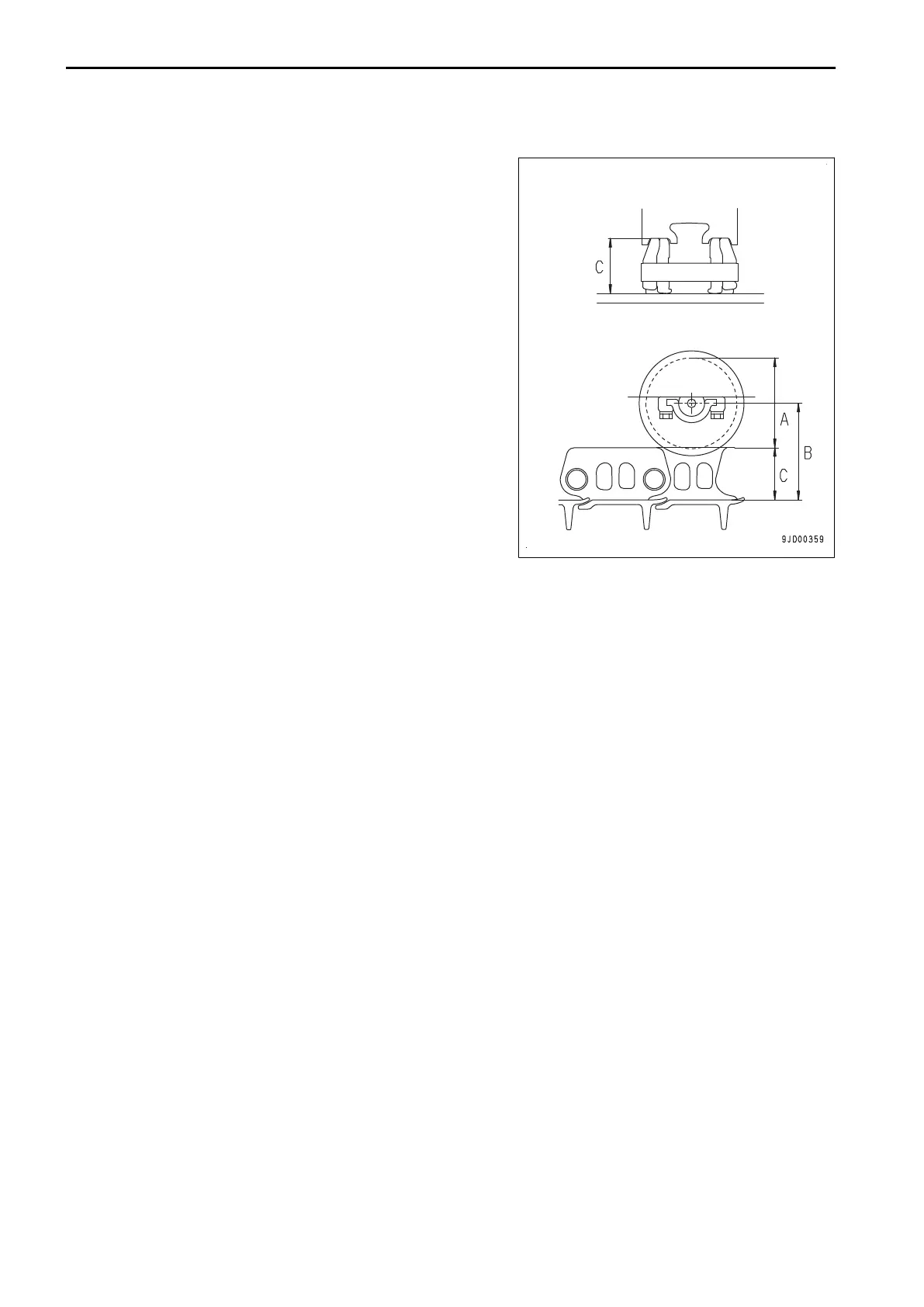

Measure the link tread (dimension C) as shown in the fig-
ure.
2.
Stop the machine at a position where the link tread, at
which dimension C was measured, is perfectly in contact
with the roller tread.
3.
Measure dimension B.
4.
Calculate outside diameter of the tread (dimension A).
A = (B - C) x 2
• Standard dimension (h): 210 mm (8.3 in)
• Repairable limit: 172 mm (6.8 in)
