3)

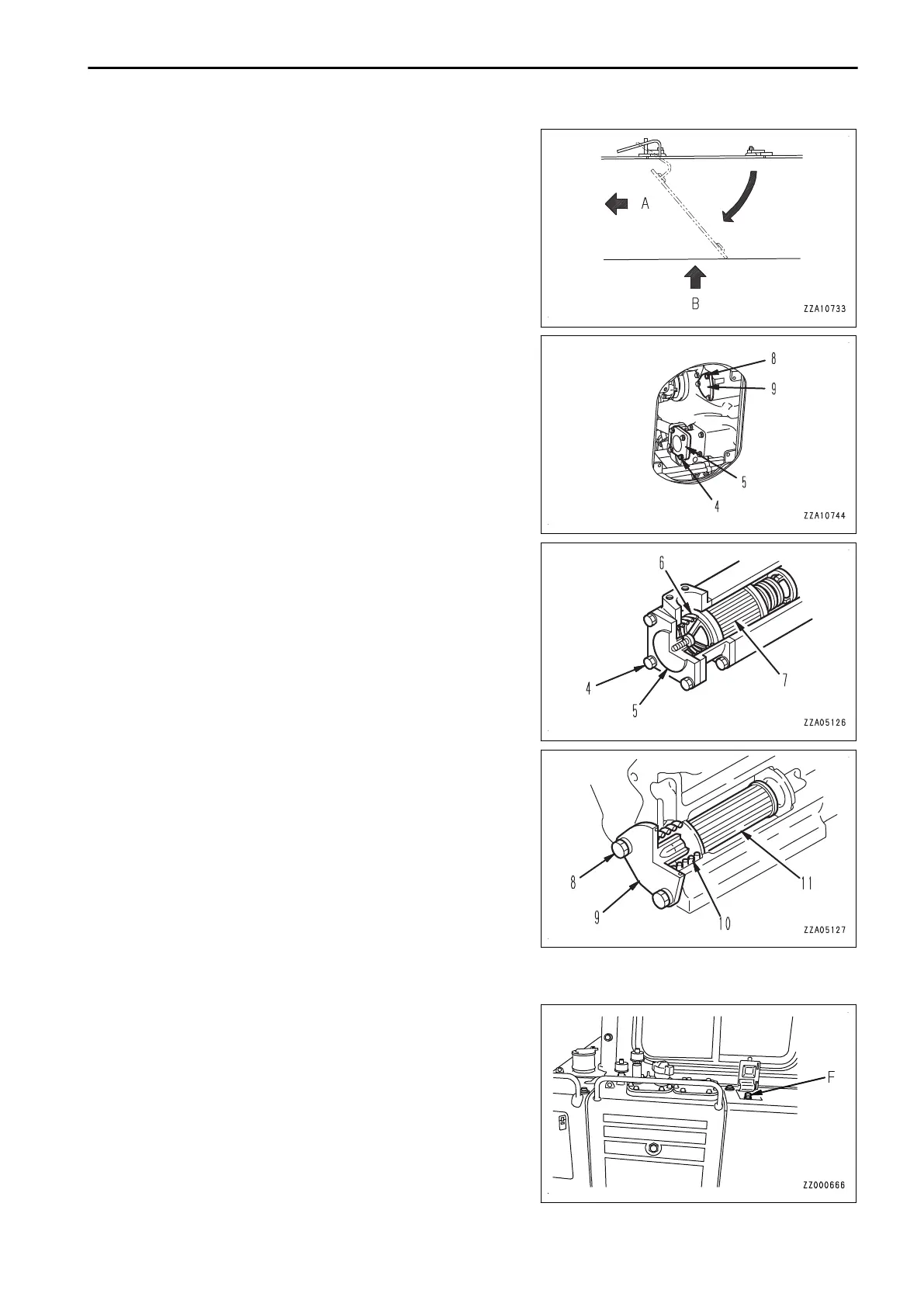

Lower and open the cover gradually.
(A) Front of machine
(B) Dangerous place
6.
Place the oil container to catch oil under cover (5).
7.
Loosen mounting bolts (4) of the power train pump strain-
er, and remove cover (5).
8.
Take out spring (6) and then take out strainer (7).
9.
Remove all dirt from strainer (7), then wash it in clean die-
sel fuel or flushing oil.
At this time, clean the case interior and the removed parts
as well.
10.
Loosen mounting bolts (8) of the scavenging pump strain-
er, and remove cover (9).
11.
Take out spring (10) and then take out strainer (11).
12.
Remove all dirt from strainer (11), then wash it in clean die-
sel fuel or flushing oil.
At this time, clean the case interior and the removed parts
as well.
13.
Install the spring and strainer.
If the spring or strainer is damaged, replace them.
14.
Replace the power train oil filter element.
For detail, see “METHOD FOR REPLACING ELEMENT ON POWER TRAIN OIL FILTER (4-67)”.
15.
Open the inspection window on the right side of the ma-
chine.
16.
Add the refill capacity of oil through oil filler port (F).
17.
After adding the oil, check that the oil level is proper.
For the checking method, see “METHOD FOR CHECKING
OIL LEVEL IN POWER TRAIN CASE AND ADDING OIL
(3-164)”.
18.
Close the inspection window on the right side of the ma-
chine.
MAINTENANCE MAINTENANCE PROCEDURE
4-71
