MACHINE MONITOR EQUIPMENT NAME

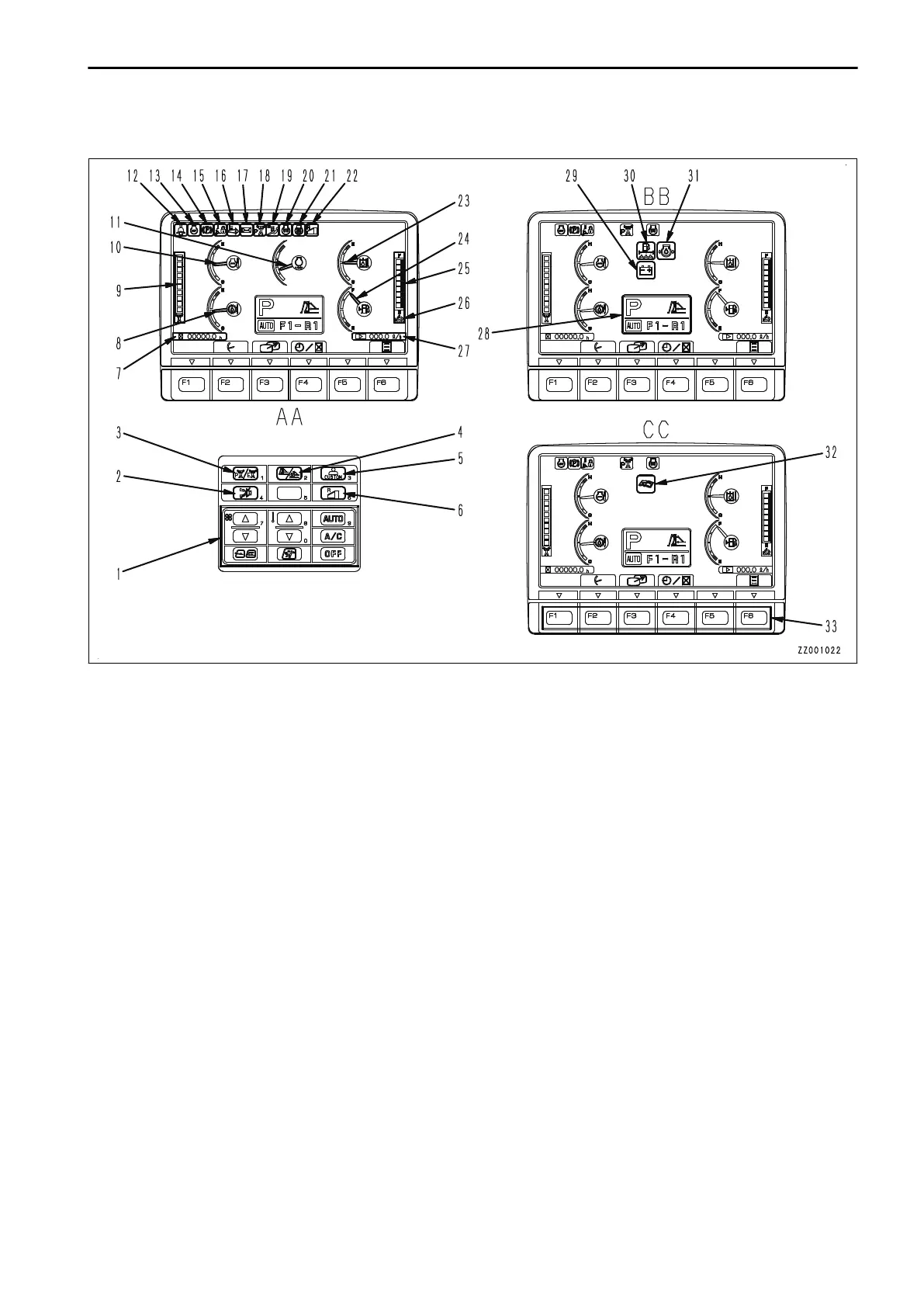

AA: Standard screen, BB: Check before starting screen, CC: Maintenance time warning screen
(1) Air conditioner control switch
(2) Buzzer cancel switch
(3) Operation mode selector switch
(4) Gear-shift mode selector switch
(5) Customize switch
(6) Reverse travel slow mode switch
(7) Service meter/clock
(8) Power train oil temperature gauge
(9) ECO gauge or traction force gauge
(10) Engine coolant temperature gauge
(11) Multi-gauge
(12) Seat belt caution lamp
(13) Engine stop pilot lamp
(14) Parking brake pilot lamp
(15) Work equipment lock pilot lamp
(16) Aftertreatment devices regeneration pilot lamp or
Aftertreatment devices regeneration disable pilot
lamp
(17) Message display
(18) Operation mode pilot lamp
(19) Air conditioner pilot lamp
(20) Preheating pilot lamp
(21) Fan reverse pilot lamp
(22) Reverse travel slow mode pilot lamp
(23) Hydraulic oil temperature gauge
(24) Fuel gauge
(25) AdBlue/DEF level gauge
(26) AdBlue/DEF level caution lamp
(27) Fuel consumption gauge
(28) Gear speed display part
(29) Charge level caution lamp
(30) Water separator caution lamp
(31) Engine oil pressure caution lamp
(32) Maintenance time caution lamp
(33) Function switches (F1 to F6)
REMARK
The above figure does not show all of the caution lamp symbols. For details of the caution lamps, see “WARN-
ING DISPLAY (3-15)”.
