OPERATION OPERATION
3-112
ADUSTING POSTURE OF WORK EQUIPMENT 3
ADJUST ANGLE OF BLADE EDGE 3
(Power tiltdozer only)
WARNING
It is dangerous if the work equipment moves by mistake when adjusting angle of the blade edge. Set the
work equipment in a stable condition, then stop the engine and lock the work equipment securely with the
work equipment lock lever.
Adjust the angle (θ) of the blade edge to match the type of soil.
The angle of the blade edge of the power angle, power tiltdozer cannot be adjusted.
POWER TILTDOZER

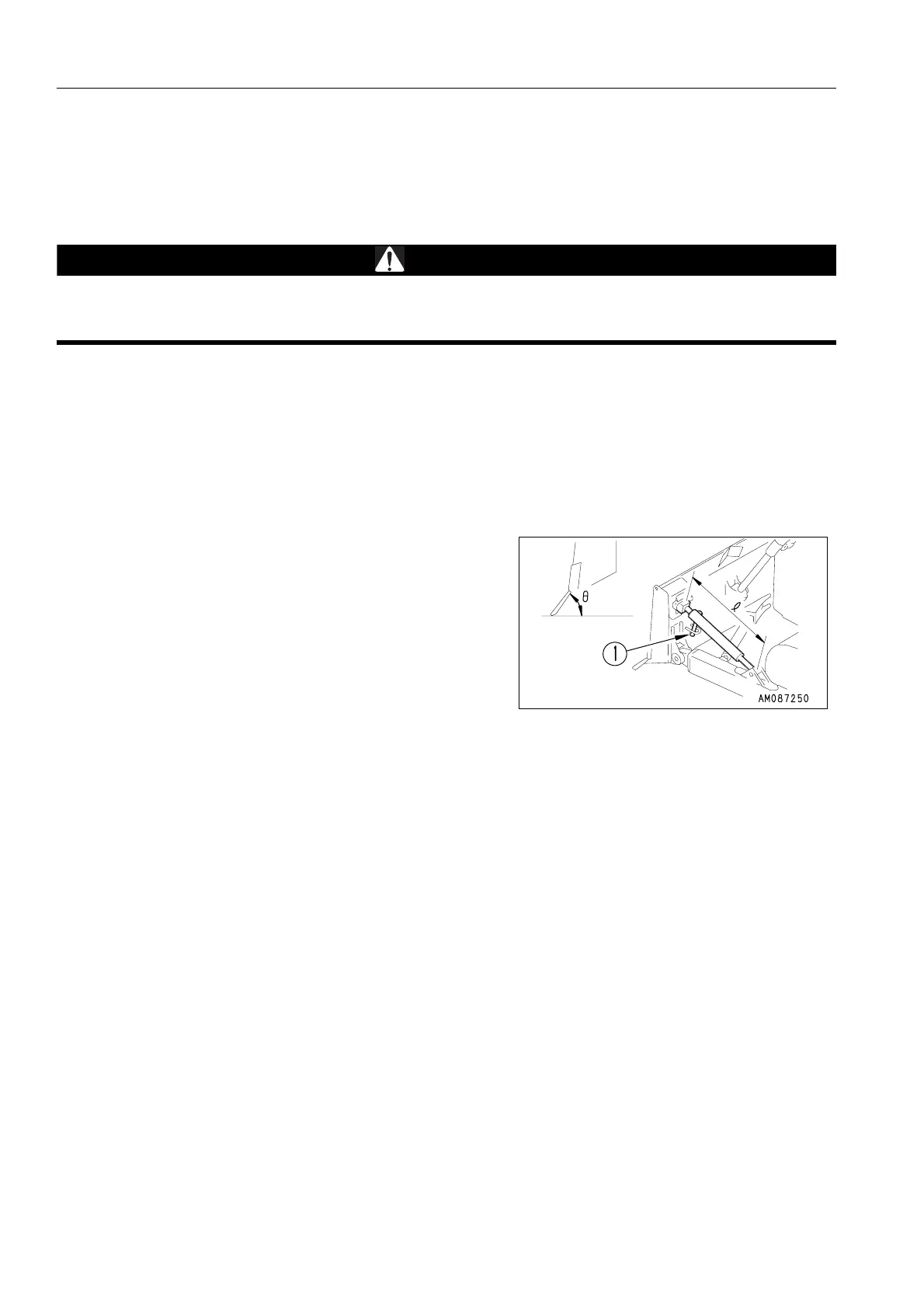

Turn the brace with bar handle (1) and the distance (
l )
between the joints to change the cutting angle (θ) as follows.
INCREASE distance (
l ) to INCREASE angle (θ)
DECREASE distance (
l ) to DECREASE angle (θ).
The standard for the cutting angle (θ) is 55°.
The standard distance between the joints (
l ) is as follows.
D61EX: 960 mm (37.8 in)
D61PX: 960 mm (37.8 in)
