HANDLING HYDRAULIC RIPPER ATTACHMENTS, OPTIONS
6-4
EXPLANATION OF COMPONENTS 6
RIPPER CONTROL LEVER
WARNING
When carrying out inspection or maintenance of the machine, or when parking the machine, lower the rip-
per to the ground and set the work equipment lock lever to the LOCK position.

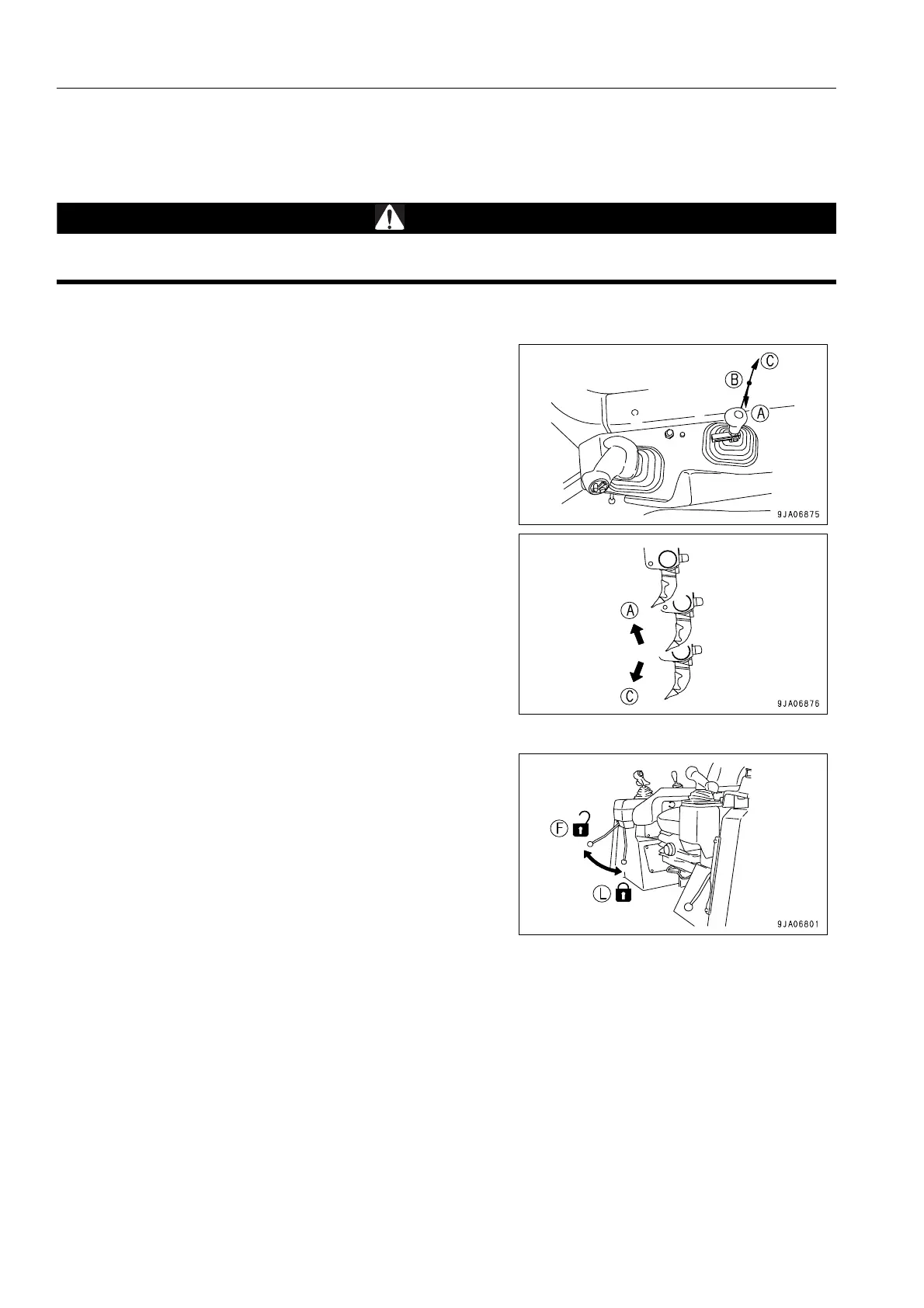

This lever is used to operate the ripper.
(A) RAISE: Ripper goes up
(B) HOLD: Ripper is stopped and held in the same position.
(C) LOWER: Ripper goes down
REMARK
If the work equipment lock lever is set to LOCK position (L), the
operation of the ripper is locked.
For details of the operation of the work equipment lock lever,
see “WORK EQUIPMENT LOCK LEVER (3-37)“.
