EVERY 250 HOURS SERVICE 4
Maintenance for every 50 hours service should be carried out at the same time.
LUBRICATING 4
1. Lower the blade to the ground, then stop the engine.
2. Using a grease pump, pump in grease through the grease fittings shown by arrows.
3. After greasing, wipe off any old grease that was pushed out.

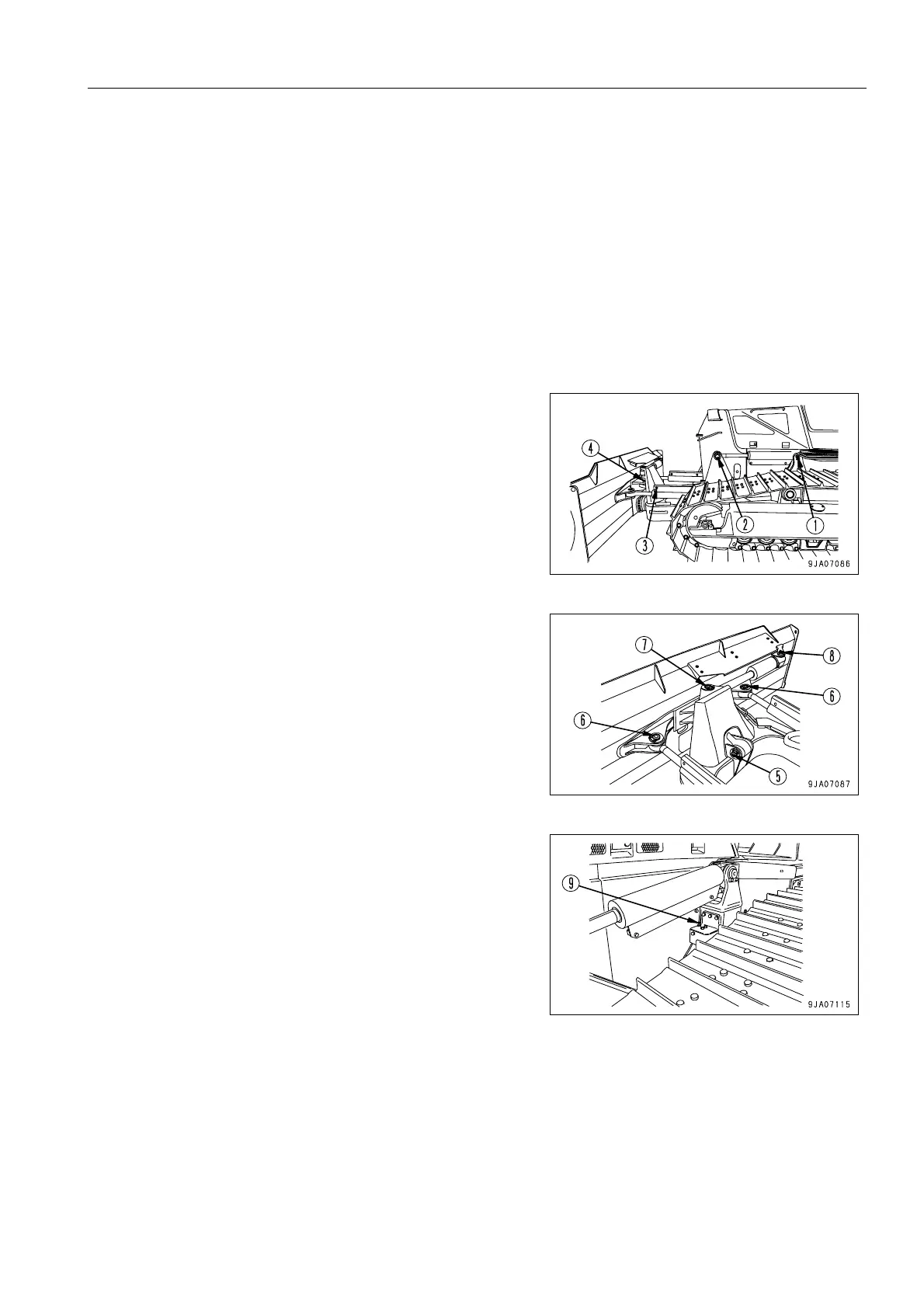

POWER ANGLE, POWER TILTDOZER
(1) Lift cylinder bottom pin (2 places)
(2) Lift cylinder head pin (2 places)
(3) Angle cylinder bottom pin (2 places)
(4) Rod pin (2 places)
(5) Rod pin (2 places)
(6) Angle cylinder head pin (2 places)
(7) Tilt cylinder head pin (1 place)
(8) Tilt cylinder bottom pin (1 place)
(9) Frame mounting pin (2 places)
