OPERATION EXPLANATION OF COMPONENTS
3-49

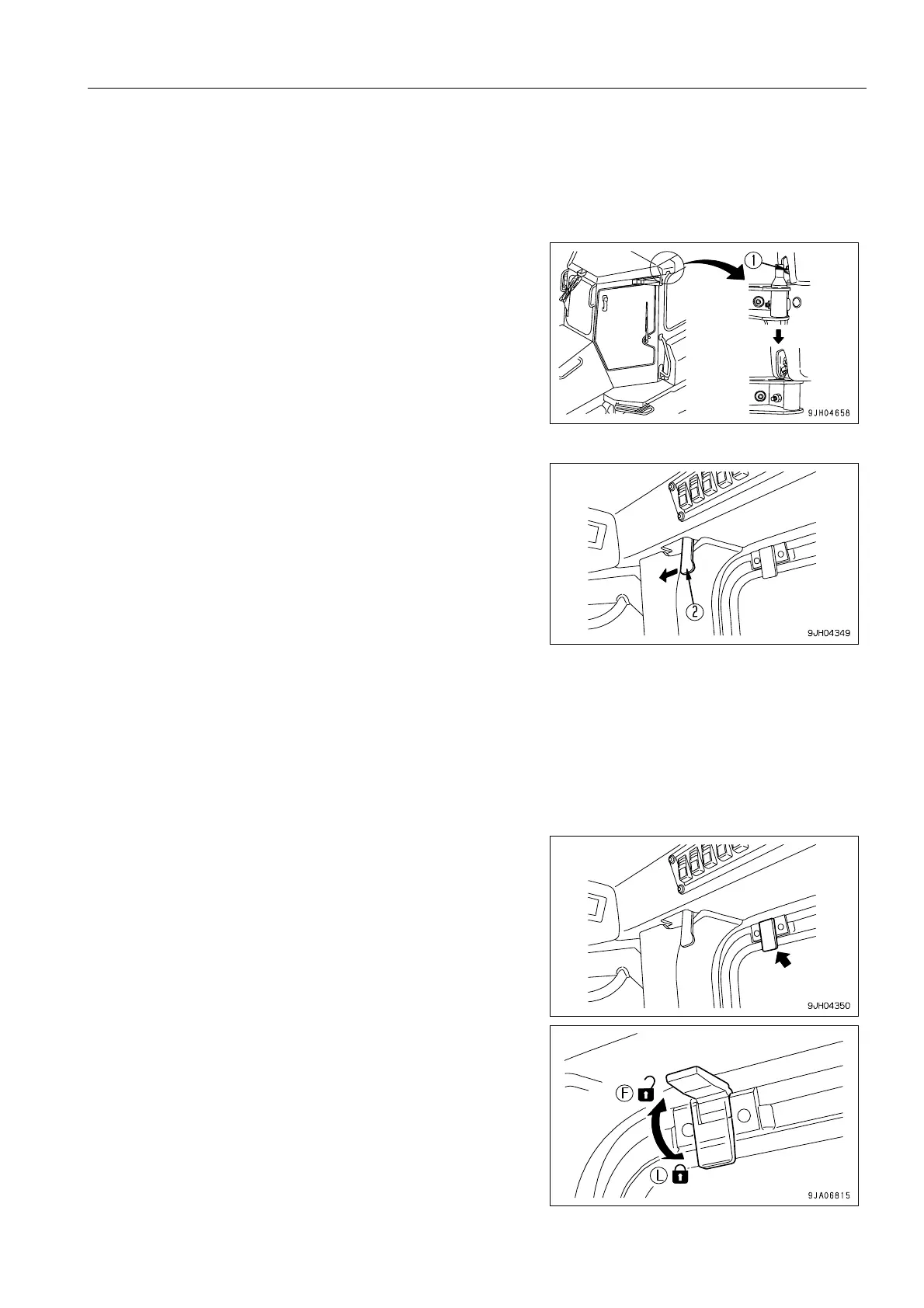

DOOR - OPEN LOCK 3
(Machines equipped with cab)
Use this when your want to keep the door held open.
1. Push the door against the door catch (1). The door will be
held by the door catch.
2. To release the door, move lever (2) inside the cab to the
front of the cab. This will release the catch.
NOTICE
q When keeping the door open, fix it securely to the
catch.
q Always close the door when traveling or carrying out
operations. Leaving the door open will cause the door
to break.
q Keep the door locked open securely. The door may
swing closed because of the vibration.
SASH GLASS INTERMEDIATE LOCK 3
(Machines equipped with cab)
When working with the cab sash glass open, use this lock to
prevent the glass from chattering.
q When the lever is in the FREE position (F), the glass can
be opened or closed.
q When the lever is in the LOCK position (L), the glass is
held in position.
To Next Page
