MAINTENANCE SERVICE PROCEDURE
4-59

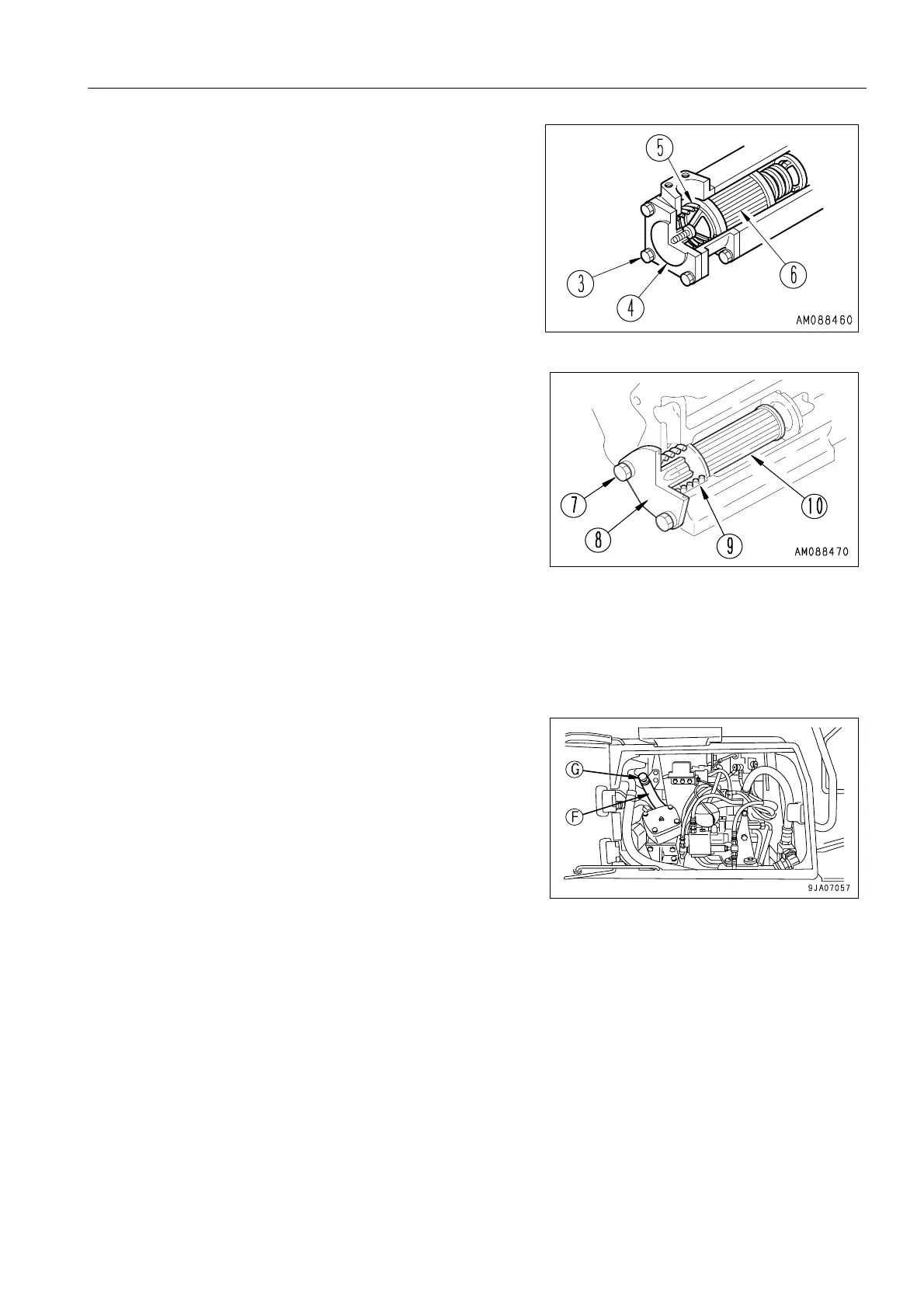

6. Loosen mounting bolt (3) of the power train strainer, then
remove cover (4).
7. Take out spring (5), then take out strainer (6).
8. Remove all dirt from strainer (6), then wash in clean diesel
oil or flushing oil. Clean the case interior and the removed
parts.
9. Loosen mounting bolt (7) of the scavenging pump strainer,
then remove cover (8).
10. Take out spring (9), then take out strainer (10).
11. Remove all dirt from strainer (10), then wash in clean die-
sel oil or flushing oil. Clean the case interior and the
removed parts.
If the spring or strainer are damaged, replace them.
12. Install the strainers to their original position.
13. After installing, replace the element in the power train oil filter. For details, see “REPLACE POWER TRAIN OIL
FILTER ELEMENT (4-57)“.
14. Open cover on the right side of the machine.
15. Refill the specified quantity of oil through oil filler (F).
16. Check that the oil is at the specified level. For details, see
“CHECK OIL LEVEL IN POWER TRAIN CASE, ADD OIL
(3-77)“.
17. Close the cover at right side of machine.
