EXPLANATION OF COMPONENTS OPERATION
3-34

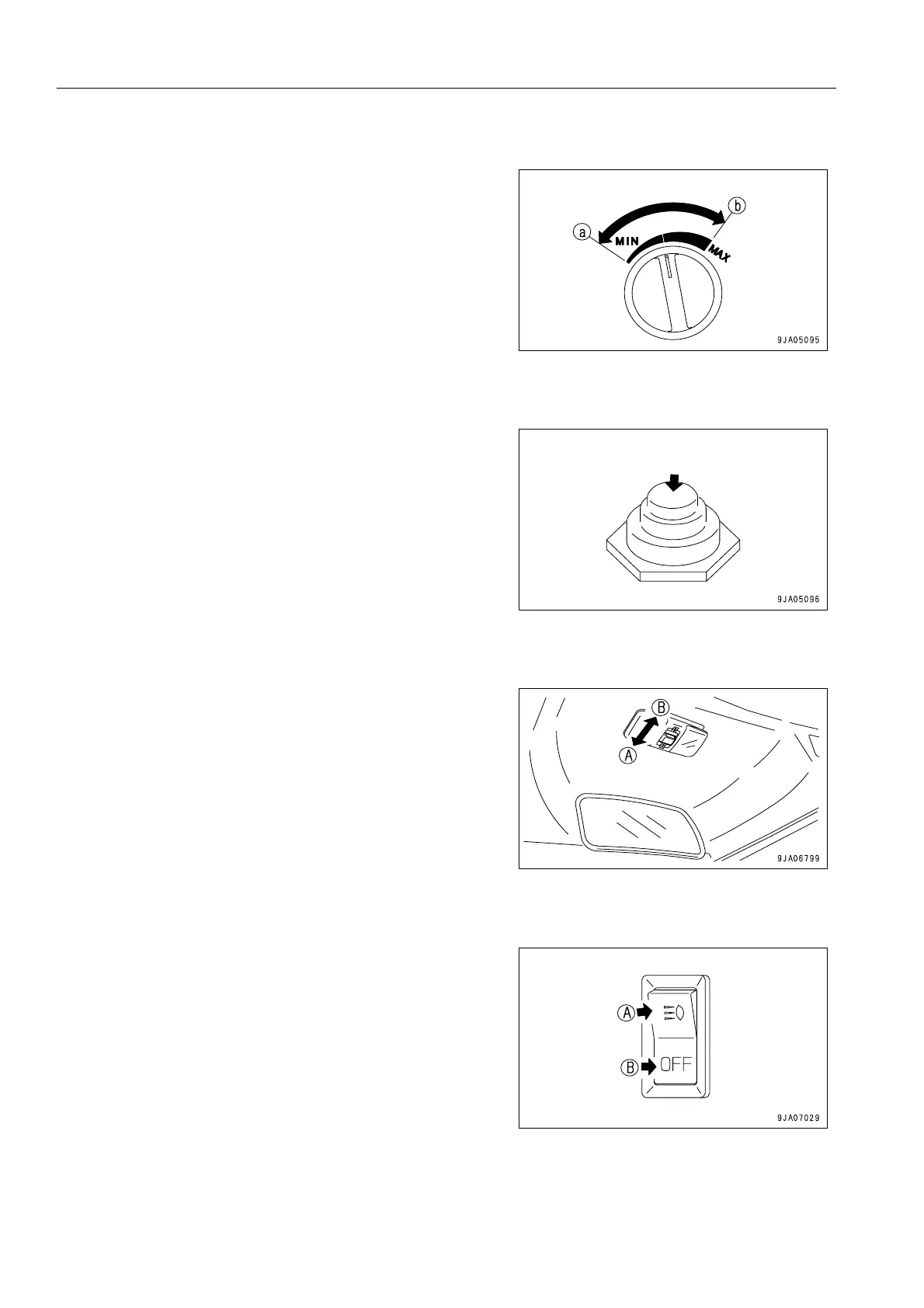

FUEL CONTROL DIAL
Dial (1) is used to control the engine speed and output.
(a) Low idling position: Turn fully to the left
(b) High idling position: Turn fully to the right
HORN SWITCH
The horn sounds when the button (2) at the rear of the blade
control lever at the right side of the operator's seat is pressed.
ROOM LAMP SWITCH
This (3) illuminates the room lamp.
(A) ON position: Lamps light up
(B) OFF position: Lamps are out
ADDITIONAL WORKING LAMP SWITCH
(Machine equipped with cab) (If equipped)
This switch (4) lights up the additional working lamps.
(A) ON position: Lamps light up
(B) OFF position: Lamps are out
