OPERATION
EXPLANATION OF COMPONENTS

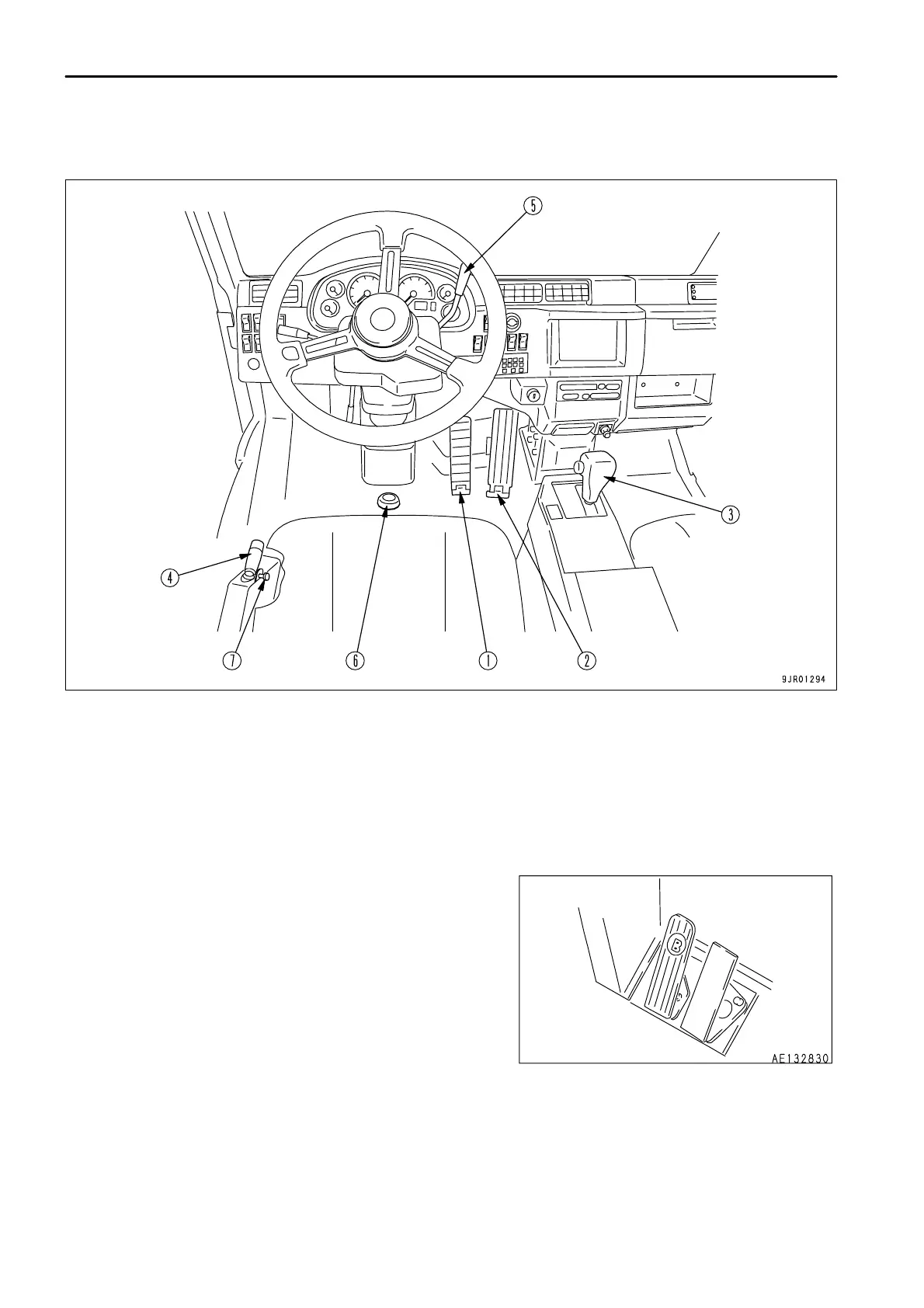

CONTROL LEVERS AND PEDALS
(1)
(2)
(3)
(4)
Brake pedal
Accelerator pedal
Shift lever
Dump lever
(5)
(6)
(7)
Retarder control lever
Left and right differential lock pedal
Safety lock knob
BRAKE PEDAL
This pedal (1) is used to apply the wheel brakes.
3 - 40
