OPERATION
EXPLANATION OF COMPONENTS

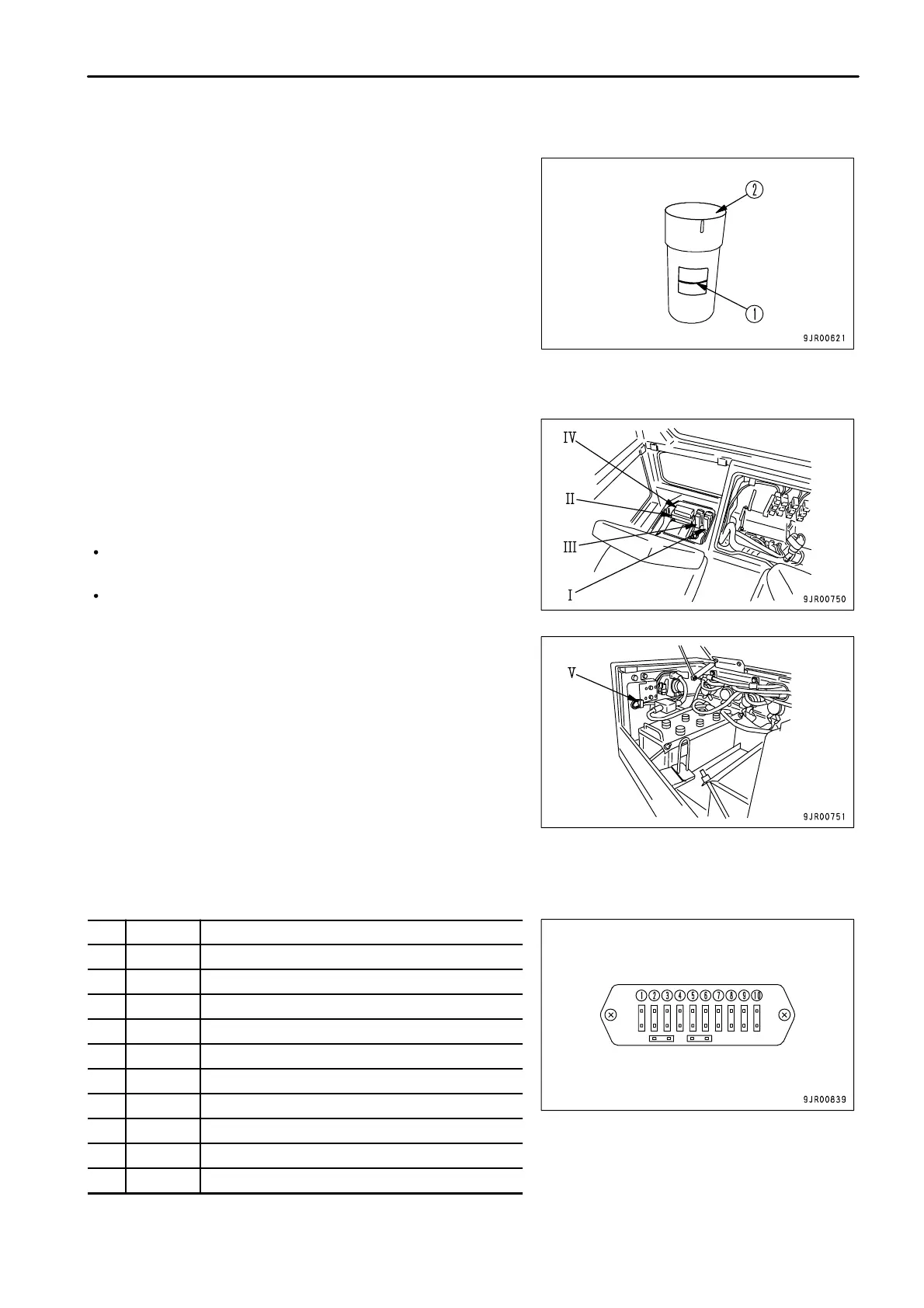

DUST INDICATOR
This device indicates clogging of the air cleaner.
Depending on the degree of clogging of the element, red line (1)
appears in the transparent portion. If red line (1) indicates 0.0075
MPa (30 INCHES H2O) (0.076 kgf/cm
2
, 1.1 PSI), clean the element
immediately.
After cleaning, press top portion (2) of the indicator to return red
line (1) to its original position.
FUSES
The fuses protect the electrical equipment and wiring from burning
out.
If the fuse becomes corroded, or white powder can be seen, or the
fuse is loose in the fuse holder, replace the fuse.
NOTICE
When replacing any fuse, always turn the power off (turn the starting
switch to OFF).
When replacing the fuse, always use a fuse of the same capacity and
type.
FUSE CAPACITY AND CIRCUIT NAME
Fuse box I
No. Capacity Name of circuit
(1) 30A Main lamp
(2) 10A Turn signal lamp
(3) 15A Head lamp (right)
(4) 15A Head lamp (left)
(5) 10A Side lamp (right)
(6) 10A Side lamp (left)
(7) 10A Stop lamp
(8) 30A Backup lamp, backup buzzer
(9) 20A Working lamp (front)
(10) 20A Working lamp (rear) (if equipped)
3 - 47
To Next Page
