11-74
140-3 SERIES
STRUCTURE AND FUNCTION, MAINTENANCE STANDARD COOLING SYSTEM DIAGRAM

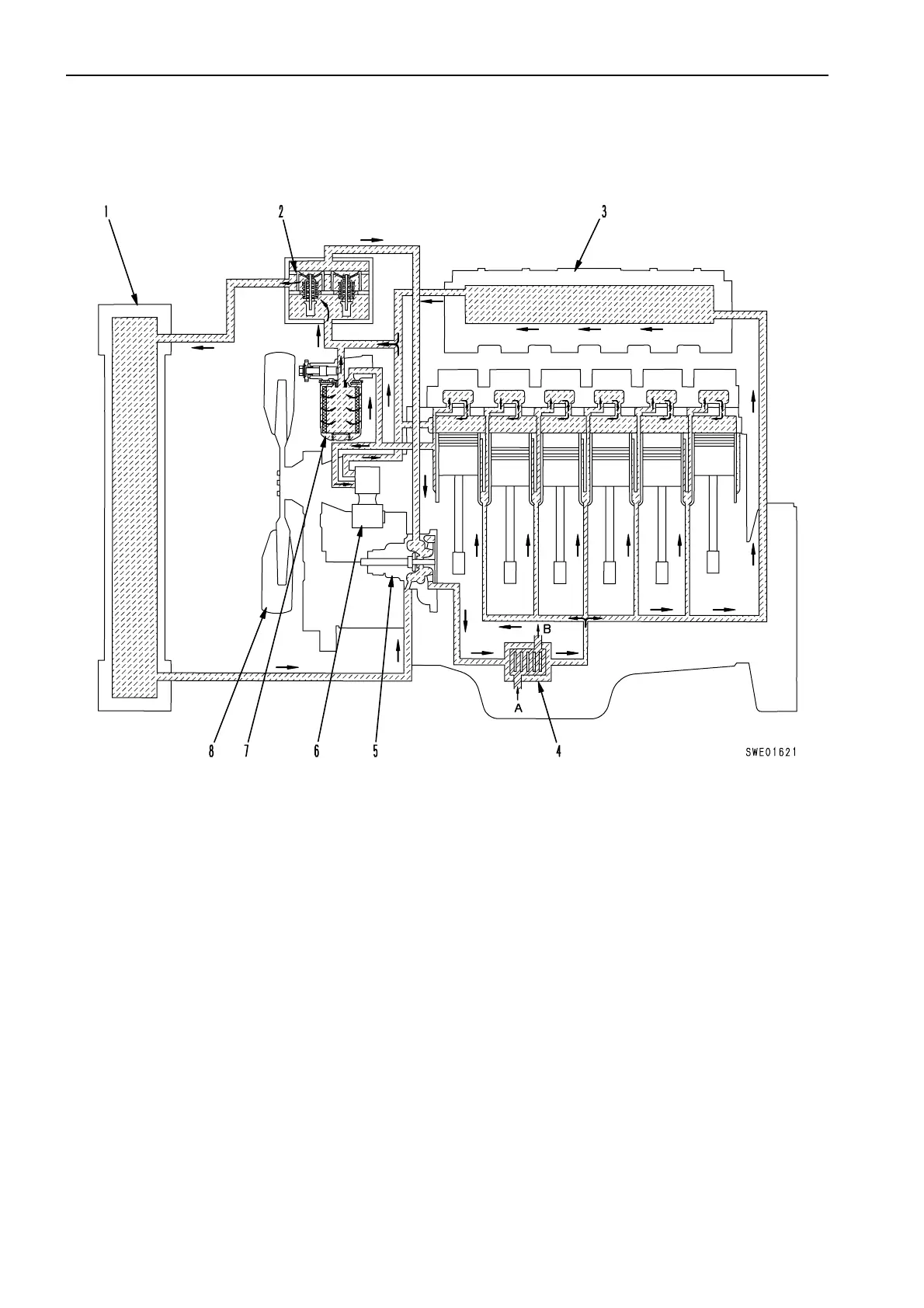

COOLING SYSTEM DIAGRAM
SA6D140E-3 (for construction equipment, generators)
1.
Radiator
A.
Oil inlet
2.
Thermostat
B.
Oil outlet
3.
Water-cooled aftercooler
4.
Oil cooler
5.
Water pump
6.
Air compressor
7.
Corrosion resistor
8.
Cooling fan
