11-12
140-3 SERIES
STRUCTURE AND FUNCTION, MAINTENANCE STANDARD TURBOCHARGER

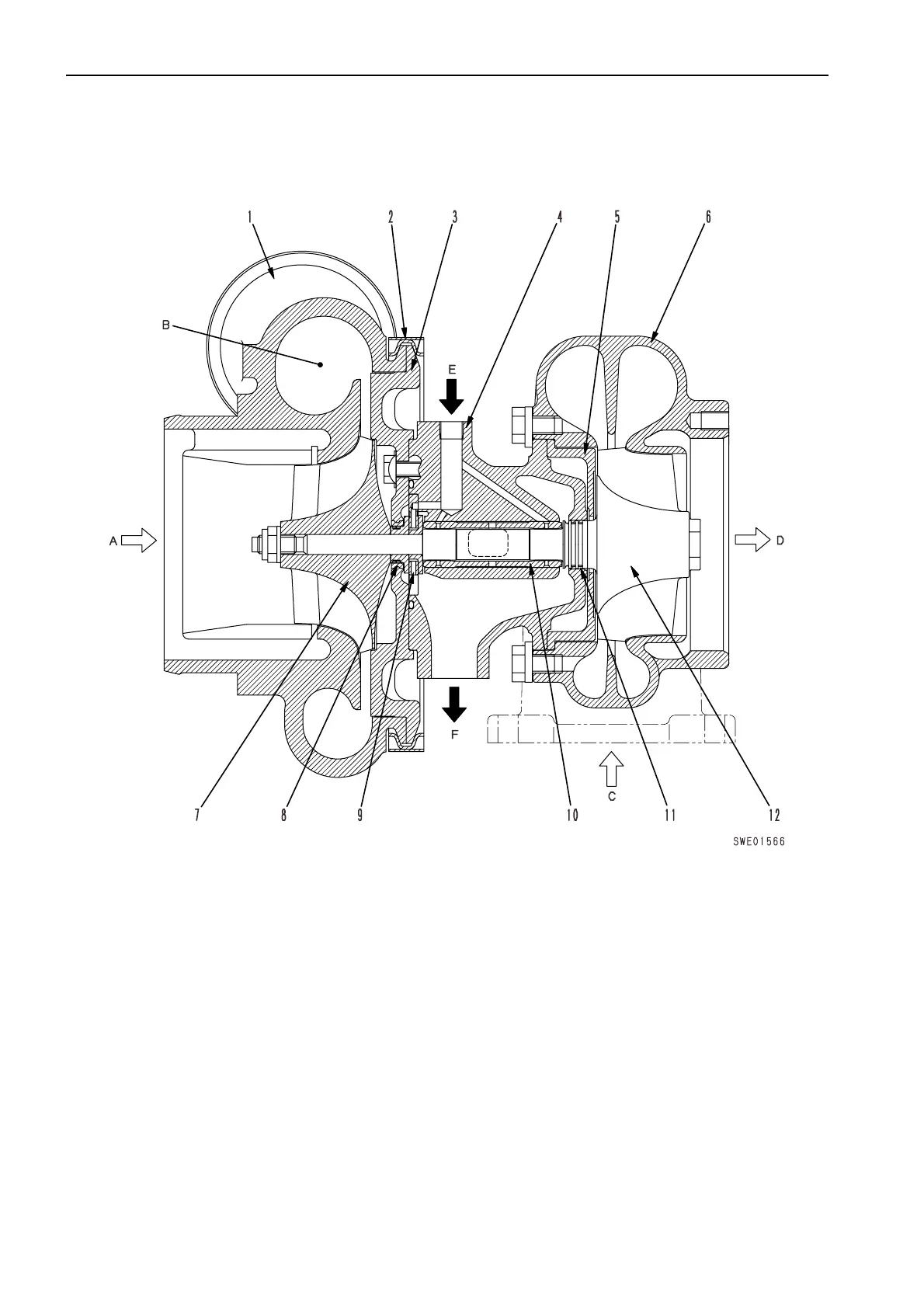

TURBOCHARGER
KTR110L (AIR-COOLED TYPE)
.
1.
Blower housing
A.
Intake inlet
Specifications
2.
V-band
B.
Intake outlet Type: Komatsu KTR110L (air-
cooled)
3.
Diffuser plate
C.
Exhaust inlet Overall length: 308mm
4.
Center housing
D.
Exhaust outlet Overall width: 305mm
5.
Shroud
E.
Oil inlet Overall height: 287mm
6.
Turbine housing
F.
Oil outlet Weight: 24kg
7.
Turbine impeller
8.
Seal ring
9.
Bearing
10.
Thrust bearing
11.
Seal ring
12.
Blower impeller
