11-16
140-3 SERIES

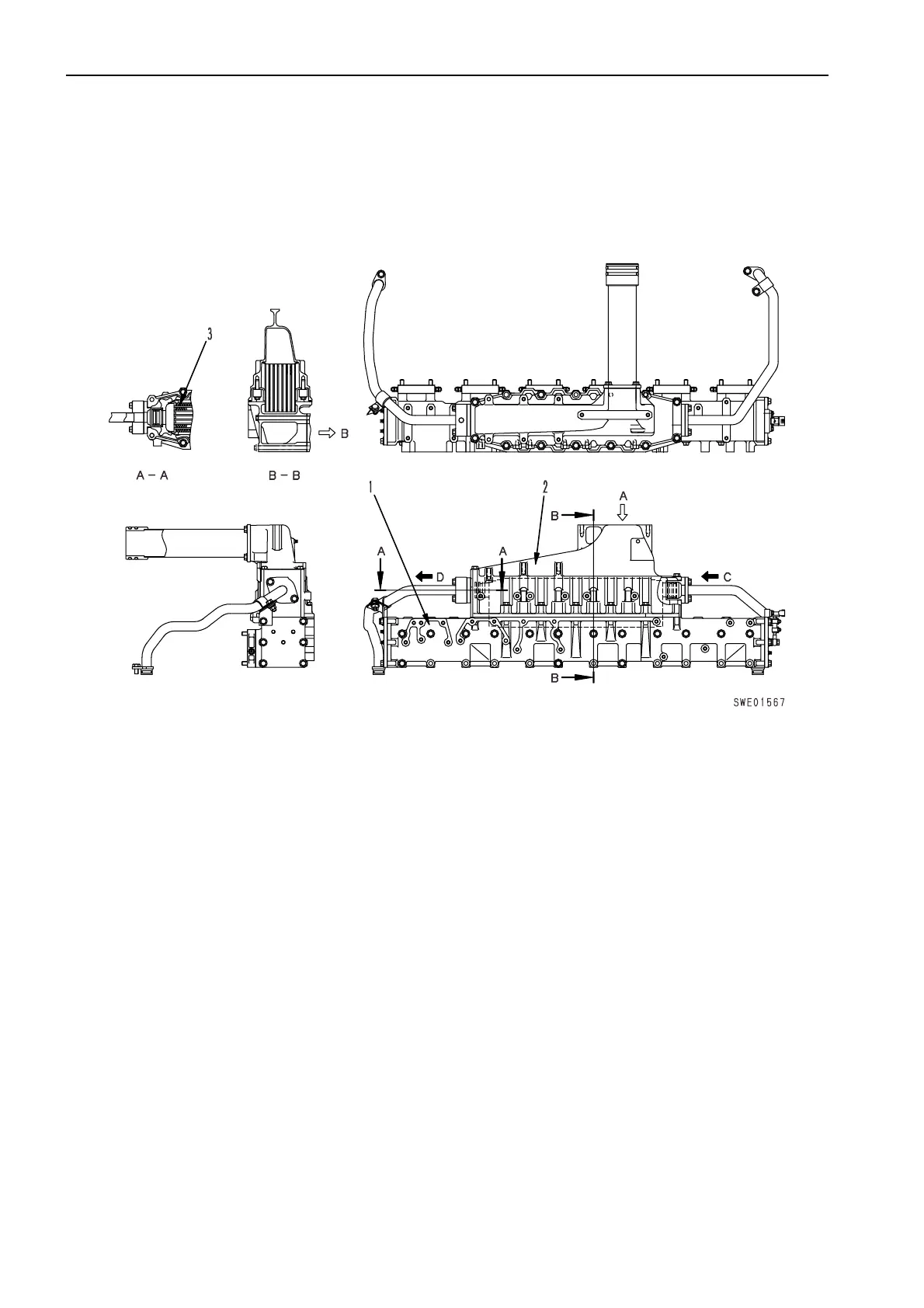

STRUCTURE AND FUNCTION, MAINTENANCE STANDARD AFTERCOOLER
AFTERCOOLER
WATER-COOLED TYPE
SA6D140E-3
★ Details may differ according to the machine
model.
1.
Intake manifold
A.
Intake inlet
2.
Aftercooler cover
B.
Intake outlet
3.
Aftercooler core
C.
Cooling water inlet (from cylinder head)
D.
Cooling water outlet (to thermostat)
