11-76
140-3 SERIES
STRUCTURE AND FUNCTION, MAINTENANCE STANDARD WATER PUMP
WATER PUMP
MOUNT
SA6D140E-3
SAA6D140E-3

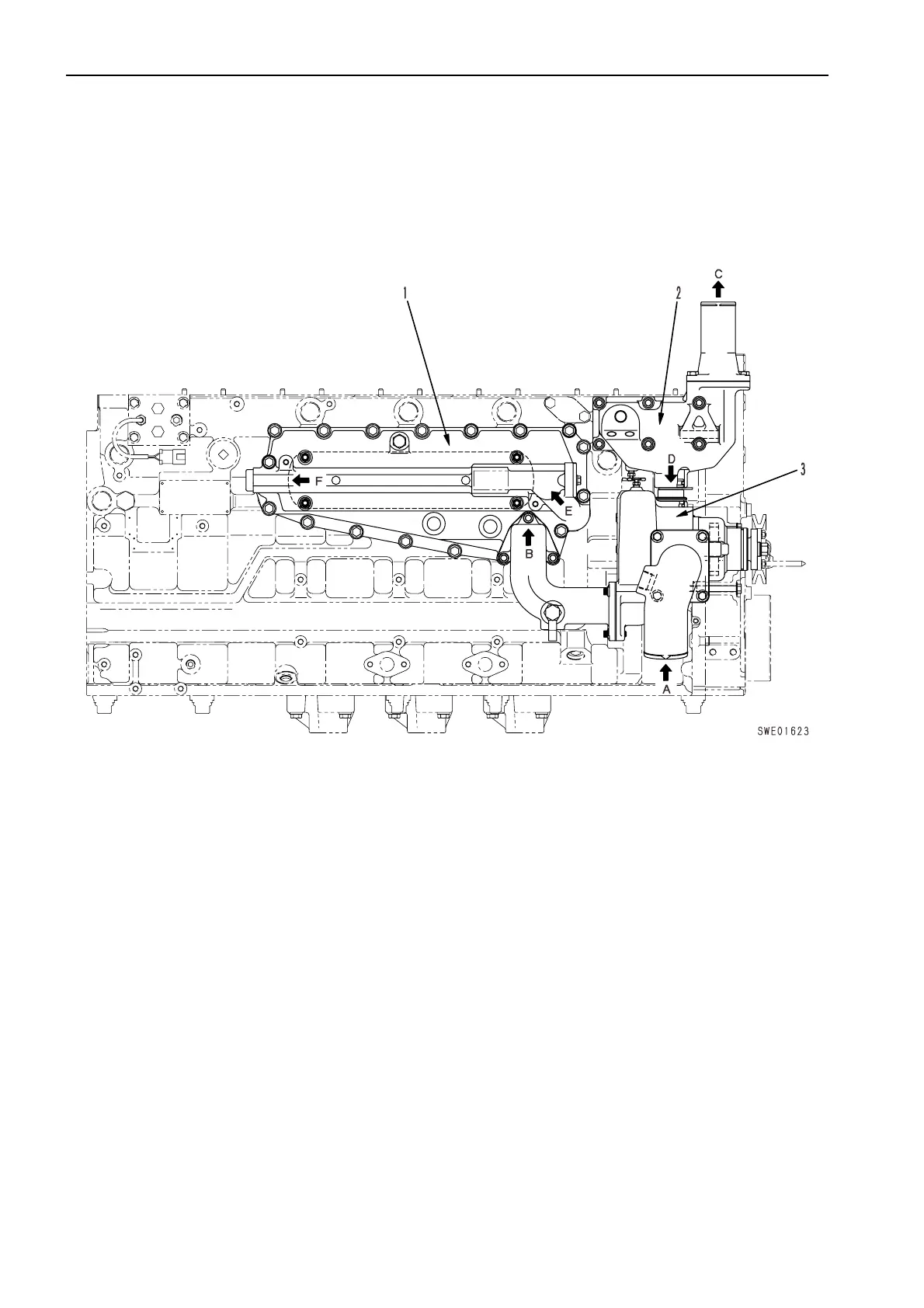

★ The diagram shows the equipment for the
PC600-6.
★ The shape may differ according to the machine
model.
1.
Oil cooler
A.
From radiator outlet (cooling water)
2.
Thermostat housing From heat exchanger outlet (for marine use)
3.
Water pump
B.
To engine through oil cooler (cooling water)
C.
To radiator inlet (cooling water)
To heat exchanger (for marine use)
D.
From thermostat (cooling water)
E.
From oil pump (oil)
F.
To all parts of engine (oil)
