2.1 Overview of this device
Number Name Functions
(15) I/F Cable
• This communicates with DR Detector when performing an exposure using wired connec-
tion. Also used for charging and registering the DR Detector.
• I/F Cable4 8mD and I/F Cable4 8mU relay signals for serial exposure.
(16) AeroDR UF Cable
Registers the orientation when the DR Detector is used for exposure in the wall stand/table
position.
(17)
Image processing
controller
• Controls the reception, management, and output of image data.
• Up to 7 DR Detectors can be registered.
(18) AeroDR XG Cable
Performs signal relay between the X-ray device and the AeroDR Interface Unit2, AeroDR
Generator Interface Unit and AeroDR Generator Interface Unit2.
(19) AeroDR Collimator Cable
Performs exposure eld signal relay between the X-ray device and the AeroDR Interface
Unit2 or AeroDR Generator Interface Unit.
(20) AeroDR S-SRM Cable
Performs signal relay between the X-ray device operation panel and AeroDR Interface Unit2,
AeroDR Generator Interface Unit, and AeroDR Generator Interface Unit2.
(21) S-SRM
Synchronizes AeroDR Interface Unit2, AeroDR Generator Interface Unit, and AeroDR Gen-
erator Interface Unit2 and X-ray device simply. Exposure is performed using the AeroDR
Generator Interface Unit.


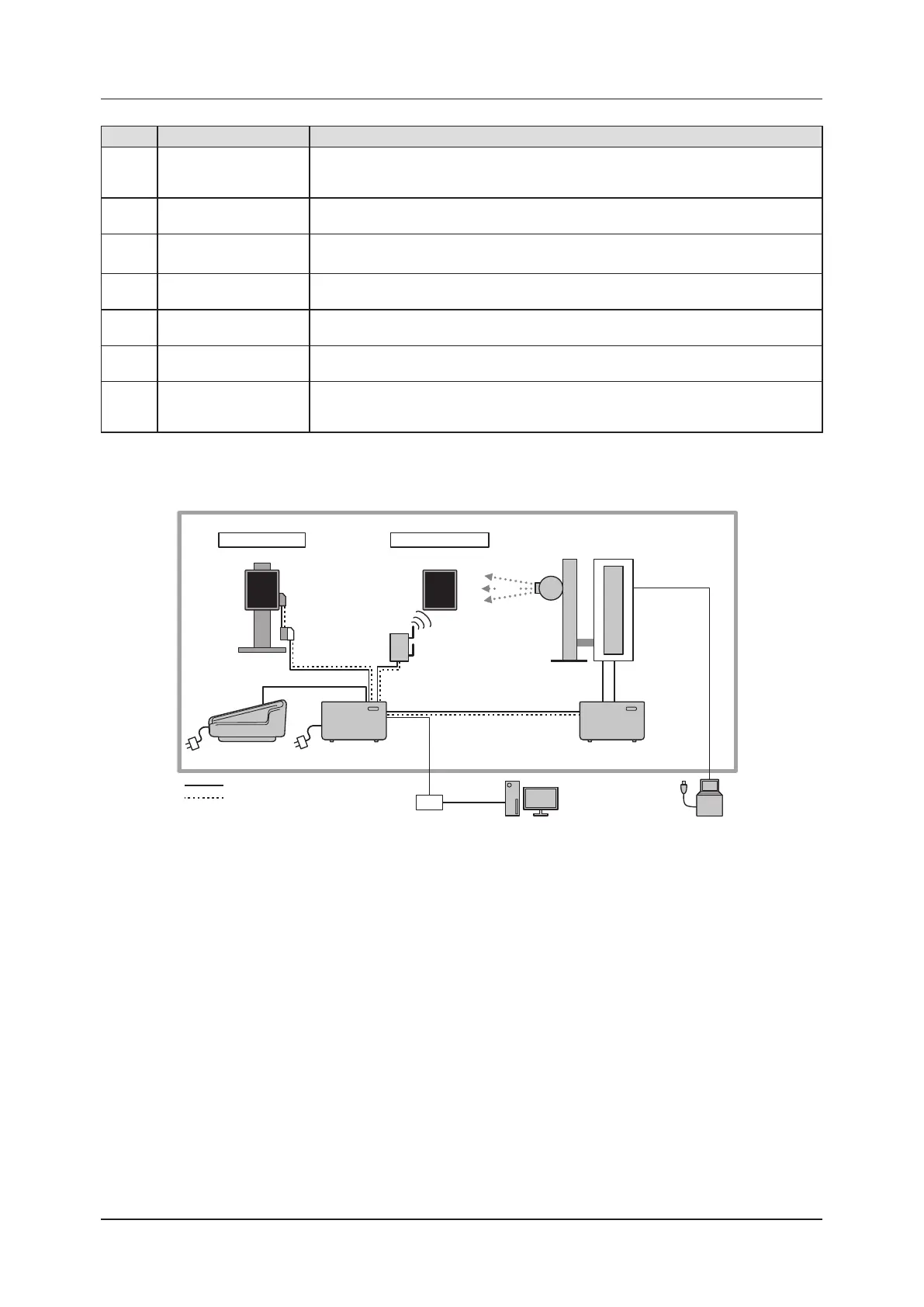

Basic connection example 1
(16) AeroDR
UF Cable
(15) I/F Cable
X-ray
Wired connection
Wall
stand
(1) DR Detector
Wireless connection
(1) DR Detector
(19)
AeroDR
Collimator Cable
(18) AeroDR
XG Cable
Exposure room
(13) AeroDR
Access Point
Tube
X-ray device
(2) AeroDR Interface Unit (8) AeroDR Generator
Interface Unit
Signal relay
Power supply
X-ray device
operation panel
(17) Image processing controller
Hub
(12) AeroDR
Battery Charger2
