Konica Minolta AeroDR System User Manual

44

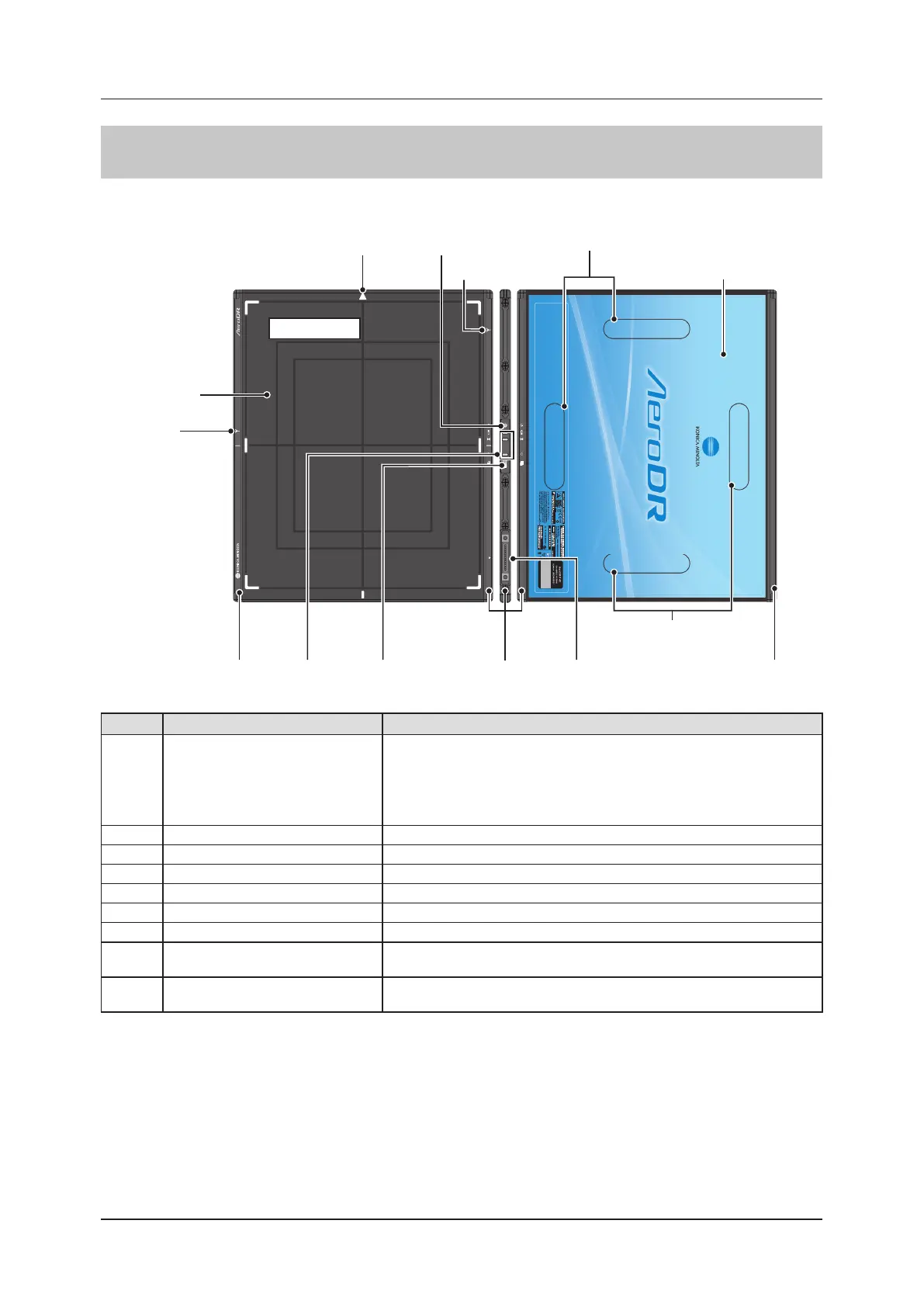

2.2 Component names and functions
2.2.2 AeroDR 2 1417HQ/AeroDR 2 1417S
The component names and functions of the DR Detector (AeroDR 2 1417HQ and AeroDR 2 1417S) are
as follows.
(6) Protective
cover
(2) Power switch
(7) LEDs (8) Selection
switch
(9) Wired connection
connector
(5) Exterior
(1) Triangular mark
Exposure side
(6) Protective
cover
(6) Protective
cover
(3) Antenna
display
(3) Antenna display
(4) AeroDR Grip sheet attachment areas
(4) AeroDR Grip sheet
attachment areas
(5) Exterior
Number Name Functions
(1) Triangular mark
• Indicates the direction to place the DR Detector in during exposure.
– When exposing in portrait, place the triangular mark upward.
– When exposing in landscape, place the triangular mark to the left or right.
(Left and right are set during installation according to the exposure envi-
ronment.)
(2) Power switch Used to turn the DR Detector on/o󰀨.
(3) Antenna display Displays the place where a wireless antenna is attached.
(4) AeroDR Grip sheet attachment areas Indicates the attachment positions for AeroDR Grip sheet use.
(5) Exterior
Protects the internal parts.
(6) Protective cover Absorbs external shocks.
(7) LEDs Indicate the status of the DR Detector.
(8) Selection switch
Noties the image processing controller that this DR Detector will be used for
the exposure.
(9) Wired connection connector
Connects to the AeroDR Battery Charger, AeroDR Battery Charger2, and wired
cable.
