Commissioning
26
Pos: 44.5 /Übersc hriften/Übersc hriften 2/A-E/Ers tmontage @ 1\mod_12022 26261982_78. doc @ 58270
5.1 First installation
Pos: 44.6 /BA/Ersti nbetriebnah me/Erstmontag e @ 1\mod_ 12022241119 98_78.doc @ 58 190
The document "Assembly Instructions" describes how to install the device for the first time.
Pos: 44.7 /Übersc hriften/Übersc hriften 2/A-E/A nbau an de n Traktor @ 0\mo d_11997178451 94_78.doc @ 34039
5.2 Mounting onto the Tractor
Pos: 44.8 /BA/Ersti nbetriebnah me/Schwader/ Swadro 710T/ Anbau Zugpend el/Ackerschie ne erforderlich @ 6\mod_121 4987153325_ 78.doc @ 972 71
A swing drawbar or a hitch bar is required on the tractor side to attach the machine to the
tractor.
Pos: 44.9 /BA/Ersti nbetriebnah me/Schwader/ Swadro 710T/ Anbau Bild oh ne Sicherheits kette SW 46T @ 9\mod_12209 34689209_78.d oc @ 129036
SW46T034_1
2
1

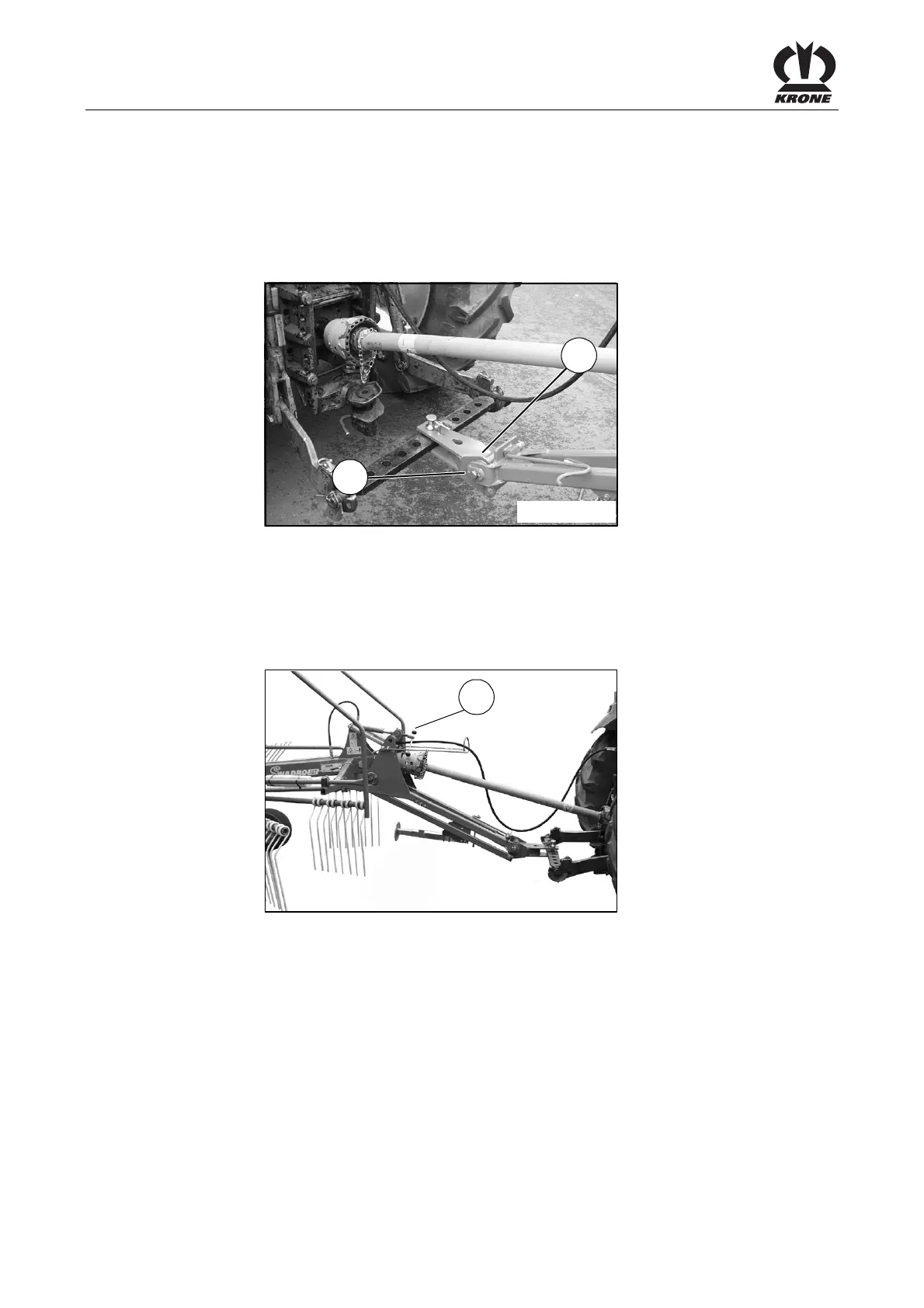

Figure 5:
Pos: 44.10 /BA/Ers tinbetriebna hme/Schwader/S wadro 710T/A nkoppeln S W 710T @ 6\m od_1214987431 903_78.doc @ 97291
• Connect the rotary rake to the swing drawbar or hitch bar (1) and secure using bolt (2).
Pos: 44.11 /BA/Ers tinbetriebna hme/Schwader/S wadro 710T/A nkoppeln T2 @ 9\mod_122 0936715568_78. doc @ 12914 9
• Switch off tractor engine and remove ignition key.
• Secure tractor and machine against rolling.
Pos: 44.12 /BA/Ers tinbetriebna hme/Schwader/S wadro 46 T/Gr undeinstellu ng Kreisel vor ne SW 46T US @ 9\mod_1220 948683865_7 8.doc @ 1293 46
5.3 Default setting
SW46T014_1US
1
Figure 6:
• Raise or lower the hitch bar until the rotor is positioned horizontally.
• Use the spindle (1) to adjust the rotor until it is horizontal or inclined slightly forward.
