Special equipment
58
Pos: 112.1 /Üb erschriften/Üb erschriften 1/P-T/S onderaussta ttung @ 2\mod _1202808469 779_78.doc @ 6 1649
14 Special equipment
Pos: 112.2 /BA/Sic herheit/Gefa hrenhinweise/Ei nstellarbeite n gezogene Maschi nen @ 0\m od_11997170 11038_78.doc @ 33980
Danger! - Unexpected movements of the machine
Effect: Danger to life or serious injuries.
• Setting tasks must only be performed when the drive is switched off and the engine is at
a standstill!
• Switching off the engine
• Remove the ignition key.
• Secure the machine against the possibility of rolling back.
Pos: 112.3 /BA/S onderausstatu ng/Schwader/Zi nkenverlustsic herung @ 2\ mod_120280697 6420_78.doc @ 61592
14.1 Tine loss safeguard
KS-0-098
3
2
4
1
5

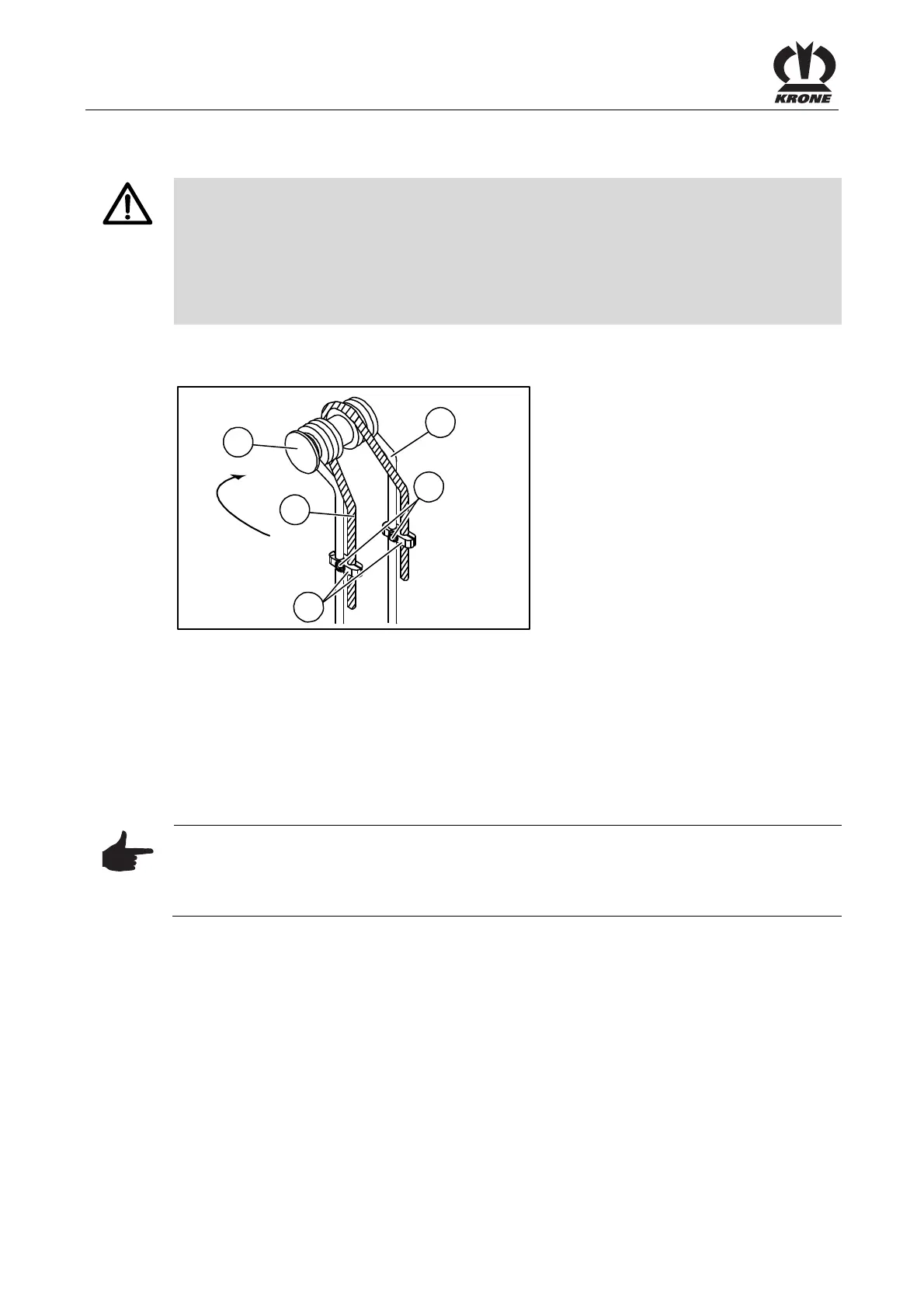

Figure 29
Mounting the tine loss safeguard
The tine loss safeguard for the double coil spring tines consists of:
• a cable
• two cable clamps
• two coach bolts, washers and lock nuts each
Secure the cable (1) with the cable clamps (2) onto the rotor tines (3).
Note
Thecable must be located behind the rotor tine in relation to the direction of rotation. The nuts
(4) of the cable clamps must face outwards.
Spare tine loss safeguards Order No. : 153 479 0
