8.4.1 Adjusting the swath cloth
SW46T017
4
3
1
Pos.I
Pos.II
2
6
2
6
5

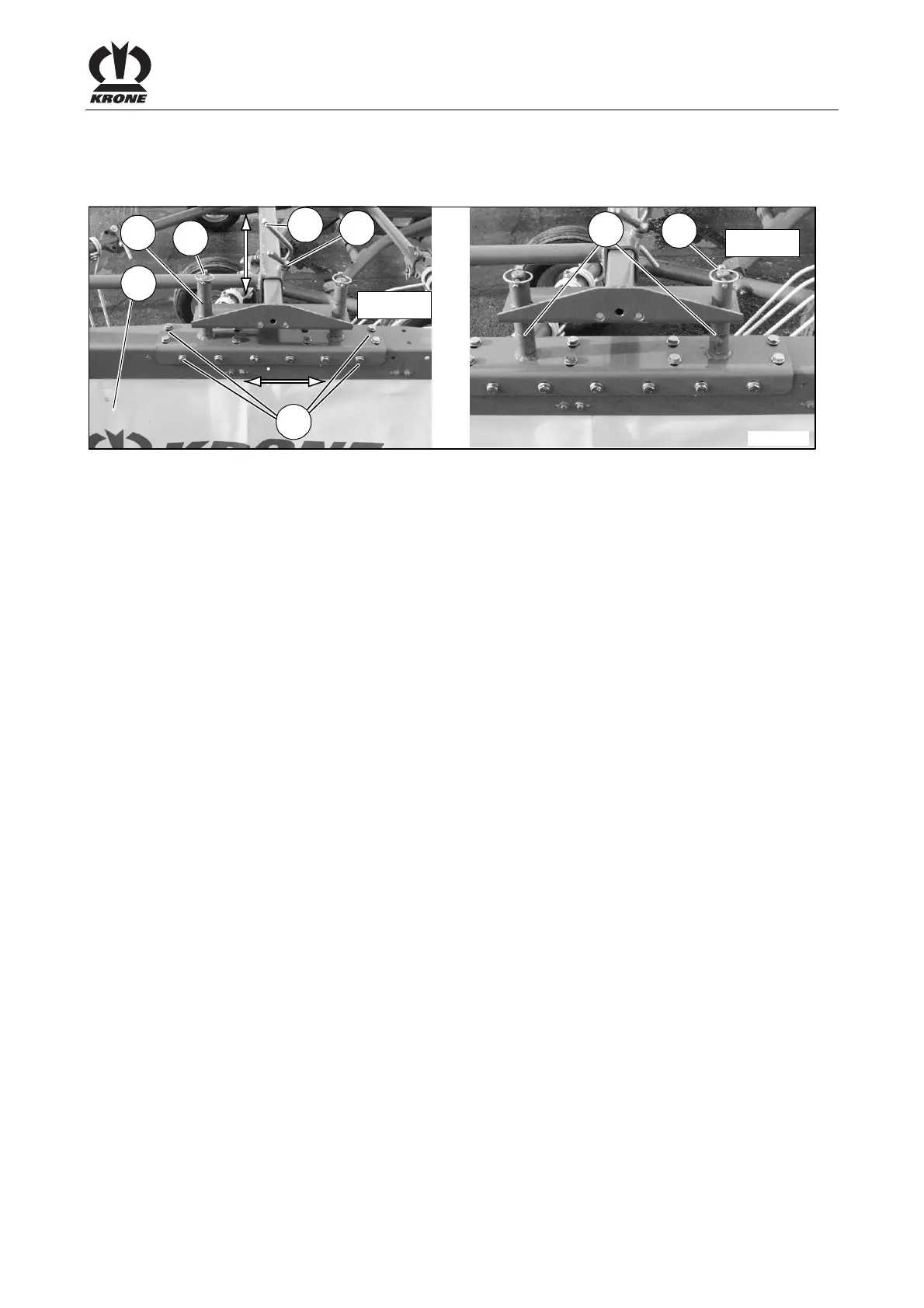

Figure 16:
• To do this, loosen the cone grip (4) and set screw (5), move the swath cloth (3) to the
correct position and then tighten the cone grip (4) and set screw (5) again.
Pos: 80 /BA/B edienung /Schw ader/Schwadtuc h/Schwadform er/Verstellen Sc hwadformer i n Längsrichtu ng SW 46T @ 7\mod_1215682 330613_78.doc @ 105154
8.4.2 Adjusting the swath former lengthwise
This adjustment is required for example if forage falls out at the front of the swath former. To
make the adjustment, loosen the screws (1), move the swath former to the desired position and
tighten the screws (1) again.
Pos: 81 /BA/B edienung /Schw ader/Schwadtuc h/Schwadform er/Höhenverstellu ng des Sch wadformers SW 46T/SW907 @ 7\mod_1215 682459926_7 8.doc @ 1051 75
8.4.3 Height adjustment of the swath former
The adjustment is required if forage falls under the swath former, for example, and is not
evened out by the working depth adjustment.
To do this:
• Unscrew the linch pins (2).
• Remove the swath former from its support.
• Reinstall the sleeves (6).
• Insert the swath former into the support and secure it with the linch pin (2).
