Krone Swadro 42 T User Manual

Commissioning
27
Pos: 44.14.1 /Üb erschriften/Üb erschriften 2/F-J/ Gelenkwelle @ 0\mod_11 99781879794 _78.doc @ 3454 2
5.4 PTO shaft
Pos: 44.14.2 /B A/Erstinbetrie bnahme/Gelen kwelle/Materialsc häden Masch nic ht ausheben @ 6\mod_12 14996593356 _78.doc @ 97 722
Caution! - Material Damages
• Do not lift the machine until the length of the PTO shaft has been adjusted!
Pos: 44.14.3 /B A/Erstinbetrie bnahme/Gelen kwelle/Traktorwec hsel Gelenkw ellenlänge be achten @ 6\mod _1214996938 591_78.doc @ 9 7742
Caution! - Changing the tractor
Effect: Damage to the machine
When using the machine for the first time and whenever changing the tractor Check PTO shaft
for the correct length. If the length of the PTO shaft does not match the tractor, always observe
the chapter entitled "Adjusting the length of the PTO shaft".
Pos: 44.14.4 /Üb erschriften/Üb erschriften 3/K-O/ Längenanp assung @ 1\ mod_1201687632 810_78.doc @ 53589

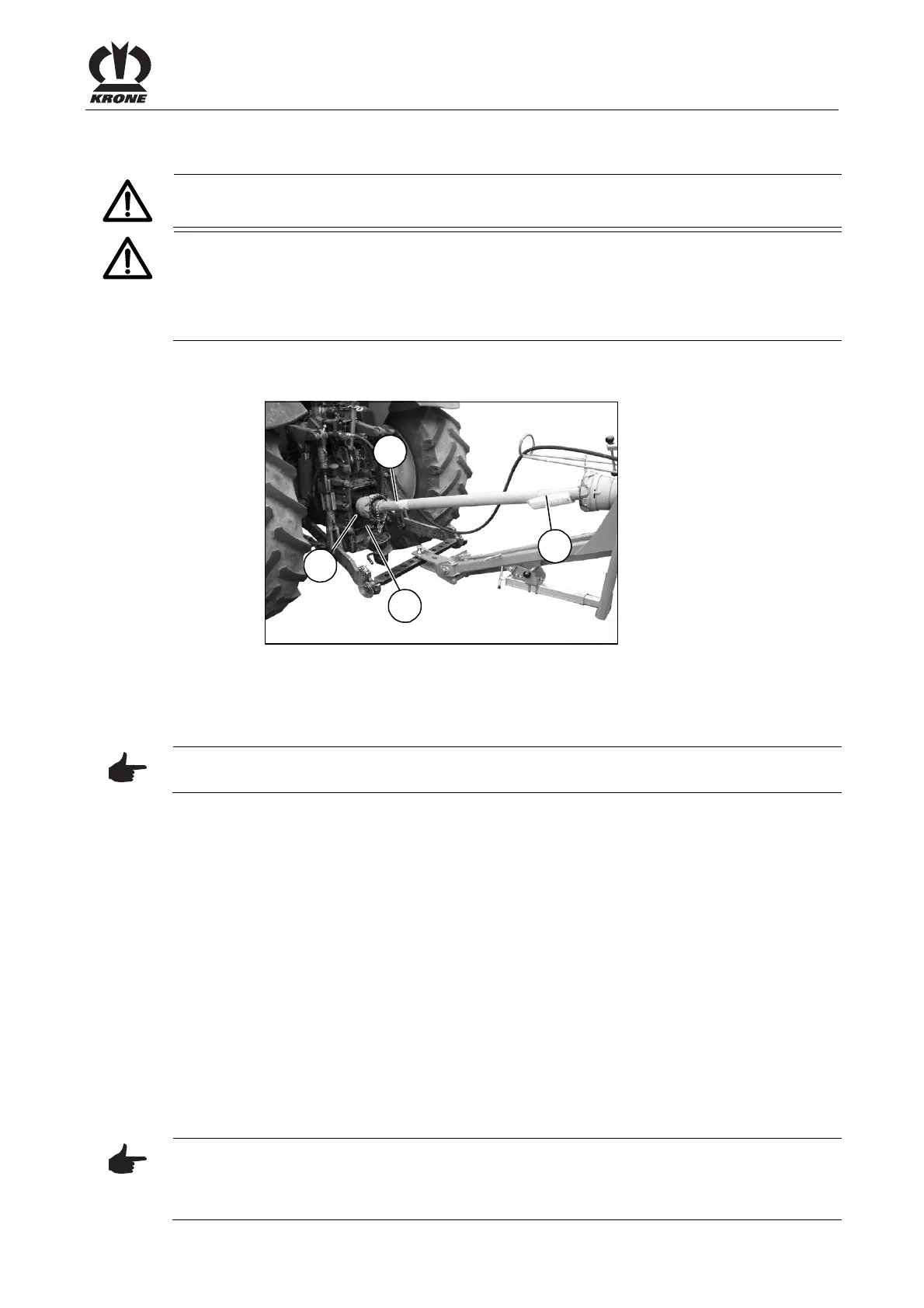

5.4.1 Length adjustment
Pos: 44.14.5 /B A/Erstinbetrie bnahme/Gelen kwelle/Schwader/ Längenanpass ung Bild SW 7 10T_46T US @ 9\mod_122 0951157271_ 78.doc @ 129 459
SW46T003_1_US
1
2
3
4
Figure 7:
Pos: 44.14.6 /B A/Erstinbetrie bnahme/Gelen kwelle/Schwader/ Längenanpass ung_mit Weit winkel traktors eitig SW38T/42T/ 46T US @ 46\ mod_128196 2664093_78.d oc @ 445665
The length of the universal shaft (1) must be adjusted. To do so, position rotary swather in the
shortest universal shaft position setting:
Note
The universal shaft must not yet be attached on the tractor side.
• Bring the machine into the transport position
• Subsequently, turn the tractor’s steering to full to the left or to the right and move forward
with the attachment until the tightest curve is reached
• Switch off the engine and remove the ignition key
• Secure the machine and tractor against rolling
• Disperse the universal shaft
• Install each half (1) and (2) on the tractor and machine side respectively
Swadro 46 T:
(Make certain the "Tractor" icon inscribed on the universal shaft is actually inserted on
the tractor side.)
Swadro 38T, Swadro 42T:
(The wide angle coupling must be installed on the tractor side. Observe the marking on
the universal shaft.)
• For additional operating instructions refer to the operating instructions of the universal
shaft manufacturer
Note
Check swivel range of and clearance for the universal shaft! Damage can be caused if the
tractor or the machine touch the universal shaft (e.g. hitching device, hitching frame, lower
suspension arms)
