8.8 Parking
Pos: 98 /BA/Sic herheit/Gefahr enhinweise/Sc hwader/Maschi ne abstellen gezog ene Gerät e @ 2\mod_120 2726300830_ 78.doc @ 6043 4
Danger! – Unexpected movements of the machine!
Danger to life, serious injuries
• No persons may remain in the danger zone.
• Set the machine down a solid surface.
• You should uncouple the machine only when the engine has been switched off and the
ignition key has been removed.
• Secure the machine against the possibility of rolling back by means of wheel chocks.
• Use extreme caution when attaching or detaching devices to or from the tractor! The
accident prevention regulations must be complied with absolutely.
• When connecting and disconnecting the hydraulic hose to and from the tractor
hydraulics, the system on the tractor and machine must be pressureless! Move the
appropriate control valves into the flow position.
Pos: 99 /BA/B edienung /Schw ader/Abbau/Abb au vom Tra kto SW 46T @ 7\ mod_12157576 71750_78.d oc @ 105421
SW46T007
1
4
6
3
5
2
II
I
SW710013
8

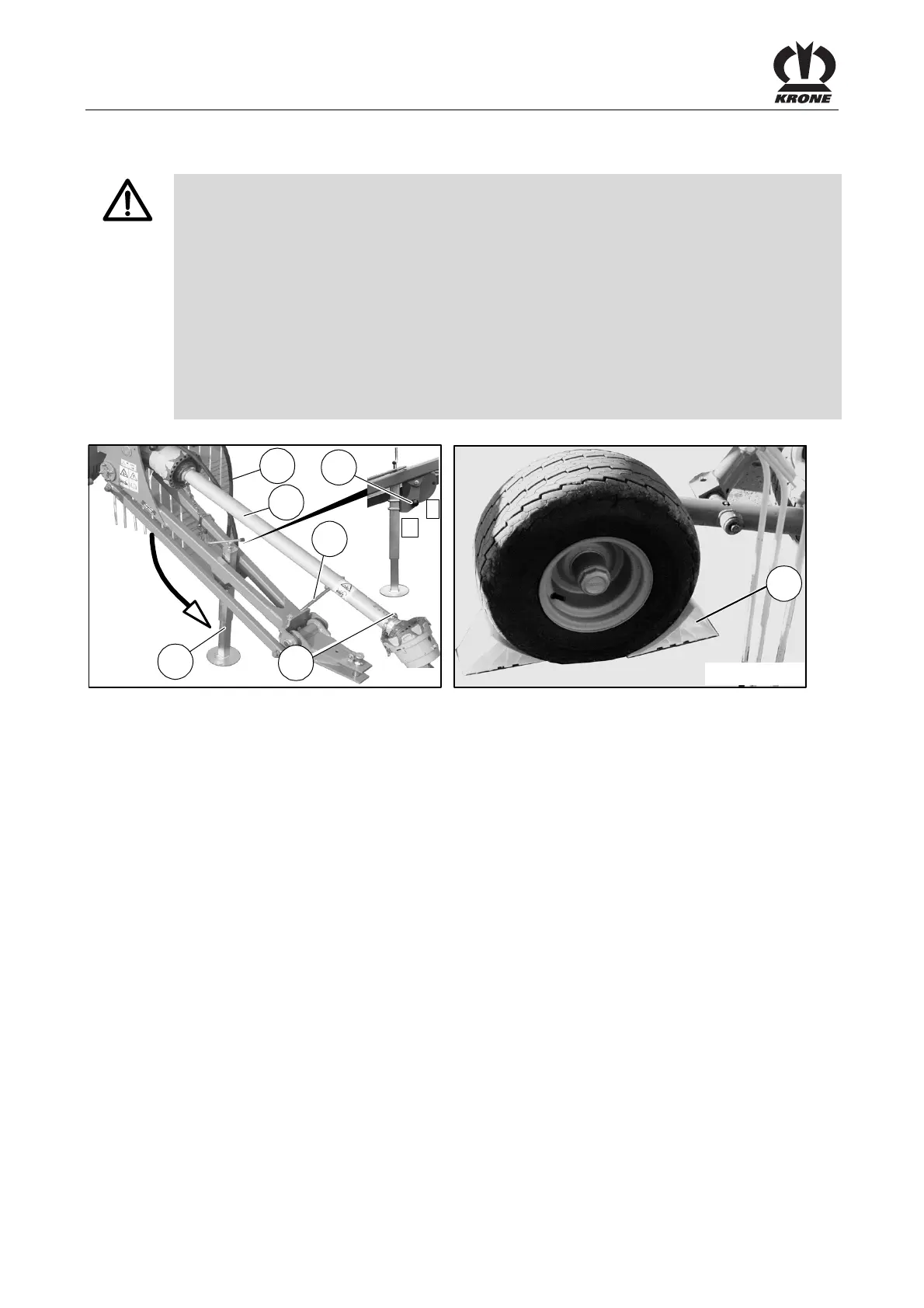

Figure 21:
Choose a level, dry and adequately stable surface.
Front parking jack
• When lowering the machine, fold down the parking jack (1).
• Pull bolt (2) out of position I
• Fold down the parking jack (1)
• Insert bolt (2) in position II
• Lower the lower suspension arms until the machine is standing on the parking jack.
• Switch off the tractor engine, remove the ignition key, and secure the tractor from rolling
away.
• Secure the machine against rolling away by means of wheel chocks (8).
• Loosen the retaining chain (6), disconnect the PTO shaft (3) and place it onto the support
(4) provided.
• Disconnect the hydraulic hoses (5) and place them in the support provided for that
purpose.
• Uncouple the machine from the tractor.
