KTM 125 Duke 2017 User Manual

14 WHEELS, TIRES 117
14.1 Removing the front wheel
Preparatory work
– Raise the motorcycle with the rear lifting gear. (
p. 88)
– Lift the motorcycle with the front lifting gear. ( p. 89)
F00754-10
Main work
–

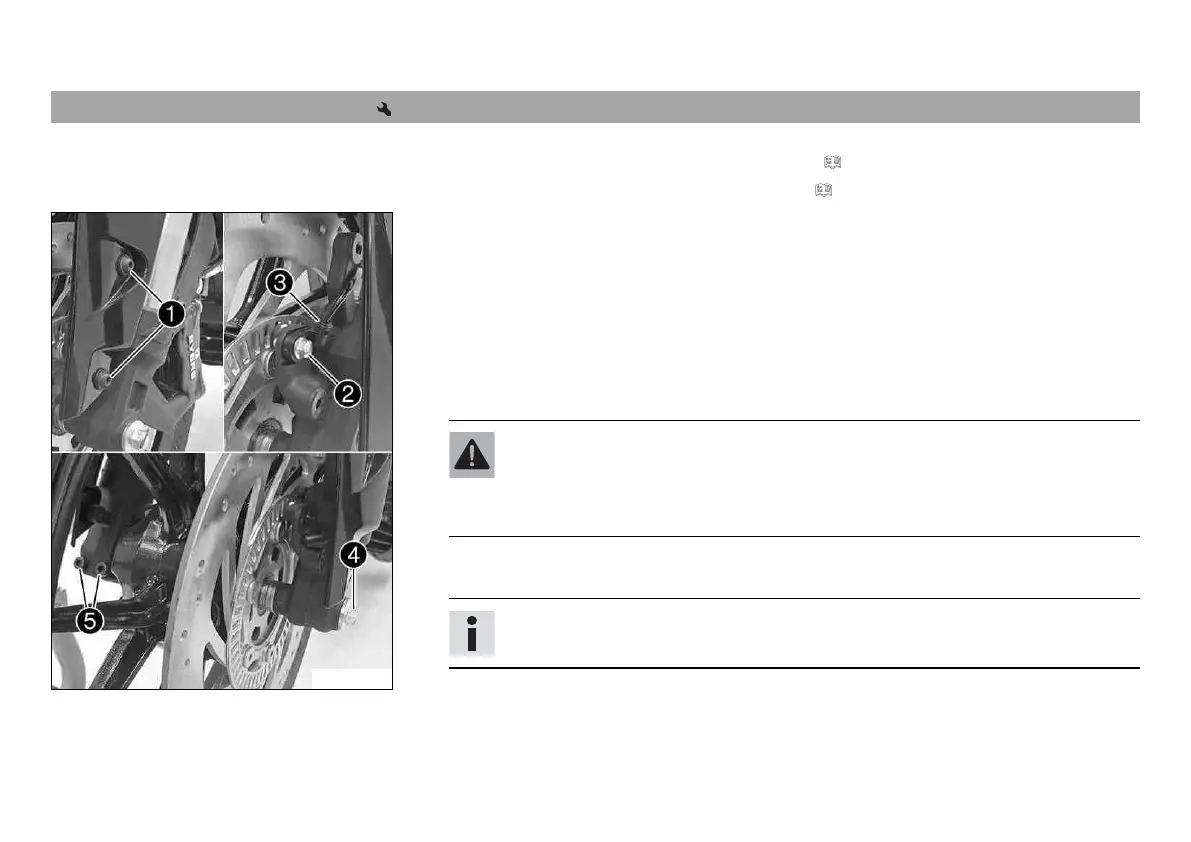

Remove screws
1
with washers and push the fender slightly to the side.
–
Remove screw
2
and pull wheel speed sensor
3
out of the hole.
–
Loosen screw
4
by several rotations.
–
Loosen screws
5
.
–
Press on screw
4
to push the wheel spindle out of the axle clamp.
–
Remove screw
4
.
Warning
Danger of accidents Reduced braking effect caused by damaged brake discs.
– Always lay the wheel down in such a way that the brake discs are not dam-
aged.
– Holding the front wheel, withdraw the wheel spindle. Take the front wheel out of the
fork.
Info
Do not pull the hand brake lever when the front wheel is removed.

KTM 125 Duke 2017 Specifications

General

Displacement	124.7 cc
Bore x Stroke	58 mm x 47.2 mm
Compression Ratio	12.6:1
Power	15 hp (11 kW) @ 10, 000 rpm
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Rear Suspension	WP monoshock
Seat Height	830 mm
Ground Clearance	185 mm
Dry Weight	137 kg
Engine Type	Single cylinder, 4-stroke
Torque	12 Nm @ 8, 000 rpm
Frame	Steel trellis frame, powder coated
Front Suspension	WP upside-down Ø 43 mm
Front Brake	Four-piston radial fixed caliper, brake disc
Rear Brake	Single-piston floating calliper, brake disc
Front Tire	110/70 x 17
Rear Tire	150/60 x 17
ABS	Bosch 9MB Two Channel ABS
