KTM 125 Duke 2017 User Manual

14 WHEELS, TIRES 123
F00745-12
–

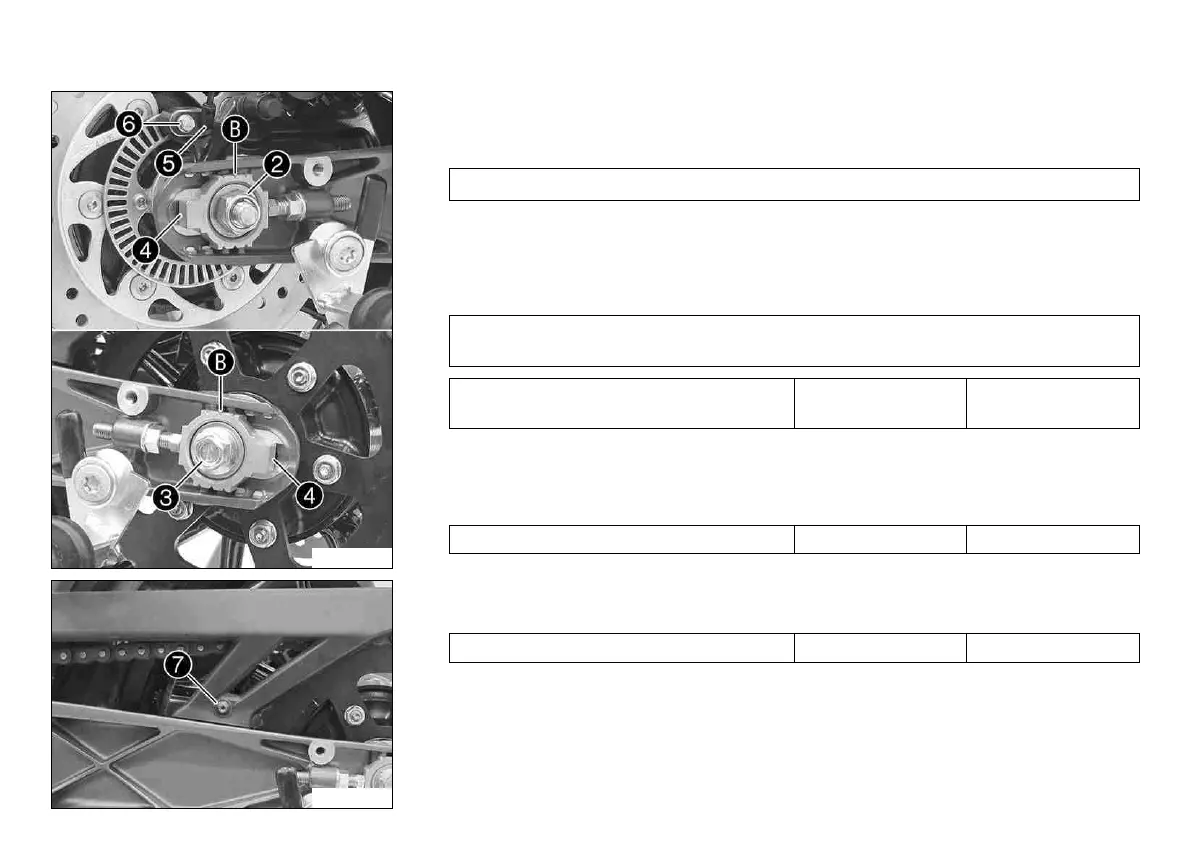

Pull the rear wheel back and mount wheel spindle
3
with the washer and chain
adjuster
4
.
Guideline
Mount left and right chain adjusters
4
in the same position.
–
Mount nut
2
and washer.
– Push the rear wheel forward so that the chain adjusters are in contact with the screws,
and tighten nut
2
.
Guideline
In order for the rear wheel to be correctly aligned, the markings on the left and right
chain adjusters must be in the same position relative to reference markings
B
.
Nut, rear wheel spindle M14x1.5 98 Nm
(72.3 lbf ft)
–
Position wheel speed sensor
5
in the drill hole.
–
Mount and tighten screw
6
.
Guideline
Screw, wheel speed sensor holder M6 8 Nm (5.9 lbf ft)
F00776-11
–
Mount and tighten screw
7
.
Guideline
Screw, chain guard EJOT PT
®
K60x30 7 Nm (5.2 lbf ft)

KTM 125 Duke 2017 Specifications

General

Displacement	124.7 cc
Bore x Stroke	58 mm x 47.2 mm
Compression Ratio	12.6:1
Power	15 hp (11 kW) @ 10, 000 rpm
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Rear Suspension	WP monoshock
Seat Height	830 mm
Ground Clearance	185 mm
Dry Weight	137 kg
Engine Type	Single cylinder, 4-stroke
Torque	12 Nm @ 8, 000 rpm
Frame	Steel trellis frame, powder coated
Front Suspension	WP upside-down Ø 43 mm
Front Brake	Four-piston radial fixed caliper, brake disc
Rear Brake	Single-piston floating calliper, brake disc
Front Tire	110/70 x 17
Rear Tire	150/60 x 17
ABS	Bosch 9MB Two Channel ABS
