KTM 1290 Super Adventure S User Manual

16 ELECTRICAL SYSTEM
268

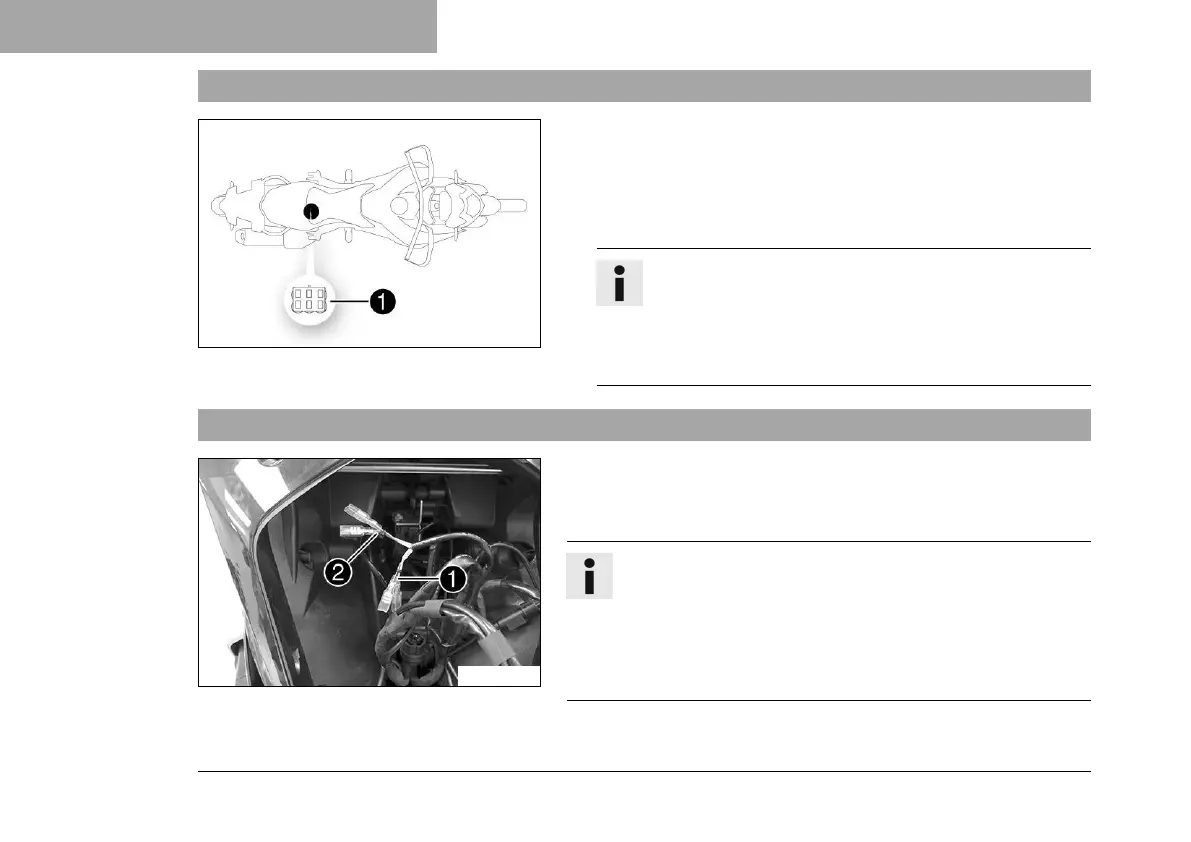

16.11 Diagnostics connector
H02029-10
Diagnostics connector
1
is located under the front rider's seat.
(Super Adventure S CN)
In the factory, a diagnostics adapter has been plugged in for
connection with a diagnostics interface which applies to all
manufacturers.
Info
Unplug the diagnostics adapter to use the KTM diag-
nostics tool.
Following completion of the diagnosis, plug the diag-
nostics adapter back in.
16.12 Front ACC1 and ACC2
P00174-10
Installation location
–
The front power supplies ACC1
1
and ACC2
2
are located
behind the headlight.
Info
The power supplies are protected by a fuse, however this
fuse also protects other power consumers.
The maximum continuous load is therefore significantly
lower than the value of the fuse.
Do not use a stronger fuse.

KTM 1290 Super Adventure S Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1301 cc
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Dry Weight	220 kg
Front Suspension	WP Semi-active Suspension USD Ø 48 mm
Rear Suspension	WP Semi-active Suspension Monoshock
Traction Control	Motorcycle Traction Control (MTC)
Power	160 hp
Torque	138 Nm
Fuel Capacity	23 liters
Front Brakes	2 x Brembo 4-piston radial calipers, 320 mm discs
Rear Brakes	Brembo 2-piston caliper, 267 mm disc
ABS	Bosch 9ME Combined ABS
Wheelbase	1560 mm
