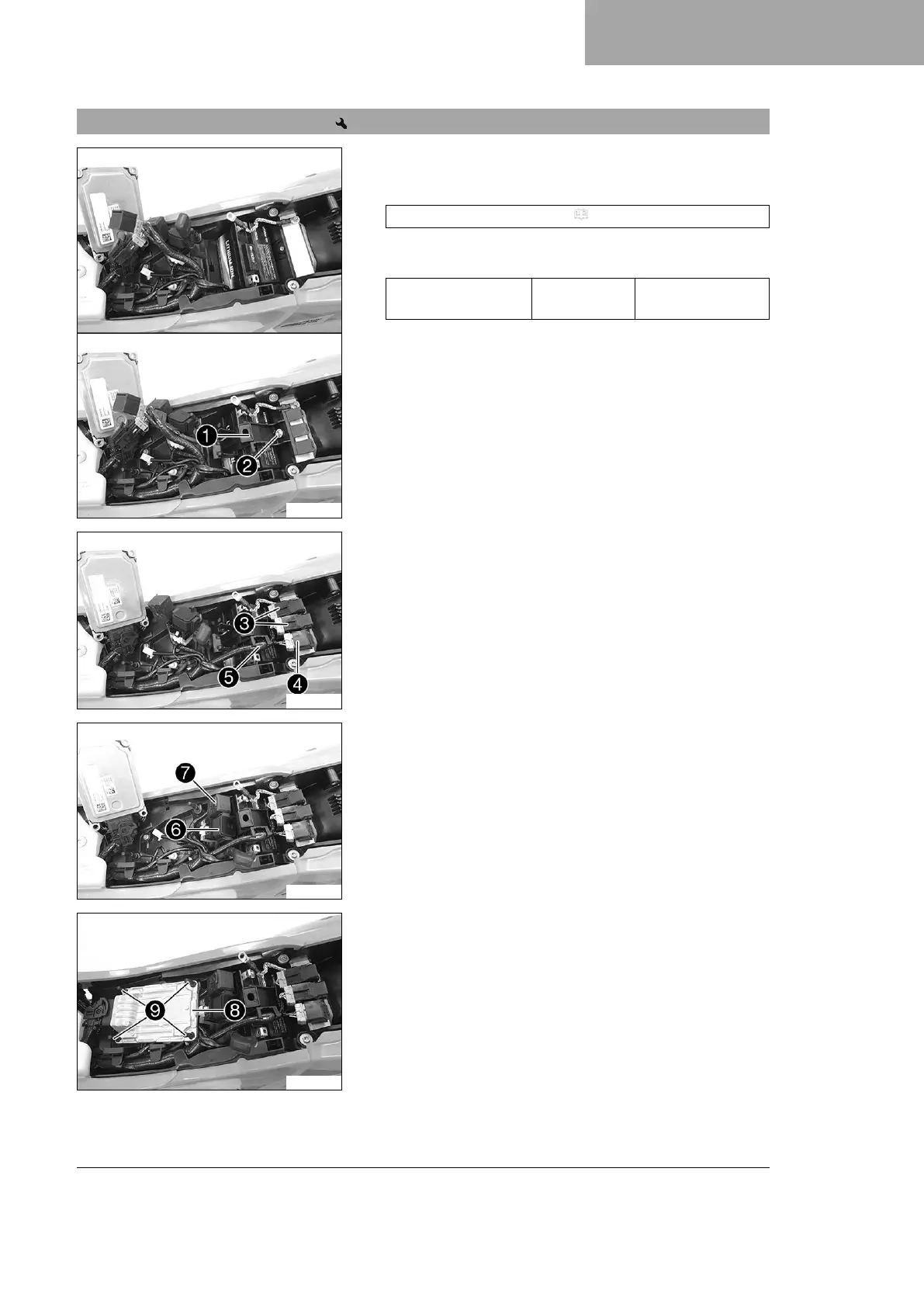

15.2 Installing the 12-V battery
S03494-10
Main work
– Insert the 12 V battery into the battery compartment with the
terminals facing forward and secure with holding bracket
1
.
12-V battery (HJTZ5S-FP-C) ( p. 161)
–
Mount and tighten screw
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
S03492-11
–
Place relays
3
and connector
4
on the battery compart-
ment and attach the wiring harness
5
.
S03491-11
–
Attach starter relay
6
and fuse box
7
to the battery com-
partment.
S03490-11
–
Secure EFI control unit
8
with the rubber lugs
9
.
