17 TUNING THE ENGINE
136
–
Tighten nut
4
.
–
Tighten nut
2
.
–
Slide on sleeve
1
.
– Check the throttle grip for smooth operation.
Finishing work
– Check the throttle cable play. ( p. 135)

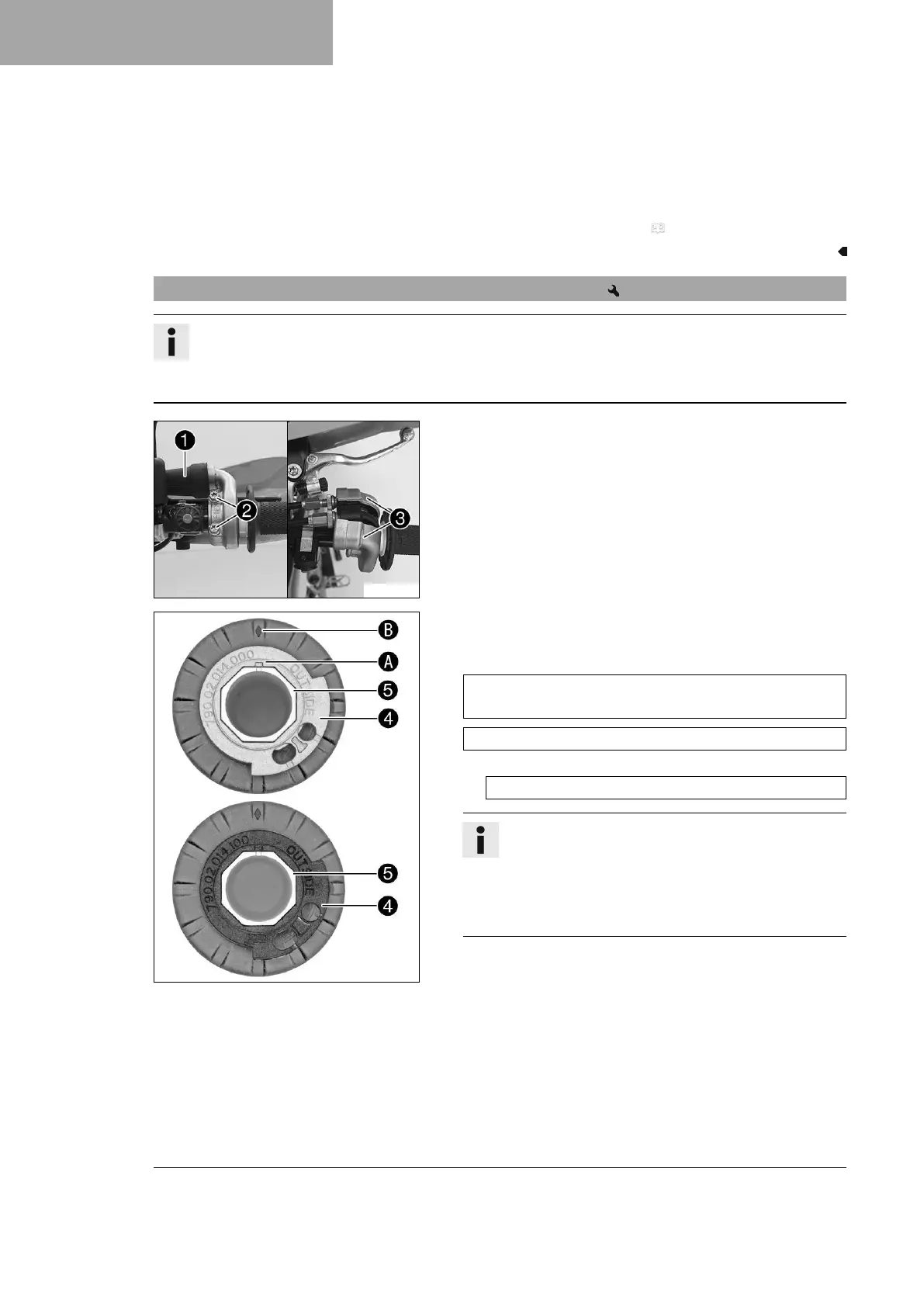

17.3 Setting the characteristic map of the throttle response
Info
On the throttle grip, the characteristic map of the throttle response is changed by changing the guide
plate.
A guide plate with a different characteristic map is supplied.
E01228-10
Main work
–
Push back sleeve
1
.
–
Remove screws
2
and half-shells
3
.
– Detach the throttle cables and take off the grip tube.
102246-10
–
Remove guide plate
4
from handle tube
5
.
– Position the required guide plate on the grip tube.
Guideline
The label OUTSIDE must be visible. Marking
A
must be
positioned at marking
B
.
Grey guide plate (79002014000)
Alternative 1
Black guide plate (79002014100)
Info
The gray guide plate opens the throttle valve more
slowly.
The black guide plate opens the throttle valve more
quickly.
The gray guide plate is mounted upon delivery.
