SERVICE WORK ON THE CHASSIS 12
93

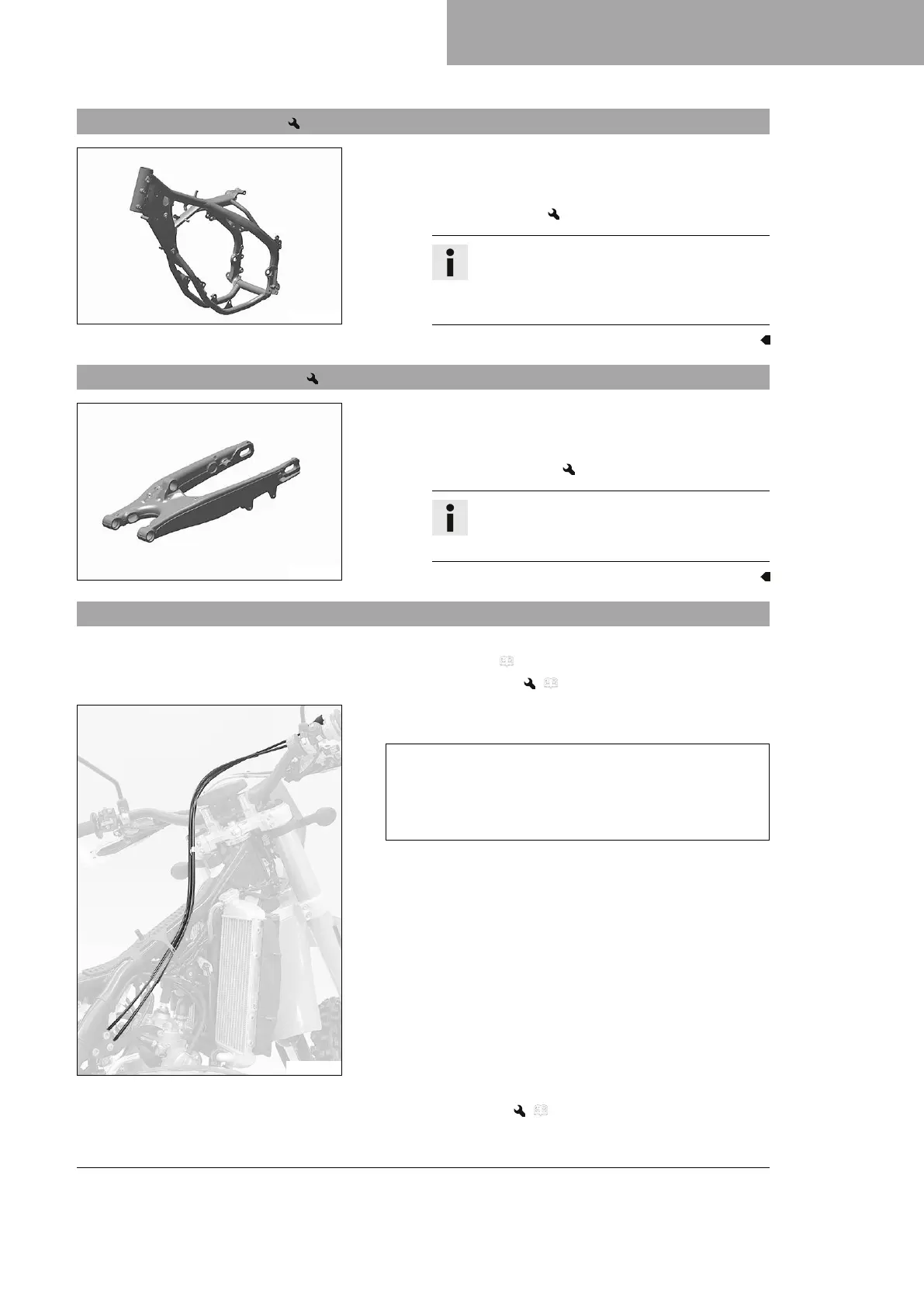

12.38 Checking the frame
S01316-10
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a
mechanical impact:
– Change the frame.
Info
Always replace a frame that has been dam-
aged due to a mechanical impact. Repair of the
frame is not authorized by KTM.
12.39 Checking the link fork
S01317-10
– Check the link fork for damage, cracking, and deformation.
» If the link fork shows signs of damage, cracking, or defor-
mation:
– Change the link fork.
Info
Always replace a damaged link fork. Repairing
the link fork is not authorized by KTM.
12.40 Checking throttle cable routing
Preparatory work
– Remove the seat. ( p. 79)
– Remove the fuel tank. ( p. 84)
E01230-01
Main work
– Check throttle cable routing.
Both throttle cables must be routed, side by side, on the
back of the handlebars, above the fuel tank bracket on the
right of the frame to the throttle valve body. Both throttle
cables must be secured behind the rubber strap of the fuel
tank support.
» If the throttle cable routing is not as specified:
– Correct throttle cable routing.
Finishing work
– Install the fuel tank. ( p. 86)
