ELECTRICAL SYSTEM 14
115

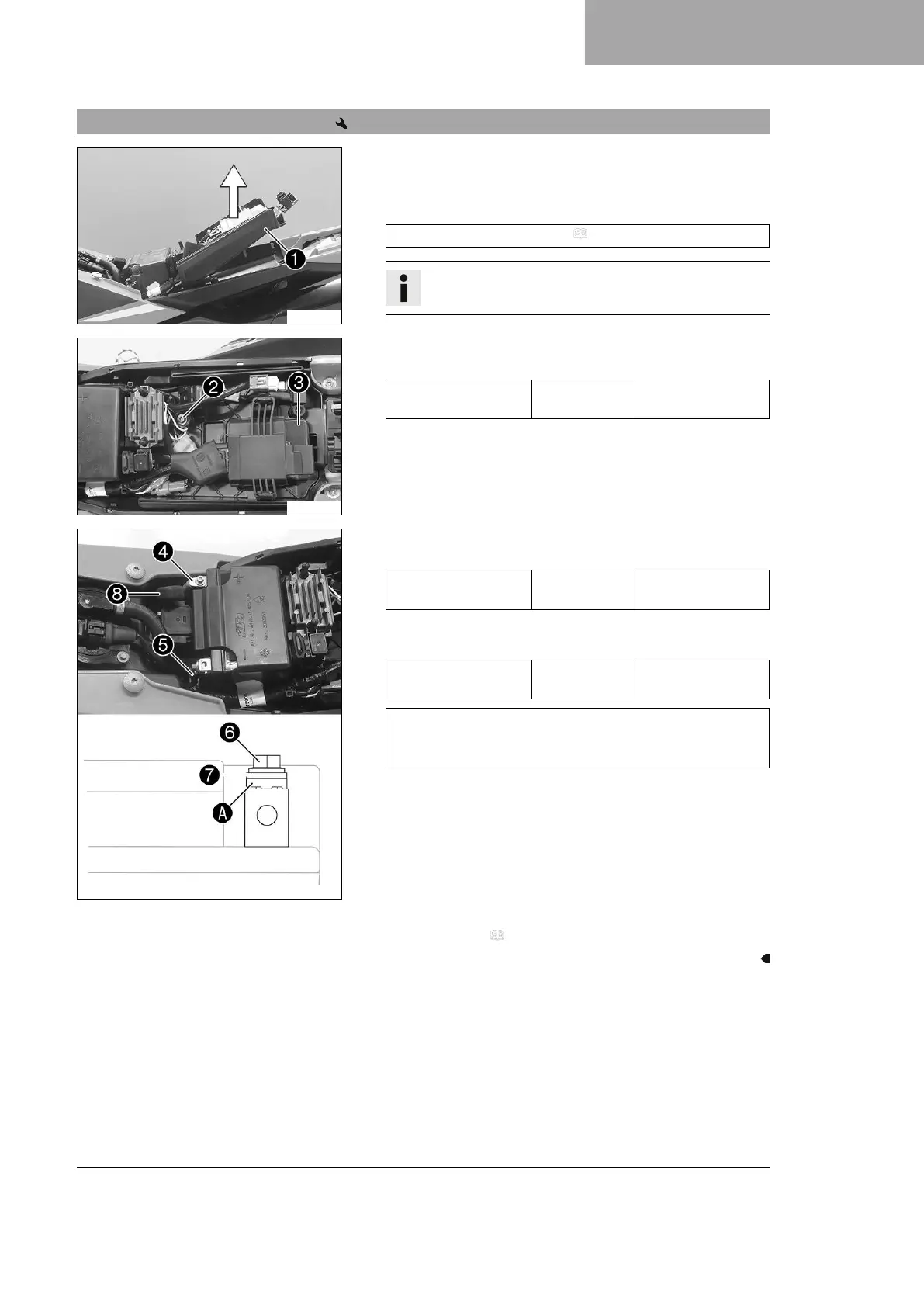

14.2 Installing the 12-V battery
F03731-11
Main work
–
Pull up the battery holding bracket
1
, put the 12-V bat-
tery into the battery compartment with the terminals facing
upwards and secure with the battery holding bracket
1
.
12 V battery (HJTZ5S-FP-C) ( p. 149)
Info
Ensure that the cable is routed correctly.
F03730-11
–
Mount and tighten screw
2
.
Guideline
Screw, battery hold-
ing bracket
M6 5 Nm (3.7 lbf ft)
–
Attach the engine control unit
3
to the holder.
F03732-10
–
Connect positive cable
4
to the 12-V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
–
Connect negative cable
5
to the 12 V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
Contact disks
A
must be mounted under screws
6
and
cable sockets
7
with the claws toward the battery termi-
nal.
–
Slide positive terminal cover
8
over the positive terminal.
Finishing work
– Mount the seat. ( p. 71)
