KTM 450 SX-F 2023 User Manual

TUNING THE CHASSIS 10
41
F03630-10
Main work

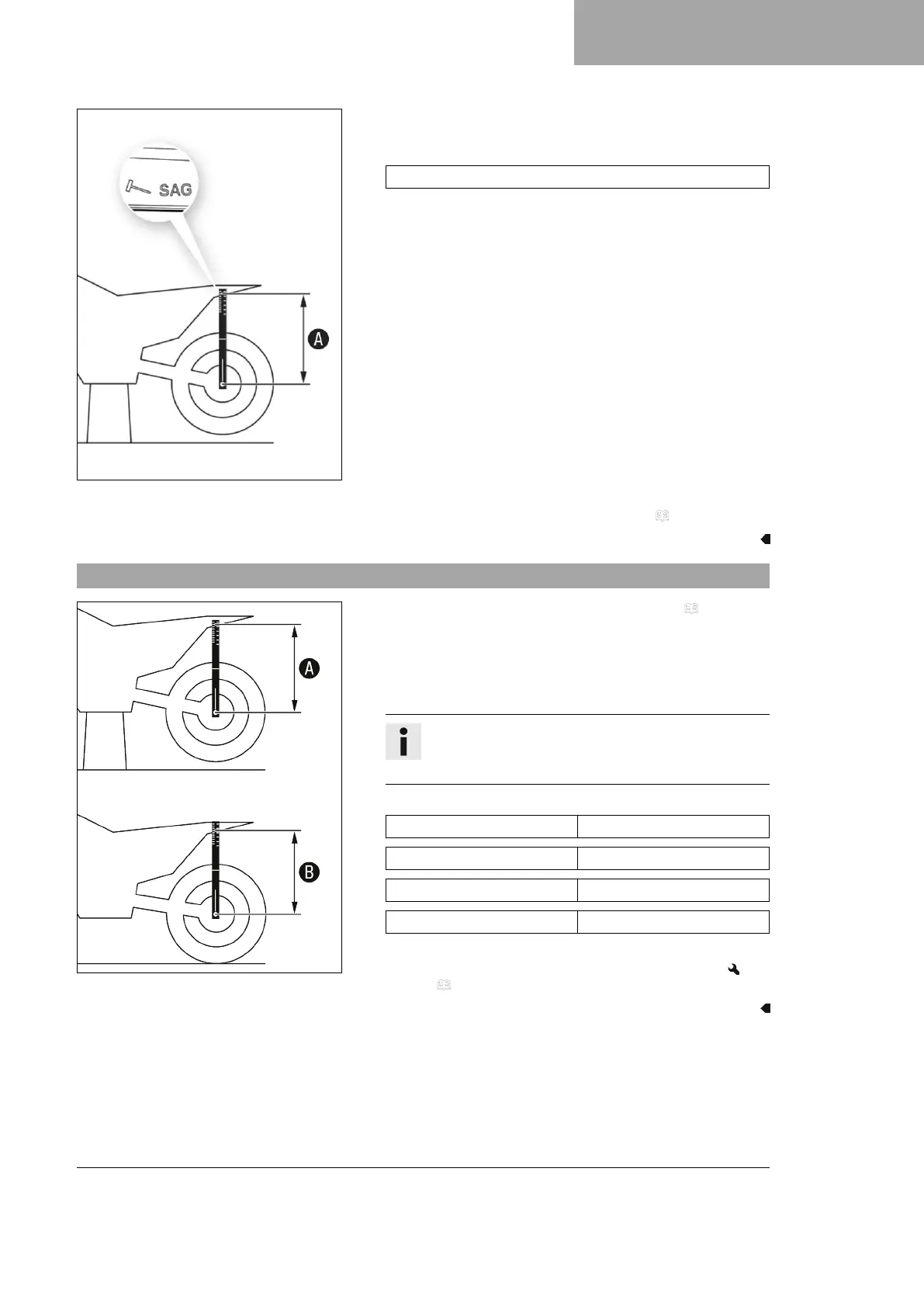

– Position the sag gage in the rear axle and measure the
distance to marking SAG on the rear fender.
Sag gauge (00029090200)
–
Note the value as dimension
A
.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 53)
10.8 Checking the static sag of the shock absorber
402416-10
–
Measure dimension
A
of rear wheel unloaded. ( p. 40)
– Hold the motorcycle upright with aid of an assistant.
– Measure the distance again between the rear axle and mark-
ing SAG on the rear fender using the sag gage.
–
Note the value as dimension
B
.
Info
The static sag is the difference between
measurements
A
and
B
.
– Check the static sag.
Static sag (SX‑F EU) 35 mm (1.38 in)
Static sag (SX‑F US) 35 mm (1.38 in)
Static sag (XC‑F US) 35 mm (1.38 in)
Static sag (Factory Edition) 35 mm (1.38 in)
» If the static sag is less or more than the specified value:
– Adjust the spring preload of the shock absorber.
( p. 42)

KTM 450 SX-F 2023 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	449.9 cc
Bore x Stroke	95 mm x 63.4 mm
Starter	Electric starter
Compression Ratio	13.1:1
Transmission	5-speed
Final Drive	Chain
Cooling	Liquid-cooled
Frame	Central Double-Cradle Type 25CrMo4 Steel
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Ground Clearance	370 mm
Fuel System	Keihin EFI, 44 mm
Front Brake	260 mm disc
Rear Brake	220 mm disc
Fuel Tank Capacity	7.2 L
