KTM 450 SX-F 2023 User Manual

14 ELECTRICAL SYSTEM
118
F03751-10

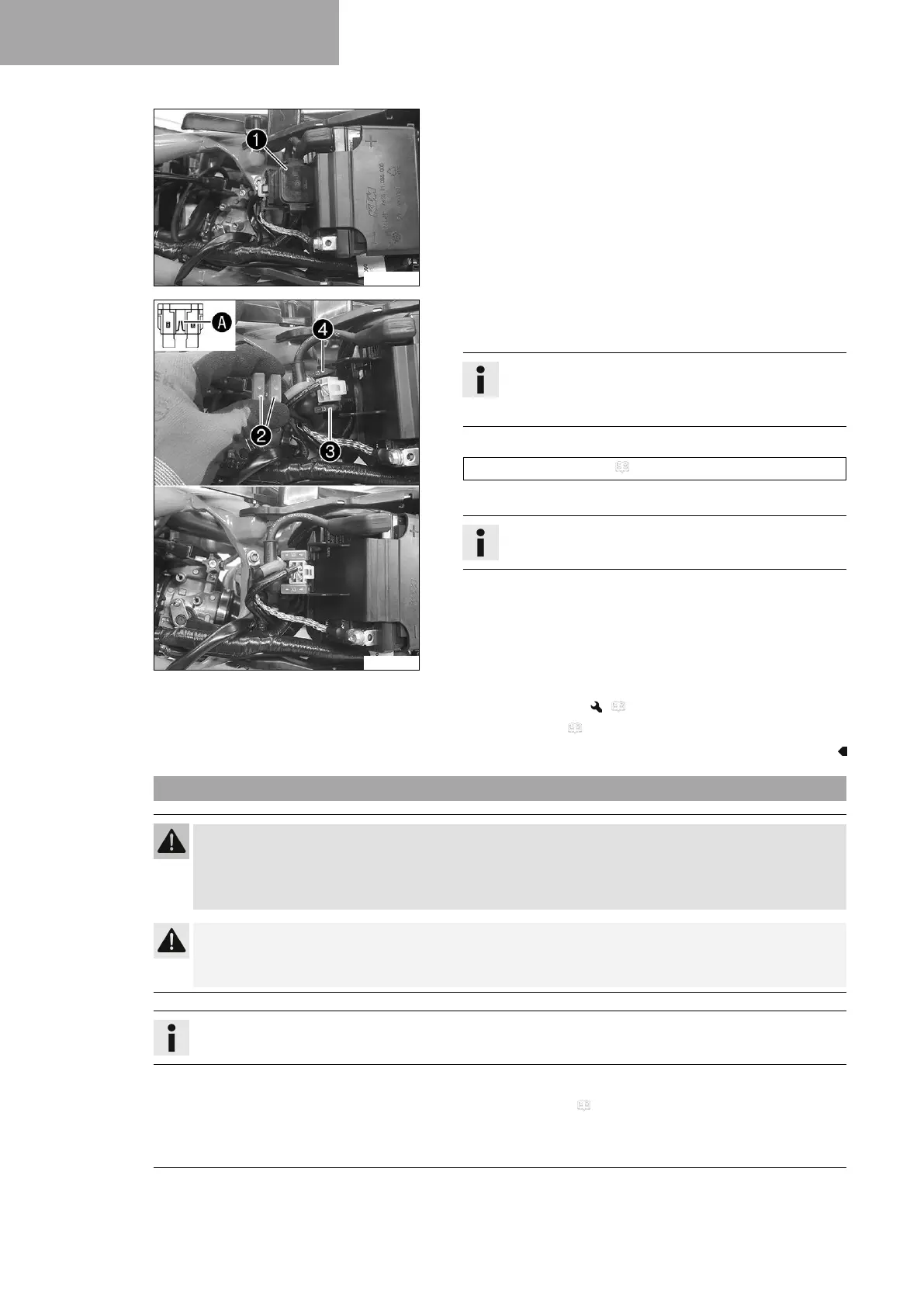

Main work
–
Pull starter relay
1
from the holder.
F03752-10
–
Take off protection caps
2
.
–
Remove faulty main fuse
3
.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
4
is located in the starter relay.
– Insert a new main fuse.
Fuse (58011109110) ( p. 149)
– Check that the electrical system is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
– Mount the protection caps.
– Mount the starter relay onto the holder and route the cable.
Finishing work
– Install the fuel tank. ( p. 80)
– Mount the seat. ( p. 71)
14.5 Changing the fuse of the fuel pump
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
Caution
Danger of burns The voltage regulator gets very hot when the vehicle is driven.
– Allow the voltage regulator to cool down before performing any work.
Info
The fuel pump is protected by the fuel pump fuse. This is located under the seat.
Preparatory work
– Remove the seat. ( p. 71)
