KTM 450 SX-F 2023 User Manual

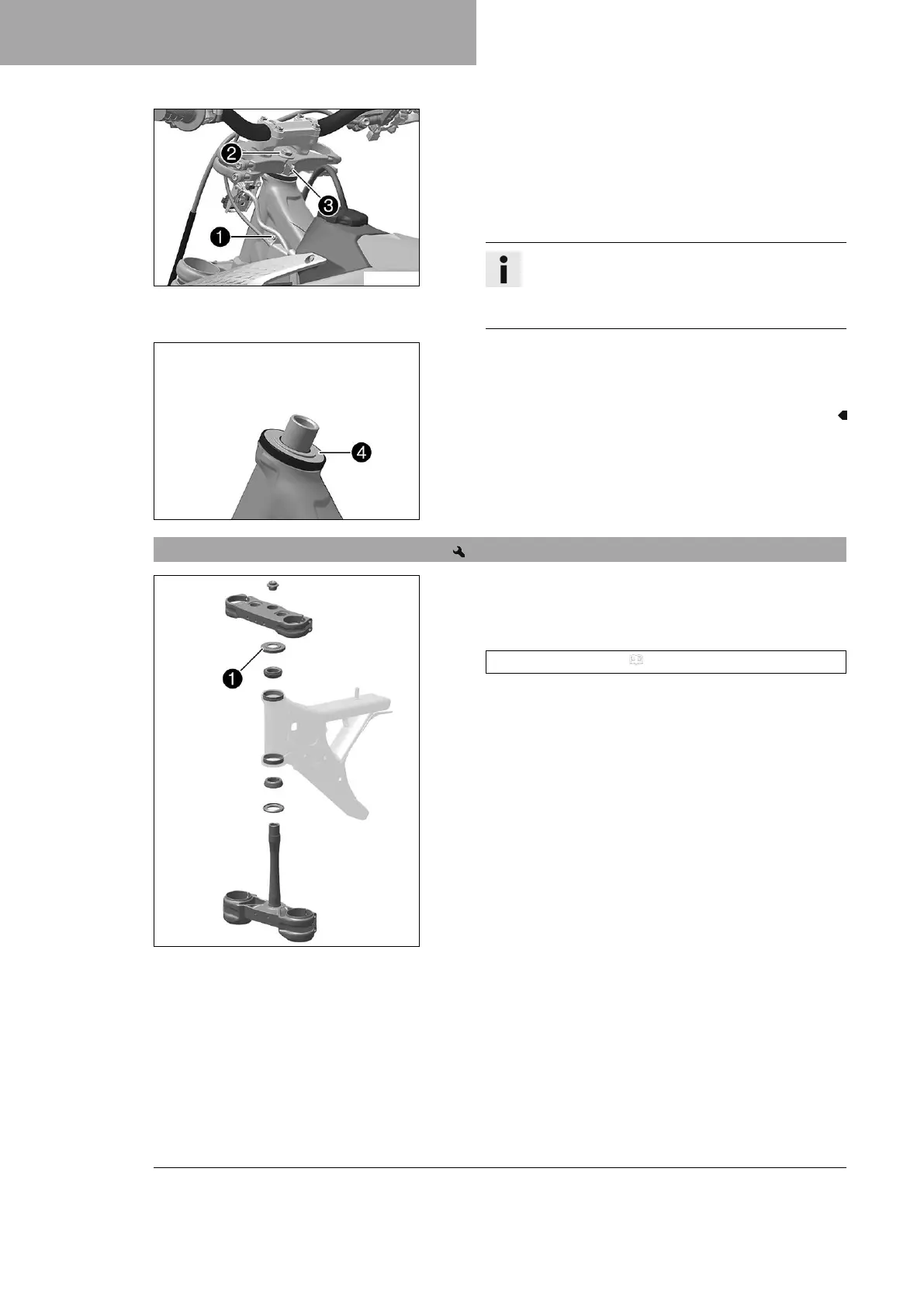

11 SERVICE WORK ON THE CHASSIS
60
Z03286-10
(Factory Edition)
–
Remove screw
1
. Detach the wiring harness.
–
Remove screw
2
.
–
Remove screw
3
.
– Take off the upper triple clamp with the handlebar and
place to one side.
Info
Cover the components to protect them against dam-
age.
Do not kink the cables or lines.
Z03288-10
–
Remove steering head seal
4
.
– Remove the lower triple clamp with steering stem.
– Remove the upper steering head bearing.
11.12 Installing the lower triple clamp
A01192-10
Main work
(All standard models)
– Clean the bearing and sealing elements, check for damage,
and grease.
High viscosity grease ( p. 159)
– Insert the lower triple clamp with the steering stem. Mount
upper steering head bearing.
–
Push on steering head seal
1
.

KTM 450 SX-F 2023 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	449.9 cc
Bore x Stroke	95 mm x 63.4 mm
Starter	Electric starter
Compression Ratio	13.1:1
Transmission	5-speed
Final Drive	Chain
Cooling	Liquid-cooled
Frame	Central Double-Cradle Type 25CrMo4 Steel
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Ground Clearance	370 mm
Fuel System	Keihin EFI, 44 mm
Front Brake	260 mm disc
Rear Brake	220 mm disc
Fuel Tank Capacity	7.2 L
