KTM 450 SX-F 2023 User Manual

SERVICE WORK ON THE CHASSIS 11
65
Finishing work
– Remove the motorcycle from the lift stand. ( p. 53)

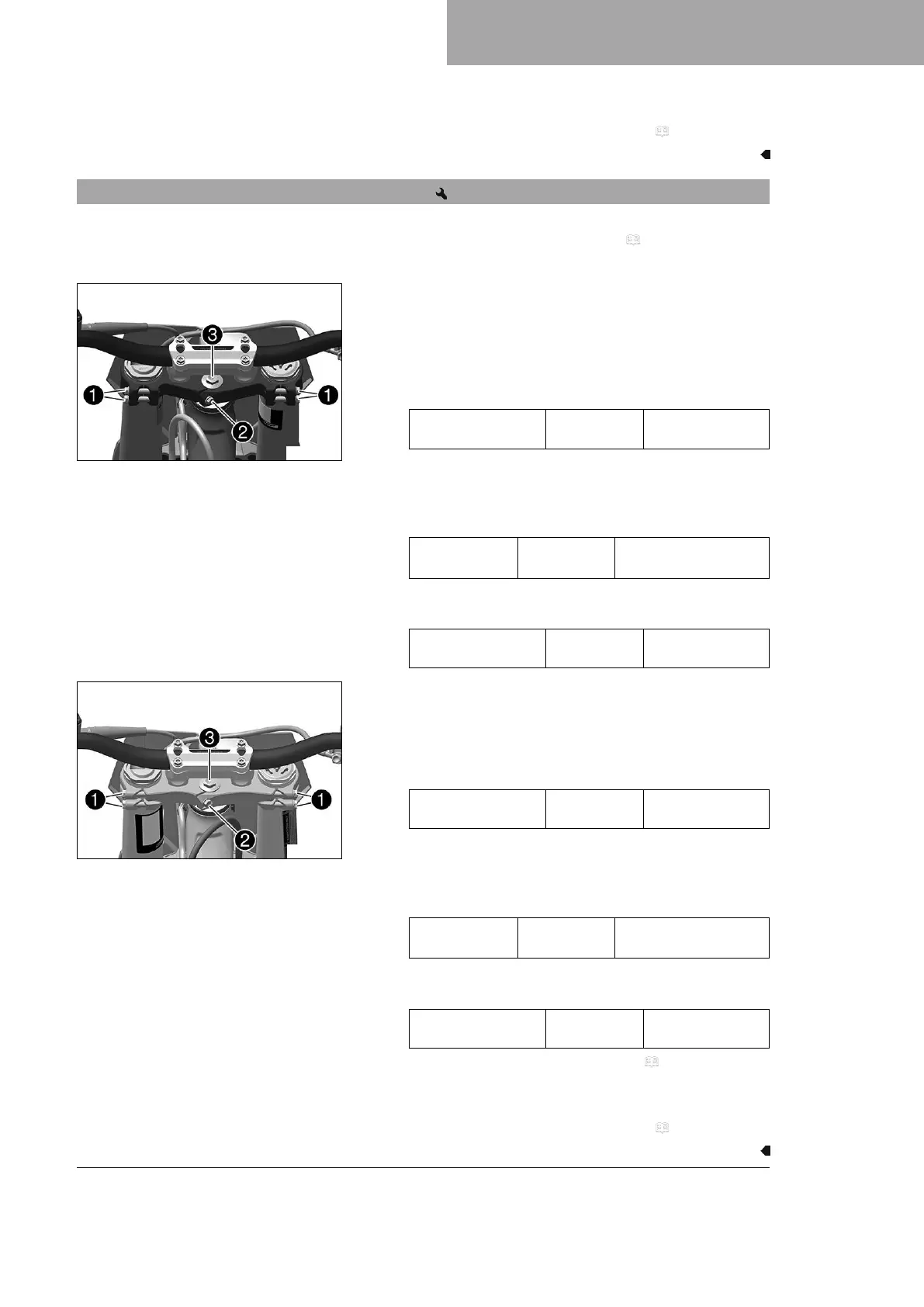

11.14 Adjusting the steering head bearing play
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 53)
– Take off the handlebar cushion.
S05338-10
Main work
(All standard models)
–
Loosen screws
1
.
–
Remove screw
2
.
–
Loosen and retighten screw
3
.
Guideline
Screw, top steering
head
M20x1.5 12 Nm (8.9 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple
clamp to avoid stresses.
–
Mount and tighten screw
2
.
Guideline
Screw, top
steering stem
M8 20 Nm (14.8 lbf ft)
Loctite
®
243™
–
Tighten screws
1
.
Guideline
Screw, top triple
clamp
M8 17 Nm
(12.5 lbf ft)
Z03287-10
(Factory Edition)
–
Loosen screws
1
.
–
Remove screw
2
.
–
Loosen and retighten screw
3
.
Guideline
Screw, top steering
head
M20x1.5 12 Nm (8.9 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple
clamp to avoid stresses.
–
Mount and tighten screw
2
.
Guideline
Screw, top
steering stem
M8 20 Nm (14.8 lbf ft)
Loctite
®
243™
–
Tighten screws
1
.
Guideline
Screw, top triple
clamp
M8 17 Nm
(12.5 lbf ft)
– Check the steering head bearing for play. ( p. 64)
Finishing work
– Mount the handlebar cushion.
– Remove the motorcycle from the lift stand. ( p. 53)
