SERVICE WORK ON THE CHASSIS 11
89

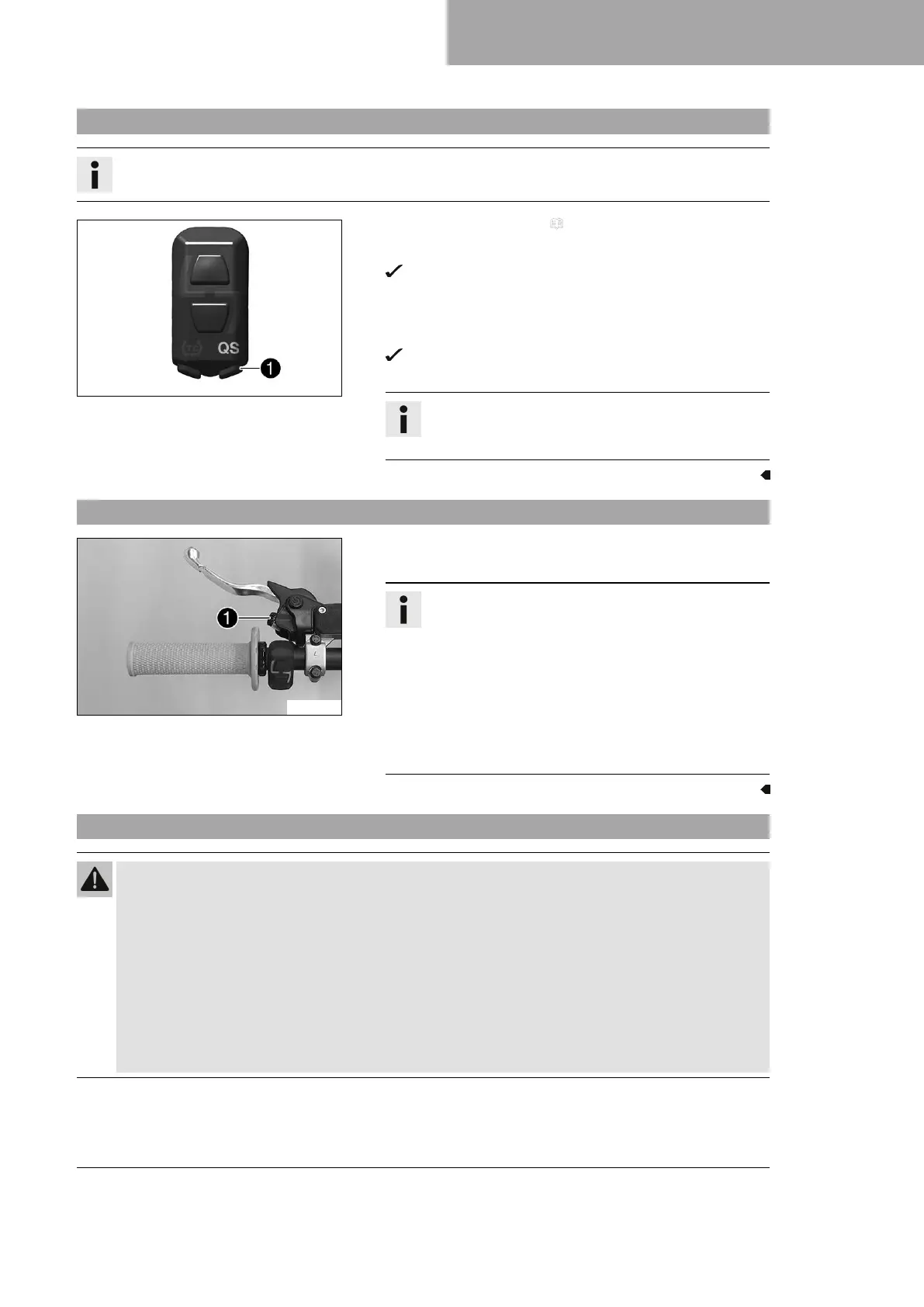

11.44 Programming the quickshifter
Info
If the shifting performance of the quickshifter starts to decrease, it must be reprogrammed.
F03760-12
– Carry out start procedure. ( p. 27)
–
Press and hold the QS button
1
for at least 10 seconds.
The QS indicator lamp flashes.
– Pull the clutch lever, engage first-gear and press the shift lever
as far down as it will go for at least a second.
–
Briefly press the QS button
1
.
The QS indicator lamp lights up blue, the teaching proce-
dure was successful.
Info
If the quickshifter cannot be activated, the teaching
procedure was unsuccessful and must be repeated.
11.45 Adjusting the basic position of the clutch lever
F03647-11
– Adjust the basic position of the clutch lever to your hand size
by turning adjusting screw
1
.
Info
Turn the adjusting screw counterclockwise to decrease
the distance between the clutch lever and the handle-
bar.
Turn the adjusting screw clockwise to increase the
distance between the clutch lever and the handlebar.
The range of adjustment is limited.
Only turn the adjusting screw by hand, and do not use
force.
Do not make any adjustments while riding.
11.46 Checking/correcting the fluid level of the hydraulic clutch
Warning
Skin irritation Brake fluid causes skin irritation.
– Keep brake fluid out of the reach of children.
– Wear suitable protective clothing and safety glasses.
– Do not allow brake fluid to come into contact with the skin, the eyes or clothing.
– Consult a doctor immediately if brake fluid has been swallowed.
– Rinse the affected area with plenty of water in the event of contact with the skin.
– Rinse eyes thoroughly with water immediately and consult a doctor if brake fluid comes into contact
with the eyes.
– If brake fluid spills on to your clothing, change the clothing.
