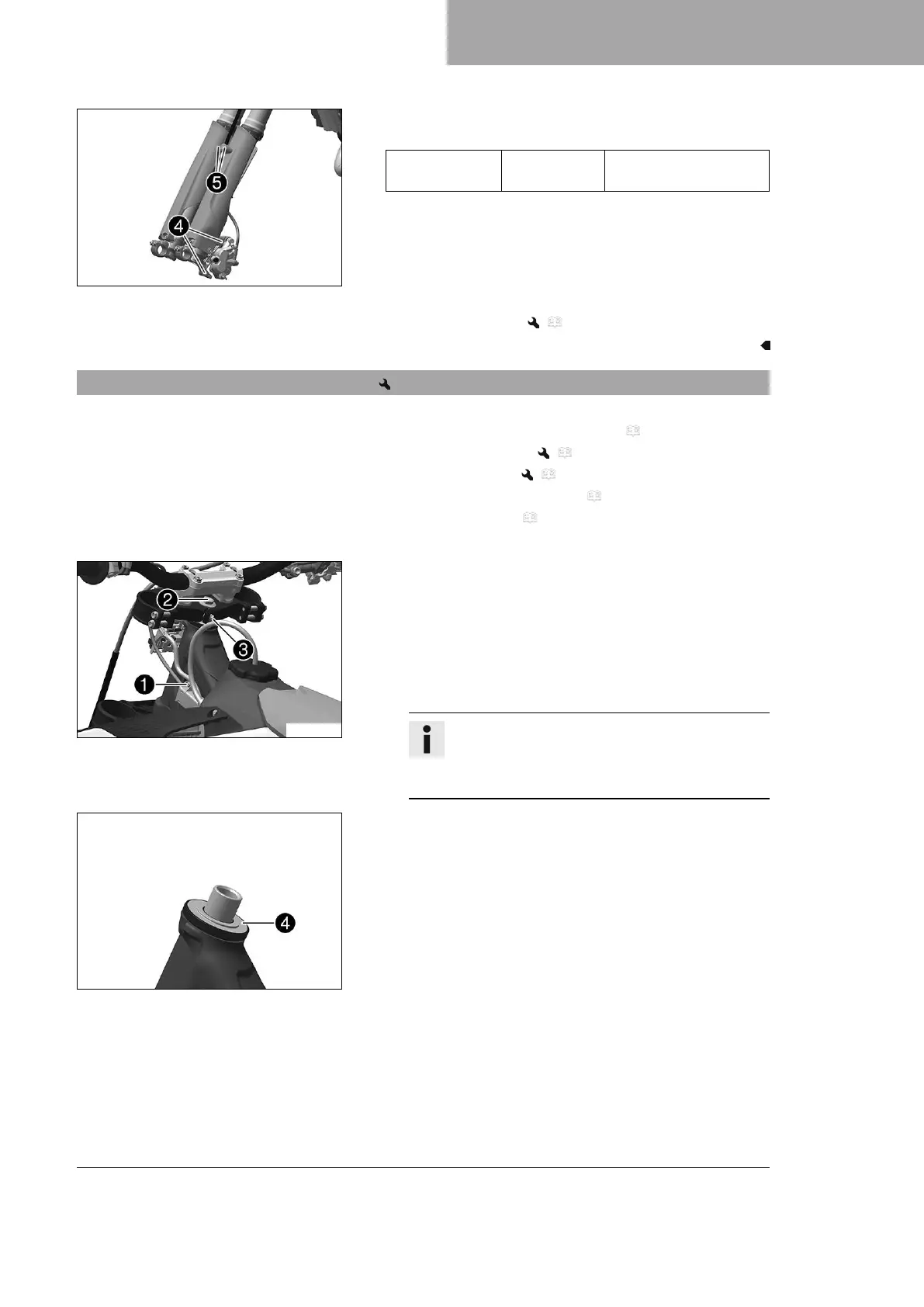

SERVICE WORK ON THE CHASSIS 11
59
S05330-11
–
Position the brake caliper. Mount and tighten screws
4
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Position the brake line and the clamp. Mount and tighten
screws
5
.
Finishing work
– Install the front wheel. ( p. 108)
11.11 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 53)
– Remove the front wheel. ( p. 106)
– Remove the fork legs. ( p. 57)
– Remove the start number plate. ( p. 66)
– Remove front fender. ( p. 66)
– Take off the handlebar cushion.
S05332-10
Main work
(All standard models)
–
Remove screw
1
. Detach the wiring harness.
–
Remove screw
2
.
–
Remove screw
3
.
– Take off the upper triple clamp with the handlebar and
place to one side.
Info
Cover the components to protect them against dam-
age.
Do not kink the cables or lines.
S05333-10
–
Remove steering head seal
4
.
– Remove the lower triple clamp with steering stem.
– Remove the upper steering head bearing.
