6 CONTROLS
16

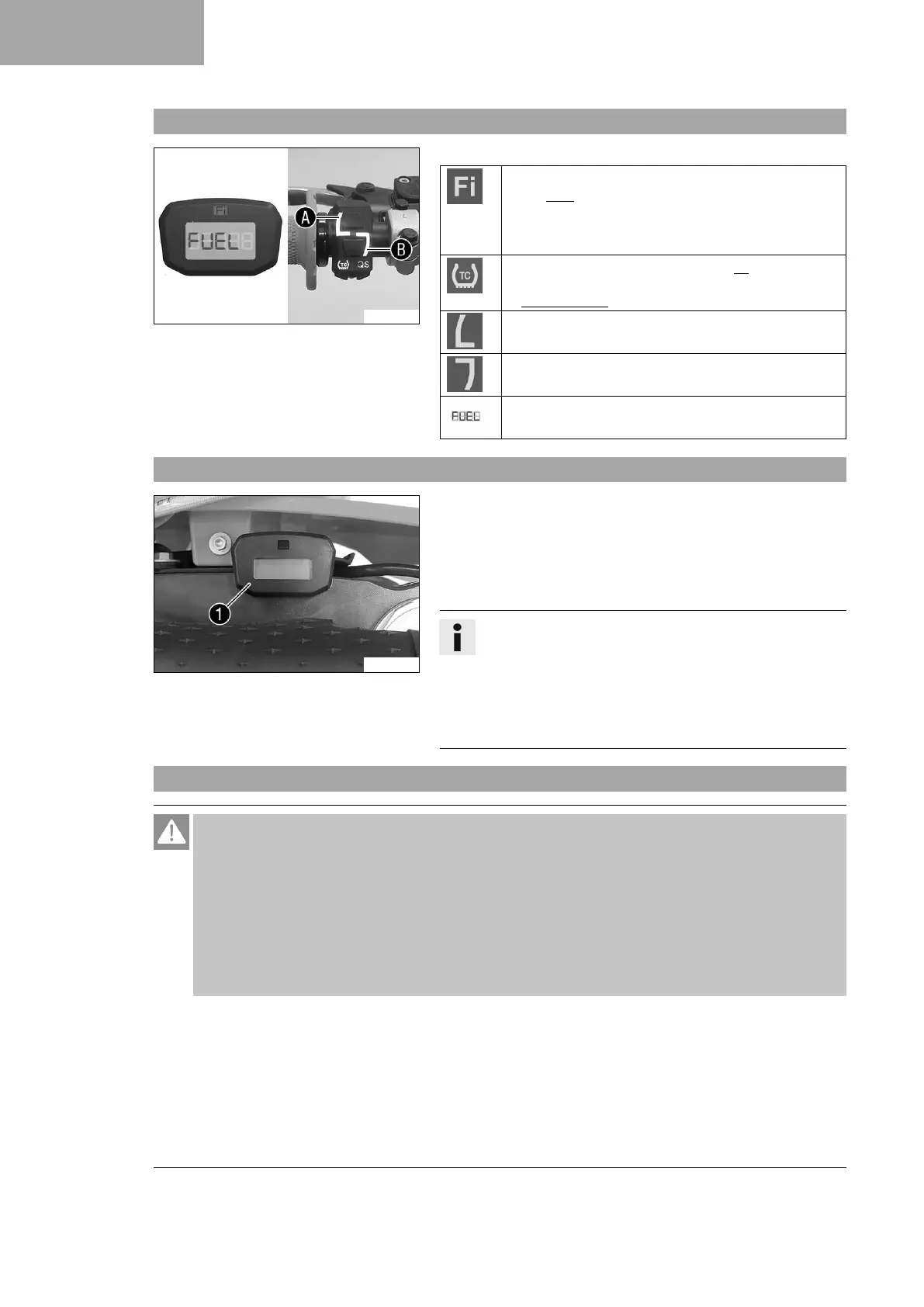

6.8 Overview of indicator lights (XC‑F US)
A01223-10
Possible states
Malfunction indicator lamp lights up/flashes orange
– The OBD has detected a malfunction in the vehi-
cle electronics. The malfunction indicator lamp also
lights up if traction control is activated and the speed
limiter intervenes.
TC indicator lamp lights up orange – TC is enabled or
is currently intervening. The TC indicator lamp flashes
if launch control is activated.
Indicator lamp
A
lights up white – STANDARD map-
ping is activated.
Indicator lamp
B
lights up green – ADVANCED map-
ping is activated.
FUEL is displayed – The fuel level has reached the
reserve mark.
6.9 Combination instrument
F03765-10
The combination instrument
1
is attached in front of the handle-
bar.
The combination instrument shows the total number of operating
hours of the engine.
The operating hour counter begins counting when the engine is
started and stops when the engine is switched off.
Info
Nothing can be cleared or adjusted on the combination
instrument.
As soon as the diagnostics tool is connected, the service
hour counter starts running.
Before longer diagnostic sessions, unplug the service hour
counter behind the start number plate.
6.10 Opening the fuel tank filler cap
Danger
Fire hazard Fuel is highly flammable.
The fuel in the fuel tank expands when warm and can escape if overfilled.
– Do not fuel the vehicle in the vicinity of open flames or lit cigarettes.
– Switch off the engine for refueling.
– Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.
– If any fuel is spilled, wipe it off immediately.
– Observe the specifications for refueling.
