KTM 500 EXC-F 2022 User Manual

13 BRAKE SYSTEM
106
100397-01
–

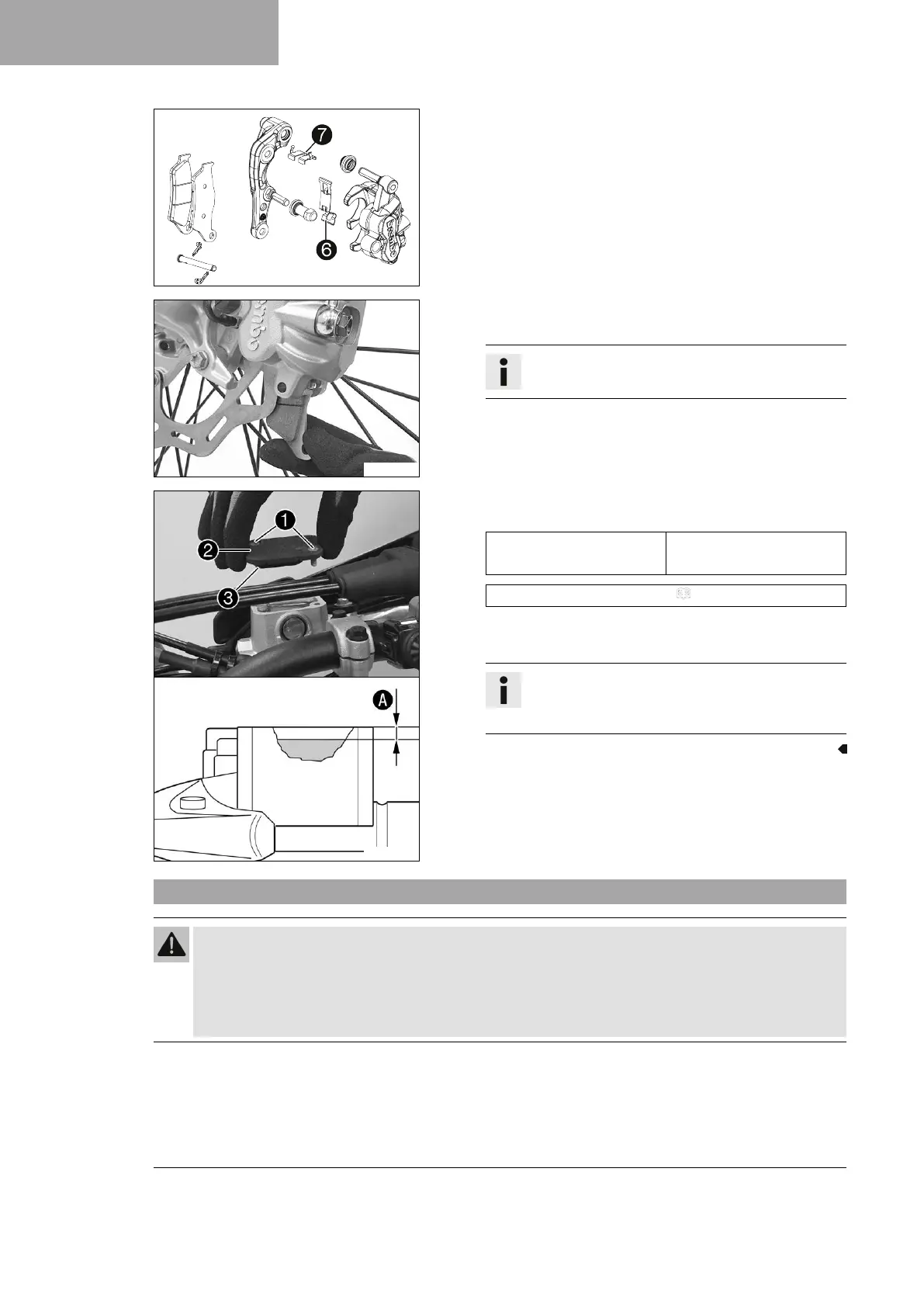

Check that spring plate
6
in the brake caliper and brake
pad sliding plate
7
in the brake caliper bracket are
seated correctly.
E00345-10
–
Insert the new brake linings, insert the pin, and mount the
cotter pins.
Info
Always change the brake linings in pairs.
– Operate the hand brake lever repeatedly until the brake
linings are in contact with the brake disc and there is a
pressure point.
V01771-10
–
Correct the brake fluid level to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 164)
–
Position cover
2
with membrane
3
. Mount and tighten
screws
1
.
Info
Use water to immediately clean up any brake fluid
that has overflowed or spilled.
13.7 Checking the free travel of foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the foot brake lever in accordance with the specification.

KTM 500 EXC-F 2022 Specifications

General

Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XPLOR PDS shock absorber
Ground Clearance	355 mm
Seat Height	960 mm
ABS	No
Engine Type	Single-cylinder, 4-stroke
Fuel System	Keihin EFI, 42 mm throttle body
Front Brake	Disc brake
Rear Brake	Disc brake, 220 mm
Fuel Tank Capacity	8.5 liters
Weight (without fuel)	106.5 kg
Displacement	510.9 cm³
