KTM 500 EXC-F 2022 User Manual

6 CONTROLS
18

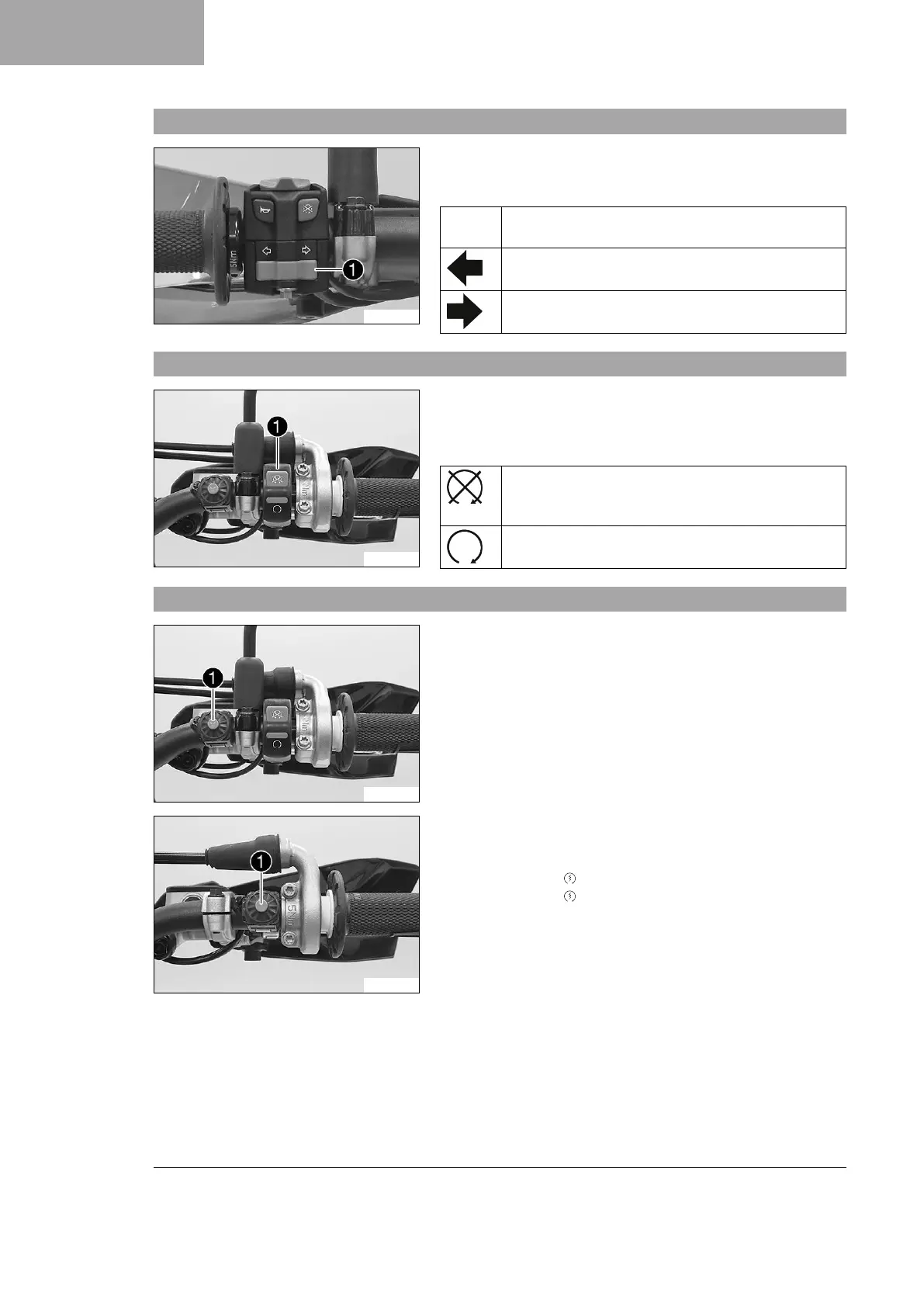

6.8 Turn signal switch (All EU models)
S01304-10
The turn signal switch
1
is fitted on the left side of the handle-
bar.
Possible states
Turn signal off – Turn signal switch is in the central
position.
Turn signal, left, on – The turn signal switch is turned
to the left.
Turn signal, right, on – The turn signal switch is
turned to the right.
6.9 Emergency OFF switch
V01749-10
(All EU models)
The emergency OFF switch
1
is fitted on the right side of the
handlebar.
Possible states
Ignition off – In this position, the ignition circuit
is interrupted, a running engine stops, and a
non-running engine will not start.
Ignition on – In this position, the ignition circuit is
closed and the engine can be started.
6.10 Start button
V01749-11
(All EU models)
Start button
1
is fitted on the right side of the handlebar.
V01750-10
(XCF‑W)
Start button
1
is fitted on the right side of the handlebar.
Possible states
• The start button is in the basic position
• The start button is pressed – The starter motor is actuated
in this position.

KTM 500 EXC-F 2022 Specifications

General

Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XPLOR PDS shock absorber
Ground Clearance	355 mm
Seat Height	960 mm
ABS	No
Engine Type	Single-cylinder, 4-stroke
Fuel System	Keihin EFI, 42 mm throttle body
Front Brake	Disc brake
Rear Brake	Disc brake, 220 mm
Fuel Tank Capacity	8.5 liters
Weight (without fuel)	106.5 kg
Displacement	510.9 cm³
