SERVICE WORK ON THE CHASSIS 12
91
E00330-10
Main work
–
Loosen nut
1
.
–
Loosen nuts
2
.
–

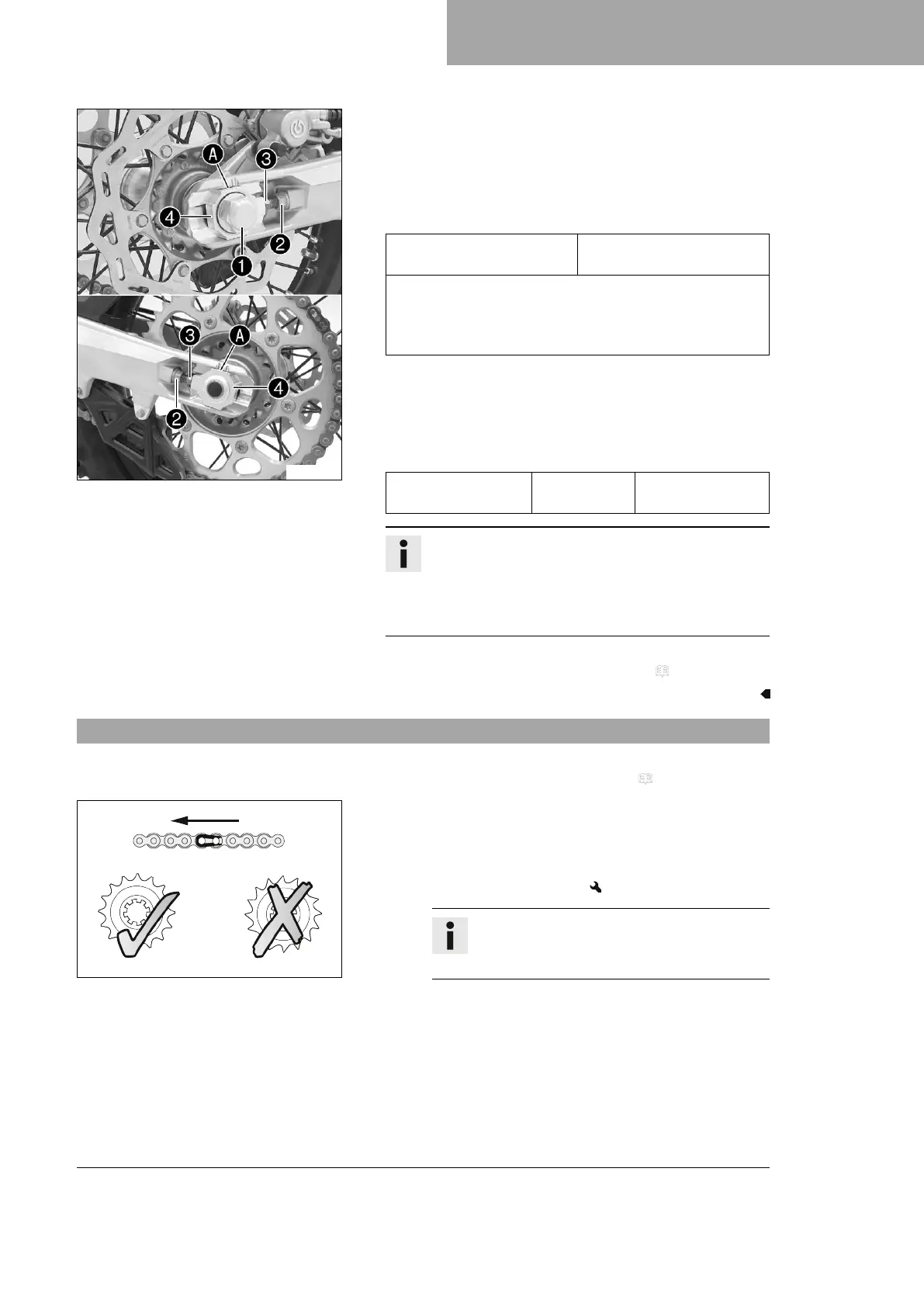

Adjust the chain tension by turning adjusting screws
3
left
and right.
Guideline
Chain tension 55 … 58 mm (2.17 …
2.28 in)
Turn adjusting screws
3
on the left and right so that the
markings on the left and right chain adjusters are in the
same position relative to reference marks
A
. The rear
wheel is then correctly aligned.
–
Tighten nuts
2
.
–
Make sure that chain adjusters
4
are fitted correctly on
adjusting screws
3
.
–
Tighten nut
1
.
Guideline
Nut, rear wheel spin-
dle
M20x1.5 80 Nm (59 lbf ft)
Info
The wide adjustment range of the chain adjusters
(32 mm (1.26 in)) enables different secondary ratios
with the same chain length.
Chain adjusters
4
can be turned by 180°.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 63)
12.39 Checking the chain, rear sprocket, engine sprocket, and chain guide
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 63)
400227-01
Main work
– Shift the transmission into neutral.
– Check the rear sprocket and engine sprocket for wear.
» If the rear sprocket and engine sprocket are worn:
–
Change the drivetrain kit.
Info
The engine sprocket, rear sprocket and chain
should always be replaced together.

KTM 500 EXC-F 2022 Specifications

General

Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XPLOR PDS shock absorber
Ground Clearance	355 mm
Seat Height	960 mm
ABS	No
Engine Type	Single-cylinder, 4-stroke
Fuel System	Keihin EFI, 42 mm throttle body
Front Brake	Disc brake
Rear Brake	Disc brake, 220 mm
Fuel Tank Capacity	8.5 liters
Weight (without fuel)	106.5 kg
Displacement	510.9 cm³
