KTM 500 EXC-F 2022 User Manual

ELECTRICAL SYSTEM 15
123
Info
Never remove cover
1
.
– Switch off the battery charger after charging and disconnect it
from the 12-V battery.
Finishing work
– Install the 12-V battery. ( p. 120)
– Mount the seat. ( p. 78)

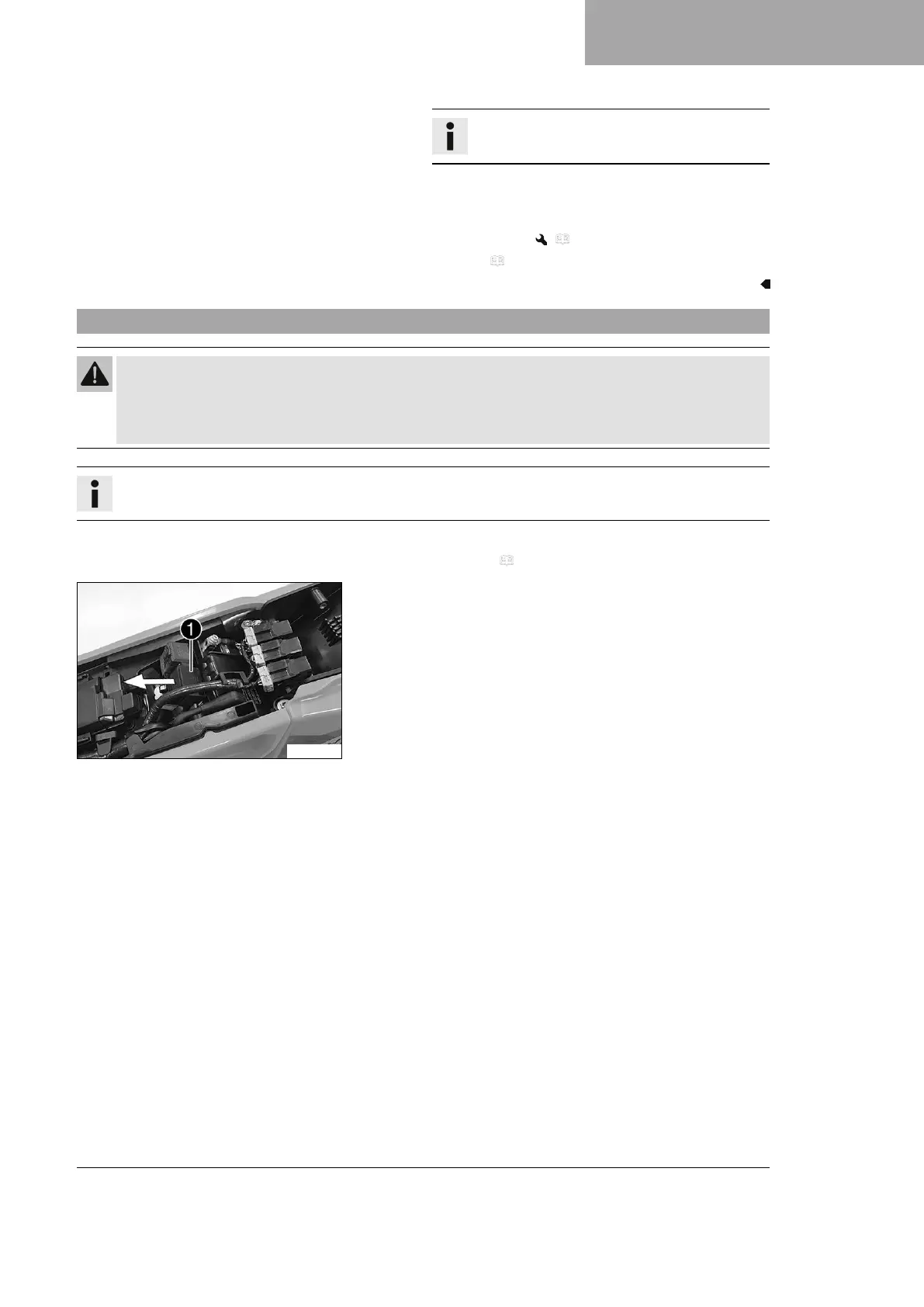

15.4 Changing main fuse
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
Info
The main fuse protects all electrical power consumers of the vehicle.
Preparatory work
– Remove the seat. ( p. 77)
V01776-11
Main work
–
Pull starter relay
1
from the holder.

KTM 500 EXC-F 2022 Specifications

General

Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XPLOR PDS shock absorber
Ground Clearance	355 mm
Seat Height	960 mm
ABS	No
Engine Type	Single-cylinder, 4-stroke
Fuel System	Keihin EFI, 42 mm throttle body
Front Brake	Disc brake
Rear Brake	Disc brake, 220 mm
Fuel Tank Capacity	8.5 liters
Weight (without fuel)	106.5 kg
Displacement	510.9 cm³
