SERVICE WORK ON THE CHASSIS 12
75
Info
The steering head bearing is cleaned and lubri-
cated in the course of removal and installation of
the lower triple clamp.

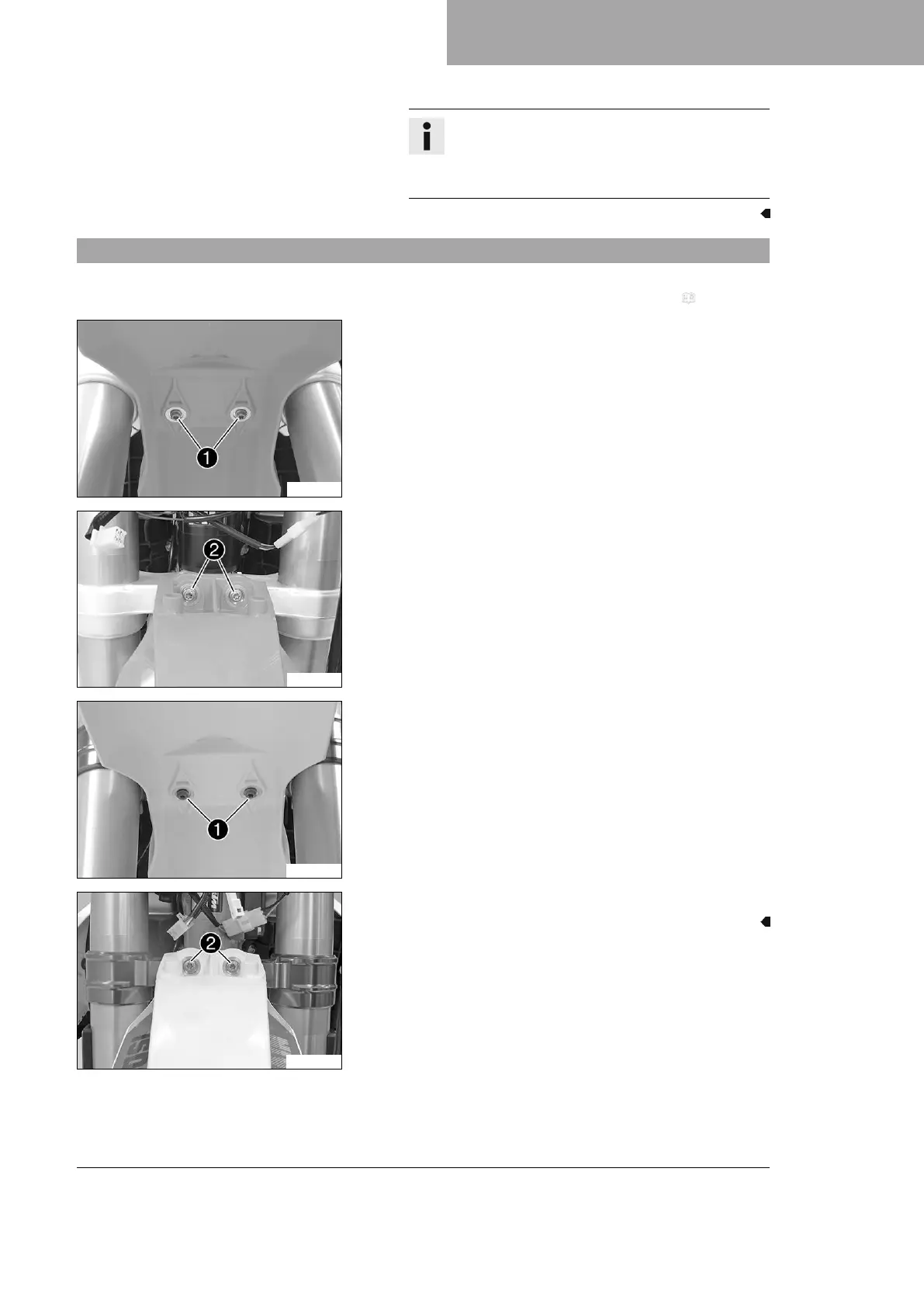

12.17 Removing front fender
Preparatory work
– Remove the headlight mask with the headlight. ( p. 125)
V00340-10
Main work
(EXC‑F EU, XCF‑W)
–
Remove screws
1
.
V00341-10
–
Remove screws
2
. Take off front fender.
K00576-10
(EXC‑F SIX DAYS EU)
–
Remove screws
1
.
S01321-10
–
Remove screws
2
. Take off front fender.

KTM 500 EXC-F 2022 Specifications

General

Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XPLOR PDS shock absorber
Ground Clearance	355 mm
Seat Height	960 mm
ABS	No
Engine Type	Single-cylinder, 4-stroke
Fuel System	Keihin EFI, 42 mm throttle body
Front Brake	Disc brake
Rear Brake	Disc brake, 220 mm
Fuel Tank Capacity	8.5 liters
Weight (without fuel)	106.5 kg
Displacement	510.9 cm³
