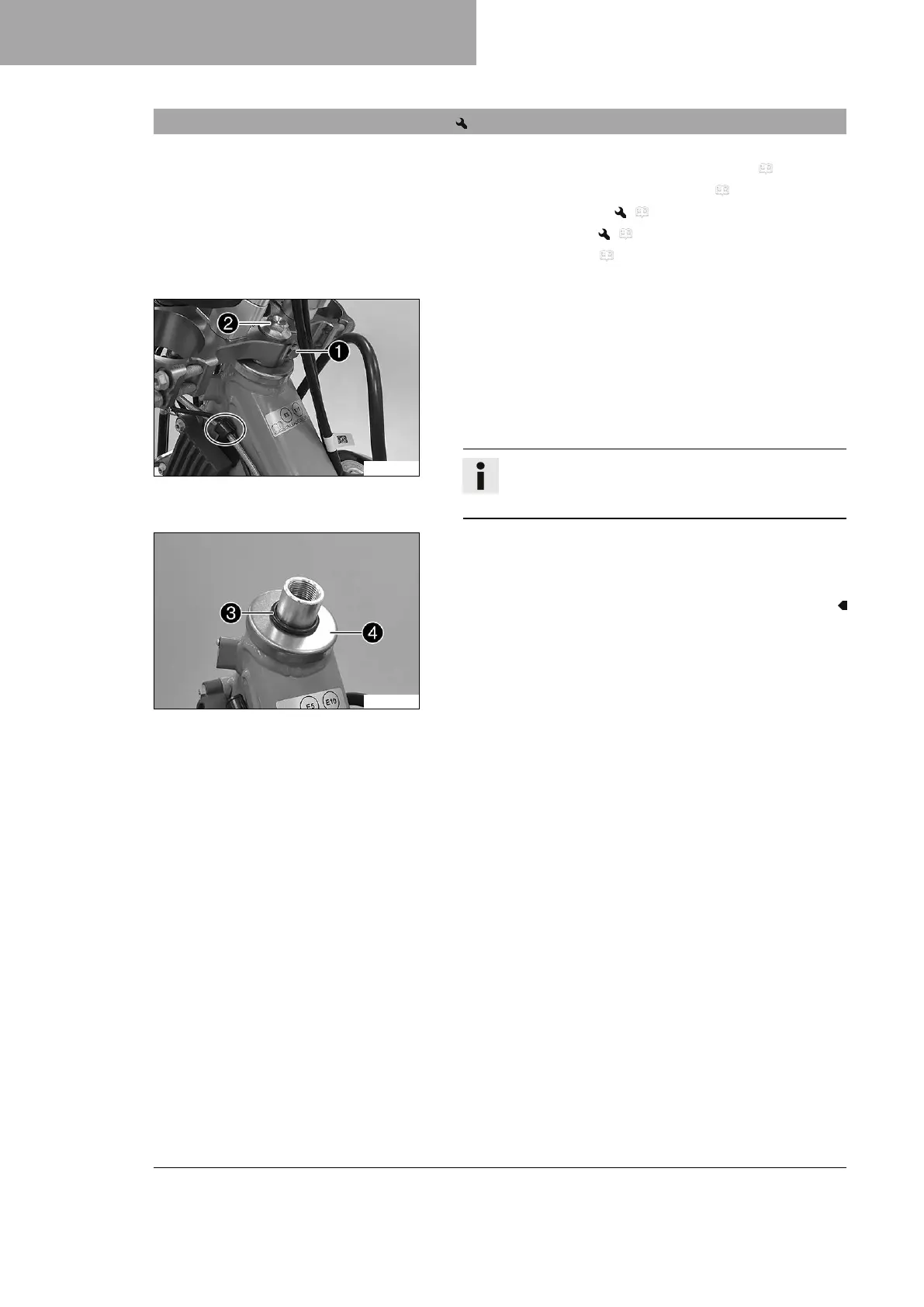

12 SERVICE WORK ON THE CHASSIS
68
12.10 Removing the lower triple clamp (EXC‑F SIX DAYS EU)
Preparatory work
– Remove the headlight mask with the headlight. ( p. 125)
– Raise the motorcycle with the lift stand. ( p. 63)
– Remove the front wheel. ( p. 113)
– Remove the fork legs. ( p. 65)
– Remove front fender. ( p. 75)
– Remove the handlebar cushion.
V01787-10
Main work
–
Open the cable holder in front of the left radiator and detach
the wiring harness.
–
Remove screw
1
.
–
Remove screw
2
.
– Take off the upper triple clamp with the handlebar and hang
them to the side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
V01788-10
–
Remove O-ring
3
and protective ring
4
.
– Take off the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.

KTM 500 EXC-F 2022 Specifications

General

Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XPLOR PDS shock absorber
Ground Clearance	355 mm
Seat Height	960 mm
ABS	No
Engine Type	Single-cylinder, 4-stroke
Fuel System	Keihin EFI, 42 mm throttle body
Front Brake	Disc brake
Rear Brake	Disc brake, 220 mm
Fuel Tank Capacity	8.5 liters
Weight (without fuel)	106.5 kg
Displacement	510.9 cm³
