KTM 500 EXC-F 2022 User Manual

ELECTRICAL SYSTEM 15
125
(XCF‑W)
Fuse 1 – 10 A – EFI control unit, lambda sensor, combi-
nation instrument, combination switch (optional), elec-
tronic fuel injection, diagnostics connector, fuel vapor
retention system, fuse 4
Fuse 2 - 10 A - low beam, position light, tail light
Fuse 3 - 10 A - radiator fan
Fuse 4 - 5 A - fuel pump
Fuses res - 10 A - spare fuse
Info
A faulty fuse has a burned-out fuse wire
A
.
Warning
Fire hazard Incorrect fuses overload the electrical sys-
tem.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert the spare fuse with the correct rating.
Fuse (75011088010) ( p. 160)
Fuse (75011088005) ( p. 160)
Tip
Put a spare fuse in the fuse box so that it is available if
needed.
– Check the function of the electrical power consumer.
– Close the fuse box cover.
Finishing work
– Mount the seat. ( p. 78)

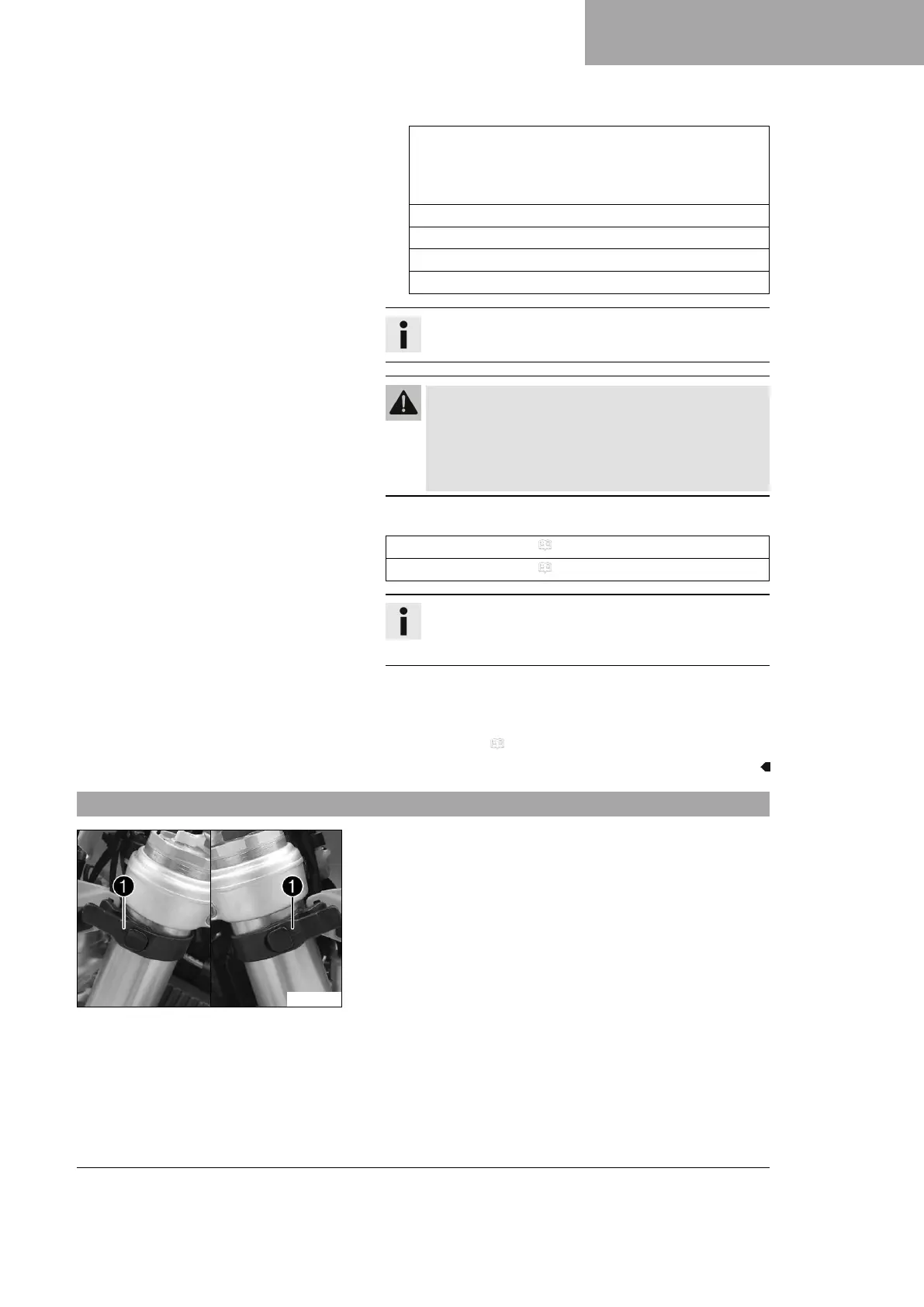

15.6 Removing the headlight mask with the headlight
V01782-10
– Detach the brake line and wiring harness from the headlight
mask.
–
Loosen rubber straps
1
. Slide the headlight mask up and
swing it forward.

KTM 500 EXC-F 2022 Specifications

General

Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XPLOR PDS shock absorber
Ground Clearance	355 mm
Seat Height	960 mm
ABS	No
Engine Type	Single-cylinder, 4-stroke
Fuel System	Keihin EFI, 42 mm throttle body
Front Brake	Disc brake
Rear Brake	Disc brake, 220 mm
Fuel Tank Capacity	8.5 liters
Weight (without fuel)	106.5 kg
Displacement	510.9 cm³
