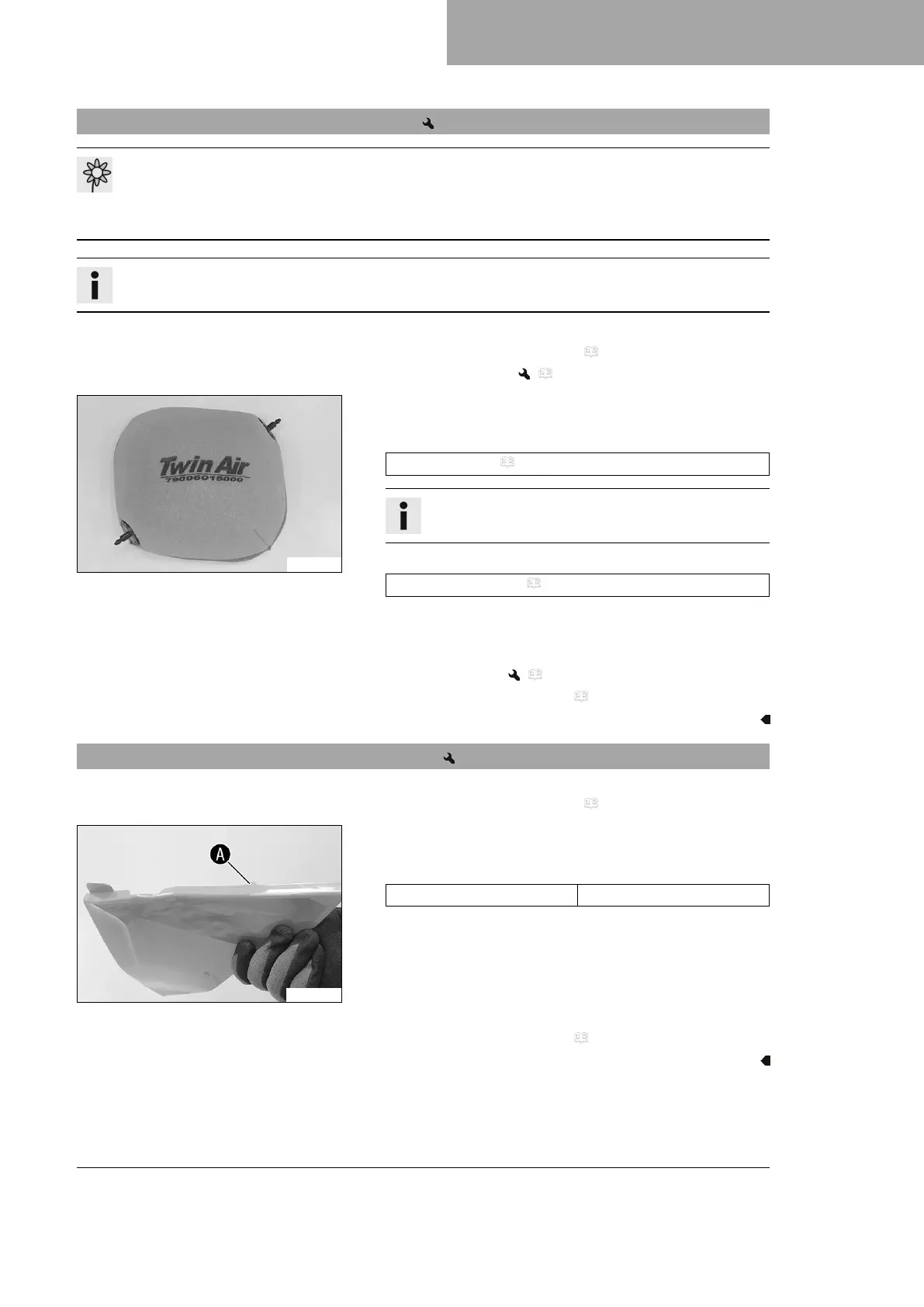

12.27 Cleaning the air filter and air filter box
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Do not clean the air filter with fuel or petroleum since these substances attack the foam.
Preparatory work
– Remove the air filter box cover. ( p. 78)
– Remove the air filter. ( p. 80)
F01027-01
Main work
– Wash the air filter thoroughly in special cleaning liquid and
allow it to dry properly.
Air filter cleaner ( p. 166)
Info
Only press the air filter to dry it, never wring it out.
–
Oil the dry air filter with a high-grade air filter oil.
Oil for foam air filter ( p. 166)
– Clean the air filter box.
– Check the intake flange for damage and looseness.
Finishing work
– Install the air filter. ( p. 80)
– Install the air filter box cover. ( p. 79)
12.28 Preparing air filter box cover for securing
Preparatory work
– Remove the air filter box cover. ( p. 78)
S03499-10
Main work
–
Drill a hole at marking
A
.
Guideline
Diameter 6 mm (0.24 in)
Finishing work
– Install the air filter box cover. ( p. 79)

KTM 500 EXC-F 2022 Specifications

General

Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XPLOR PDS shock absorber
Ground Clearance	355 mm
Seat Height	960 mm
ABS	No
Engine Type	Single-cylinder, 4-stroke
Fuel System	Keihin EFI, 42 mm throttle body
Front Brake	Disc brake
Rear Brake	Disc brake, 220 mm
Fuel Tank Capacity	8.5 liters
Weight (without fuel)	106.5 kg
Displacement	510.9 cm³
