KTM 500 EXC-F 2022 User Manual

15 ELECTRICAL SYSTEM
124
V01781-10
–

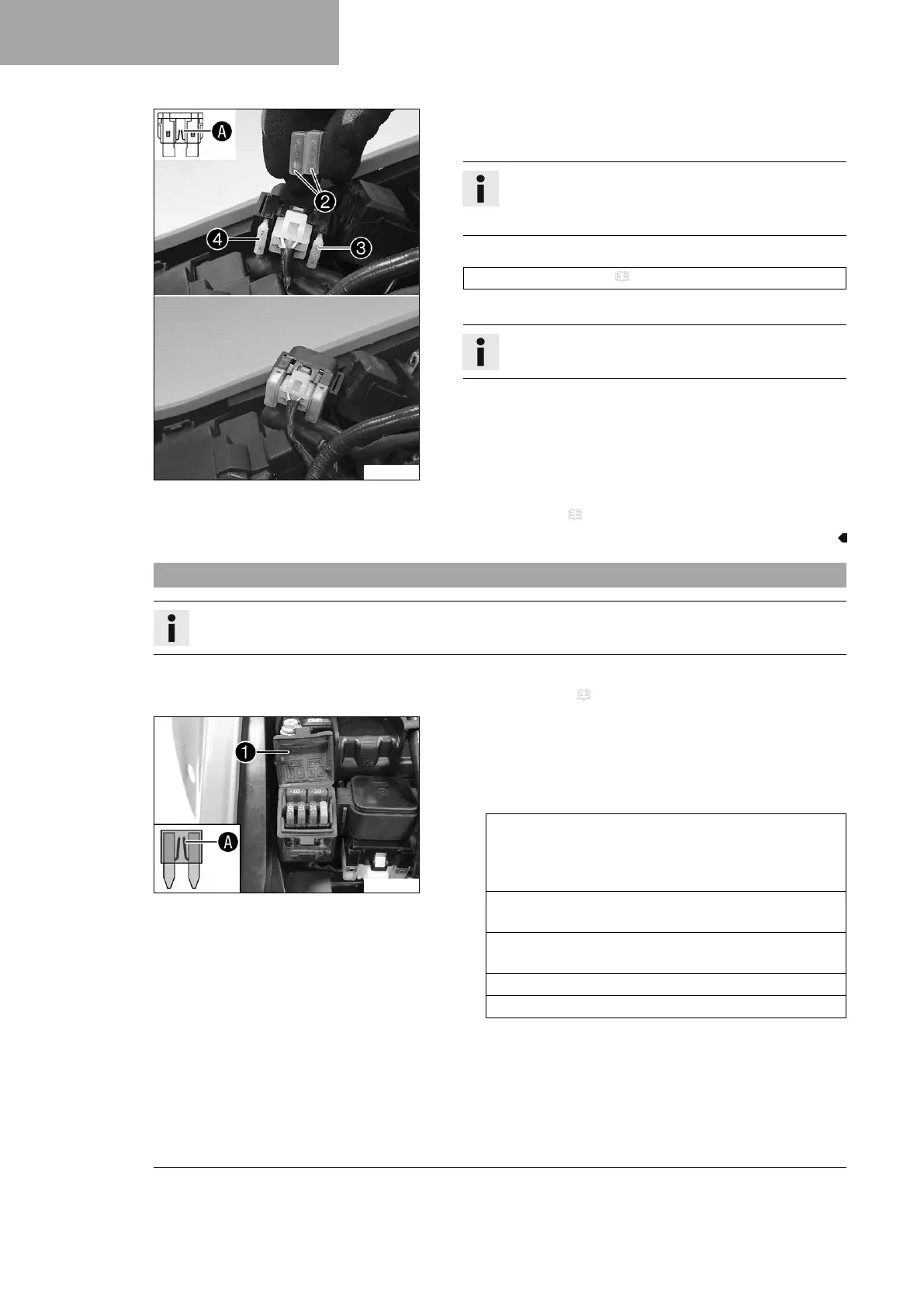

Take off protection caps
2
.
–
Remove faulty main fuse
3
.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
4
is located in the starter relay.
– Insert a new main fuse.
Fuse (58011109120) ( p. 160)
– Check that the electrical system is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
– Mount the starter relay onto the holder and route the cable.
– Mount the protection caps.
Finishing work
– Mount the seat. ( p. 78)
15.5 Changing the fuses of individual electrical power consumers
Info
The fuse box containing the fuses of individual electrical power consumers is located under the seat.
Preparatory work
– Remove the seat. ( p. 77)
V01801-10
Main work
–
Open fuse box cover
1
.
– Remove the faulty fuse.
Guideline
(All EU models)
Fuse 1 – 10 A – EFI control unit, lambda sensor, combi-
nation instrument, combination switch (optional), elec-
tronic fuel injection, diagnostics connector, fuel vapor
retention system, fuse 4
Fuse 2 ‑ 10 A ‑ high beam, low beam, position light, tail
light, license plate lamp
Fuse 3 - 10 A - radiator fan, horn, brake light, turn sig-
nal
Fuse 4 - 5 A - fuel pump
Fuses res - 10 A - spare fuse

KTM 500 EXC-F 2022 Specifications

General

Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XPLOR PDS shock absorber
Ground Clearance	355 mm
Seat Height	960 mm
ABS	No
Engine Type	Single-cylinder, 4-stroke
Fuel System	Keihin EFI, 42 mm throttle body
Front Brake	Disc brake
Rear Brake	Disc brake, 220 mm
Fuel Tank Capacity	8.5 liters
Weight (without fuel)	106.5 kg
Displacement	510.9 cm³
