KTM 500 EXC-F 2022 User Manual

15 ELECTRICAL SYSTEM
126
S01328-10
(All EU models)
–

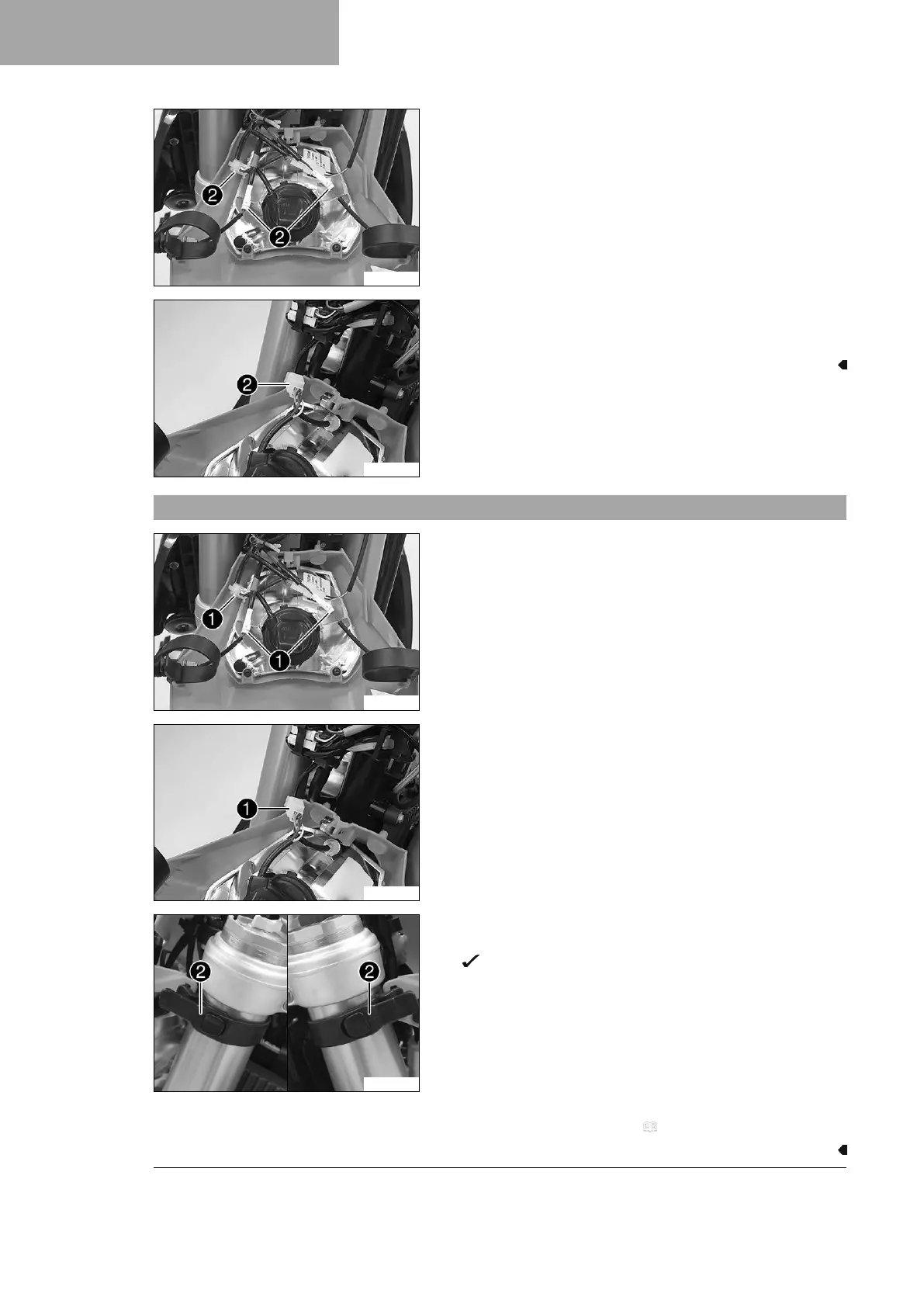

Detach plug-in connectors
2
and take off the headlight
mask with the headlight.
V01802-10
(XCF‑W)
–
Disconnect plug-in connector
2
and take off the head-
light mask together with the headlight.
15.7 Installing the headlight mask with the headlight
S01328-11
Main work
(All EU models)
–
Join plug-in connectors
1
.
V01802-11
(XCF‑W)
–
Join plug-in connector
1
.
V01782-11
– Position the headlight mask and secure it with rubber
straps
2
.
The holding lugs engage in the fender.
– Position the brake line and wiring harness in the brake line
guide.
Finishing work
– Check the headlight setting. ( p. 127)

KTM 500 EXC-F 2022 Specifications

General

Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XPLOR PDS shock absorber
Ground Clearance	355 mm
Seat Height	960 mm
ABS	No
Engine Type	Single-cylinder, 4-stroke
Fuel System	Keihin EFI, 42 mm throttle body
Front Brake	Disc brake
Rear Brake	Disc brake, 220 mm
Fuel Tank Capacity	8.5 liters
Weight (without fuel)	106.5 kg
Displacement	510.9 cm³
