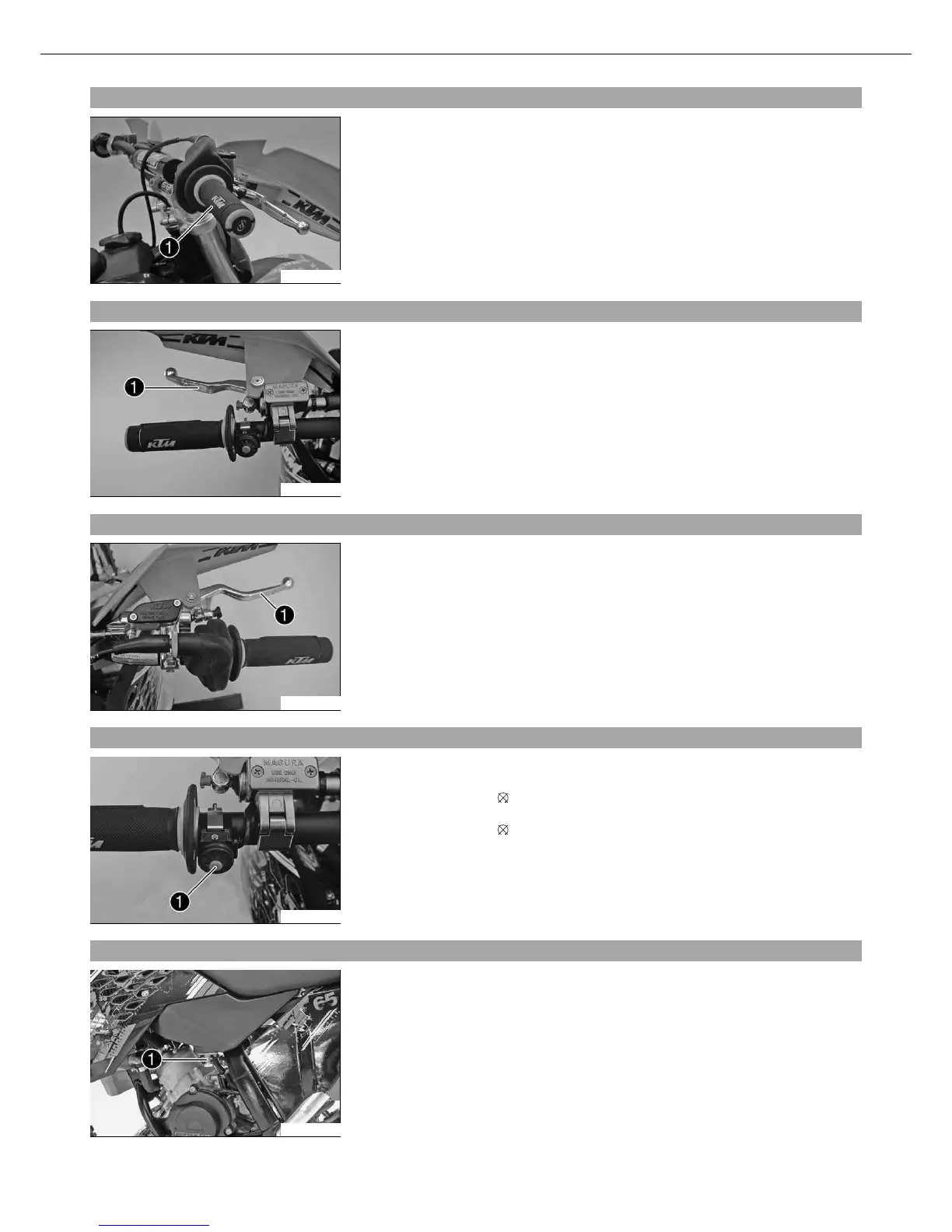

CONTROLS 10
5.1Throttle grip
700408-01
Trottle grip is fitted on the right side of the handlebar.
5.2Clutch lever
700393-10
The clutch lever is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
5.3Hand brake lever
700394-01
Hand brake lever is fitted on the right side of the handlebar.
The hand brake lever is used to activate the front brake.
5.4Short circuit button
700395-01
Short circuit button is fitted on the left side of the handlebar.
Possible states
• Short circuit button in basic position – In this position, the ignition circuit is
closed, and the engine can be started.
• Short circuit button pressed – In this position, the ignition circuit is interrupted,
a running engine stops, and a non-running engine will not start.
5.5Fuel tap
700407-01
Fuel tap is on the left of the fuel tank.
Possible states
• Fuel tap is closed – The knurled screw is turned all the way clockwise. Fuel cannot
flow out of the fuel tank.
• Fuel tap is open – The knurled screw is turned all the way counterclockwise. Fuel
can flow out of the fuel tank.
