KTM 690 Duke 2017 User Manual

13 BRAKE SYSTEM 102
Warning
Danger of accidents Old brake fluid reduces the braking effect.
– Make sure that brake fluid for the front and rear brake is changed in accordance with the service schedule. (Your authorized
KTM workshop will be glad to help.)
K00358-10
(Duke)

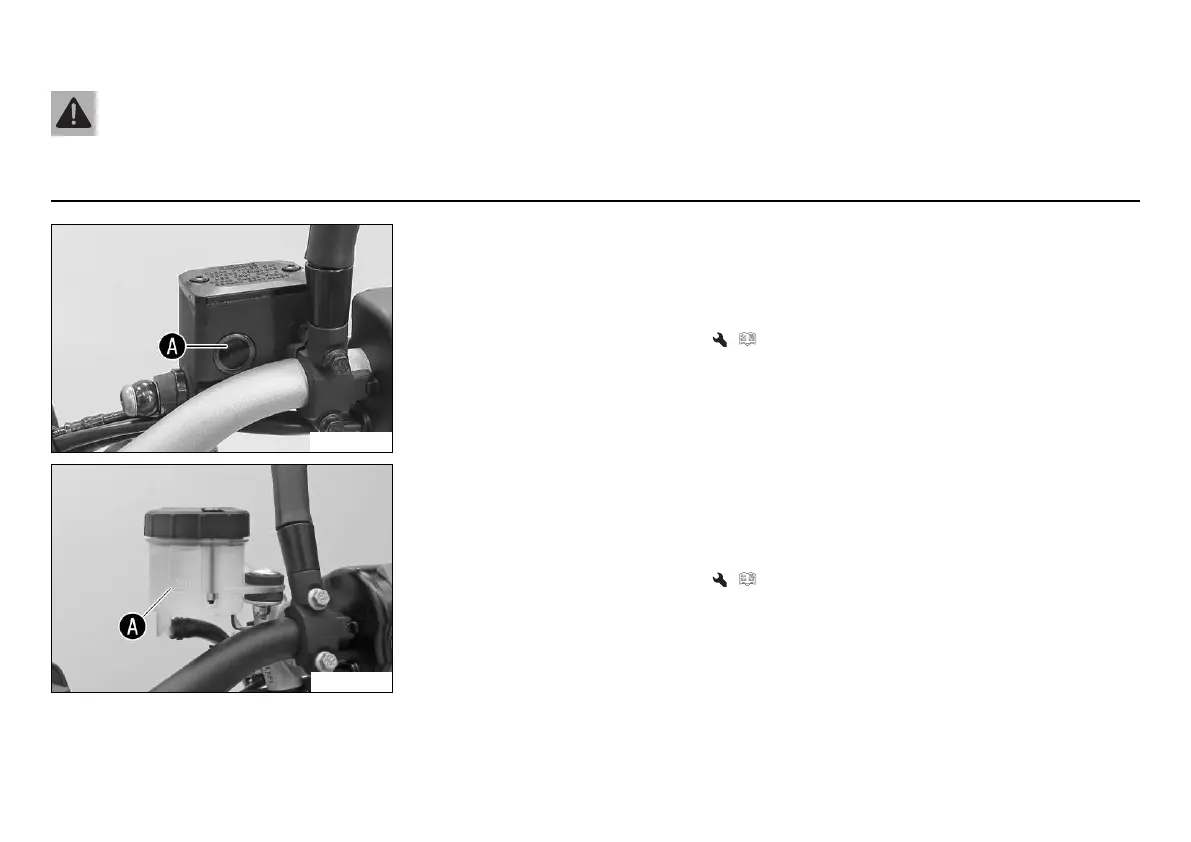

– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
– Check the brake fluid level in the viewer.
»
If the brake fluid has dropped below marking
A
:
– Add front brake fluid. ( p. 103)
602575-10
(Duke R)
– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
– Check the brake fluid level in the viewer.
»
If the brake fluid has dropped below marking
A
:
– Add front brake fluid. ( p. 103)

KTM 690 Duke 2017 Specifications

General

Displacement	690 cc
Compression Ratio	12.7:1
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Lubrication	Forced oil lubrication with 2 oil pumps
Front Suspension	WP upside-down Ø 43 mm
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	835 mm
Ground Clearance	192 mm
Wheelbase	1, 466 mm
Fuel Capacity	14 liters
Dry Weight	148.5 kg
Engine Type	Single-cylinder, 4-stroke
Torque	74 Nm @ 6, 500 rpm
Frame	Chromium-Molybdenum steel trellis frame
Rear Suspension	WP monoshock
Front Brake	Brembo four-piston radial fixed caliper, 320 mm disc
Rear Brake	Single 240 mm disc, Brembo single-piston caliper
ABS	Bosch 9M+ two-channel ABS (disengageable)
