KTM 690 Duke 2017 User Manual

14 WHEELS, TIRES 114
14.1 Removing the front wheel

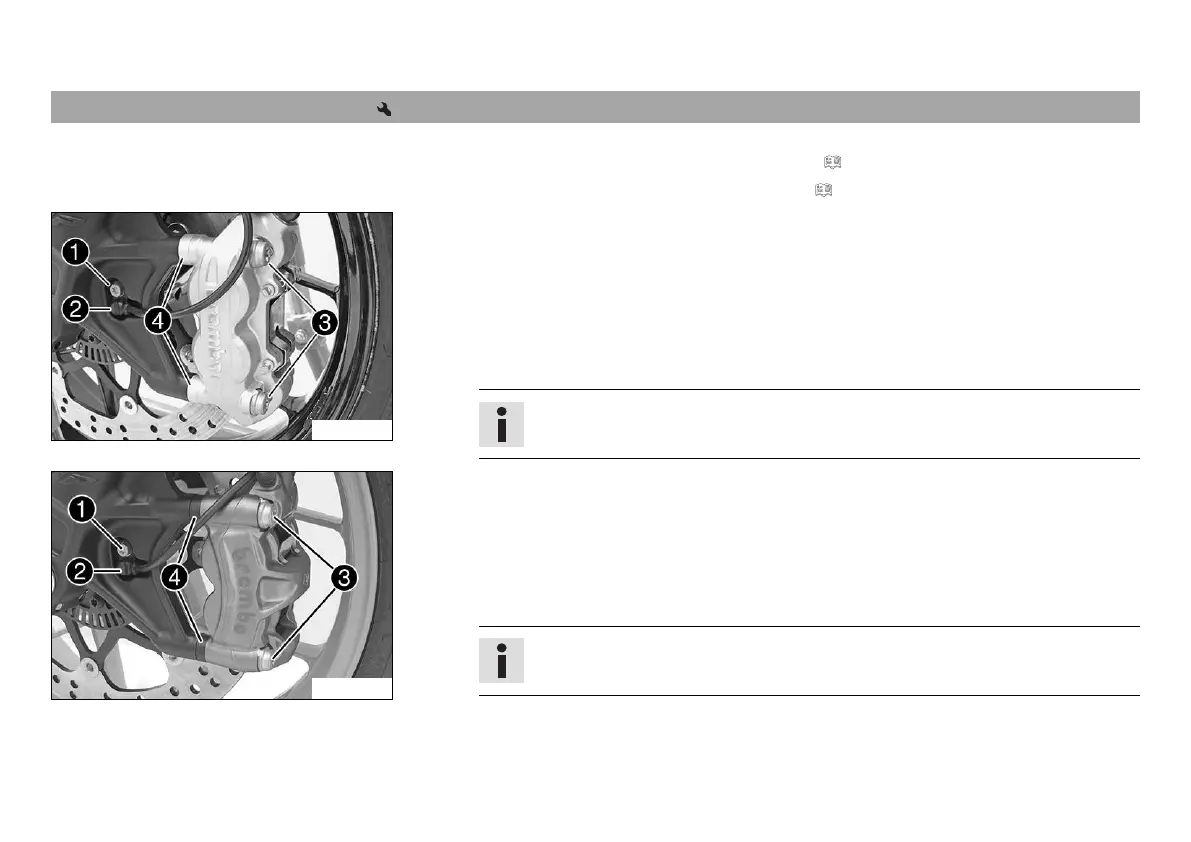

Preparatory work
– Raise the motorcycle with the rear lifting gear. ( p. 83)
– Lift the motorcycle with the front lifting gear. ( p. 84)
V00566-10
Main work
(Duke)
–
Remove screw
1
and pull wheel speed sensor
2
out of the hole.
–
Remove screws
3
and spacers
4
.
– Press back the brake linings with a light lateral tilting of the brake caliper on the
brake disc. Pull the brake caliper carefully back from the brake disc and hang it to
one side.
Info
Do not pull the hand brake lever while the brake caliper is removed.
V00056-10
(Duke R)
–
Remove screw
1
and pull wheel speed sensor
2
out of the hole.
–
Remove screws
3
and spacers
4
.
– Press back the brake linings with a light lateral tilting of the brake caliper on the
brake disc. Pull the brake caliper carefully back from the brake disc and hang it to
one side.
Info
Do not pull the hand brake lever while the brake caliper is removed.
